Torque Rod: Service and Repair

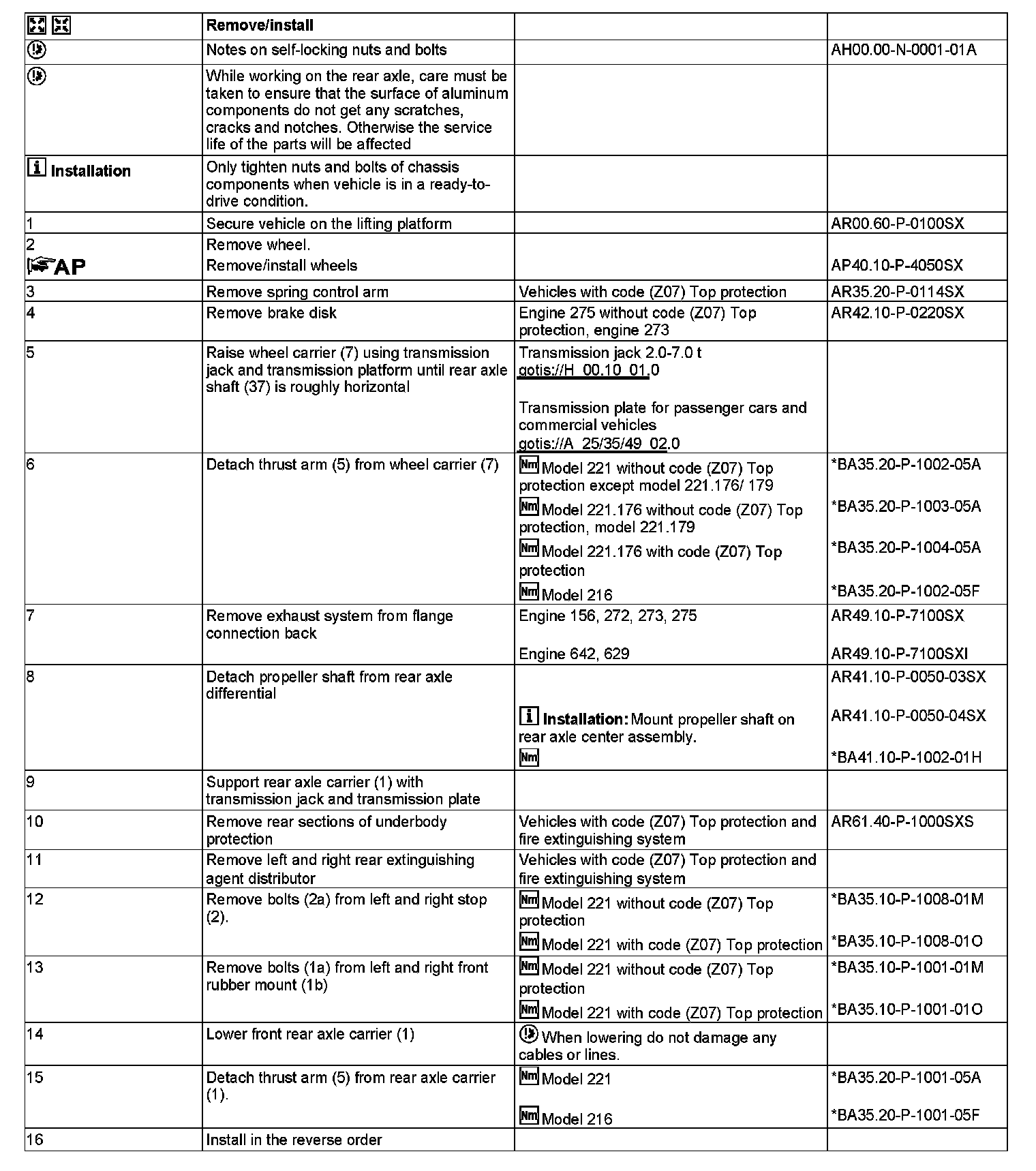

AR35.20-P-0113SX Remove/Install Thrust Arm
MODEL 221, 216

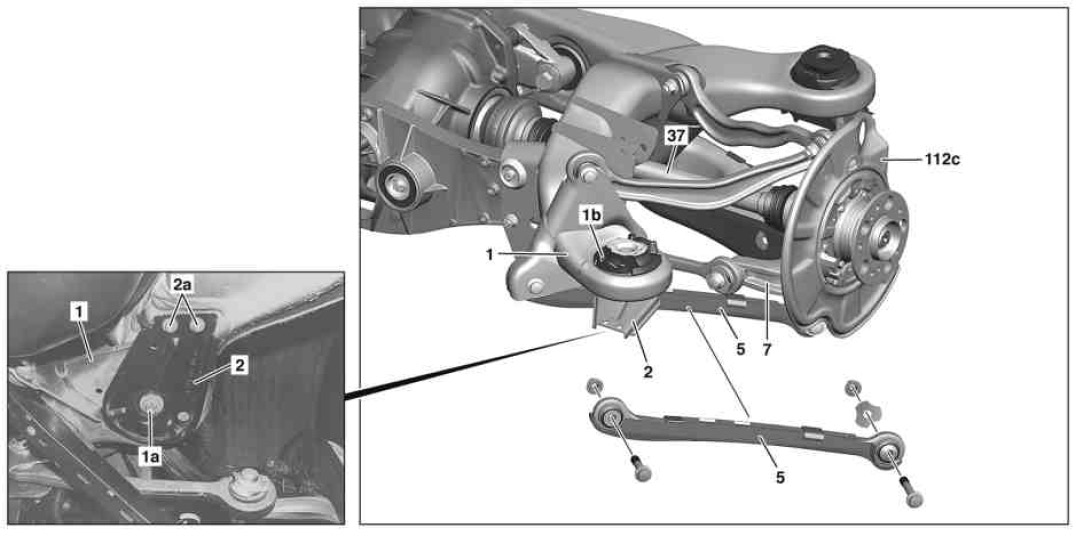

1 Rear axle carrier
1a Screw
1b Front rubber mount
2 End stop
2a Bolts
5 Thrust arm
7 Wheel carrier
37 Rear axle shaft
