AR35.00-P-2000A Locate Noises From Rear Axle
AR35.00-P-2000A Locate Noises From Rear Axle
AR35.00-P-2000A Locate noises from rear axle

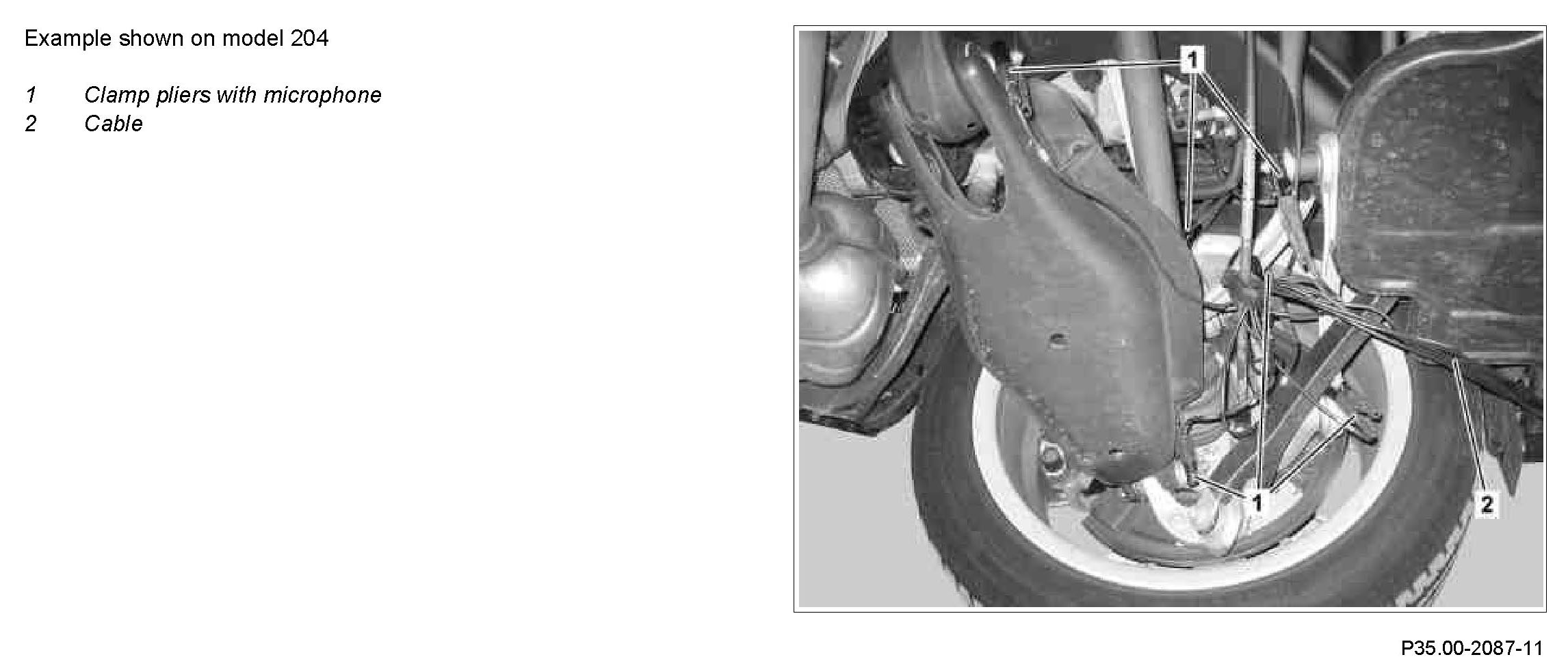

Component Identification:

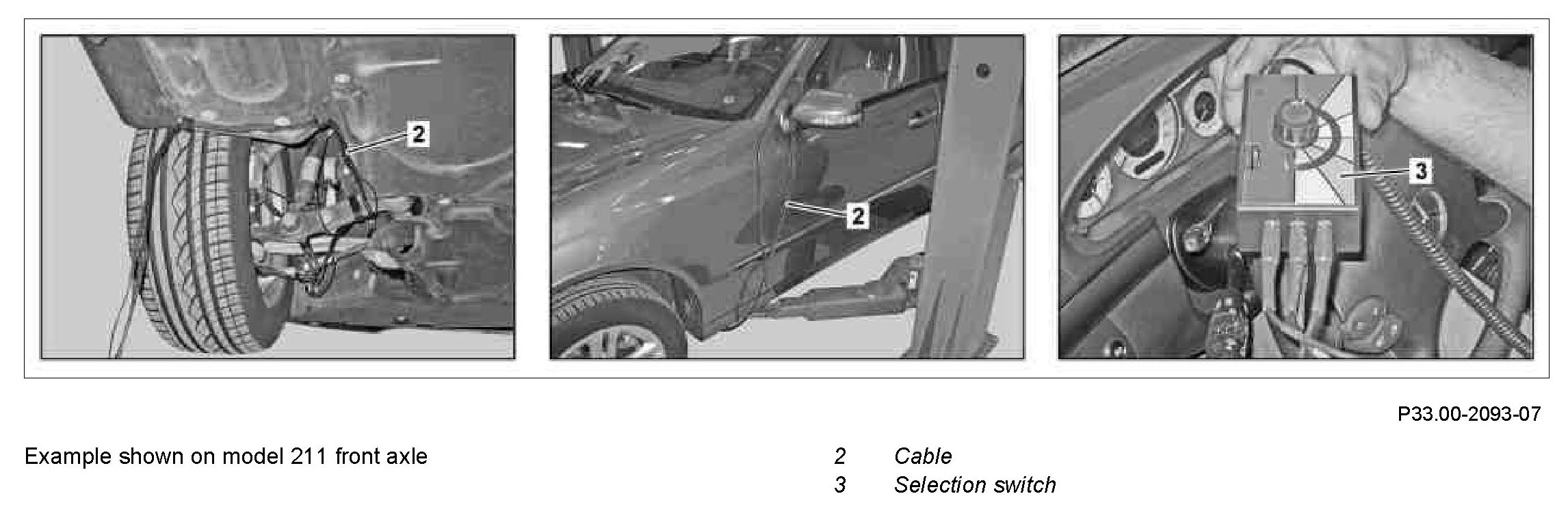

Component Identification:

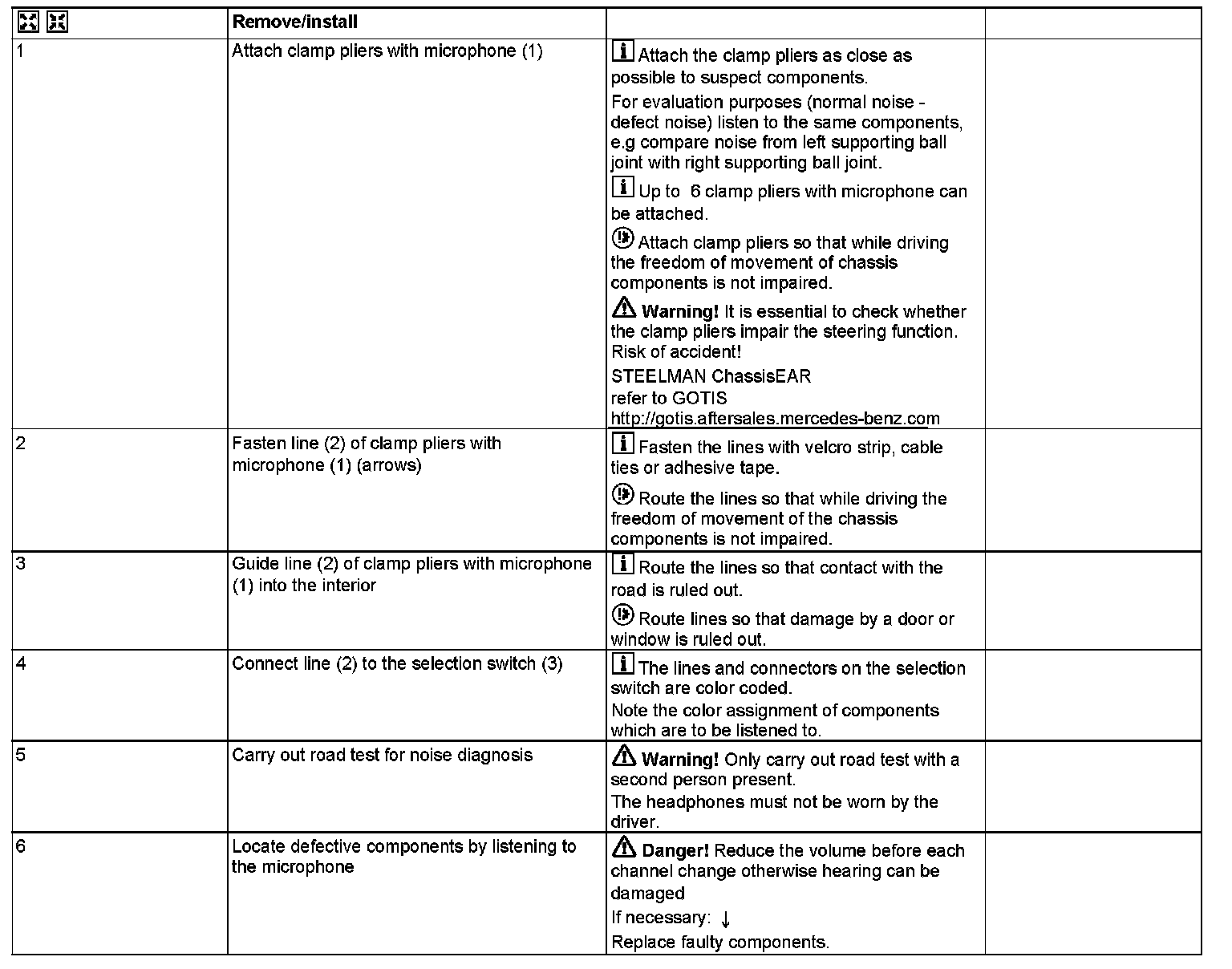

Steps 1-6:
