AR32.25-P-1017SYZ Remove/Install the Suspension Strut

AR32.25-P-1017SYZ Remove/Install The Suspension Strut
MODEL 221, 216 with 4MATIC

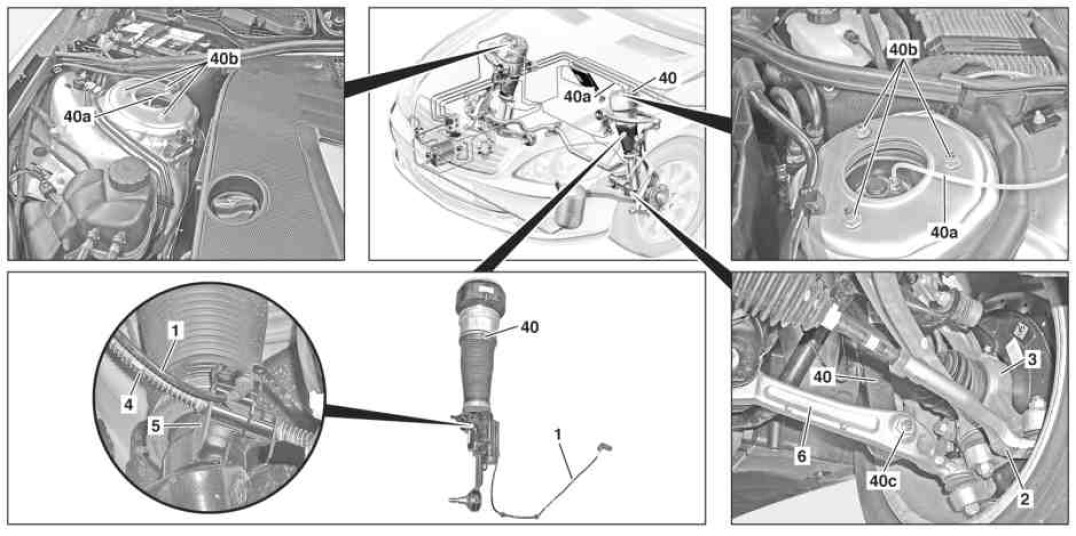

1 Electrical line
2 Tie rod
3 Steering knuckle
4 Brake hose
5 Bracket
6 Spring control arm
40 Suspension strut
40a Pressure line
40b Nuts
40c Nut

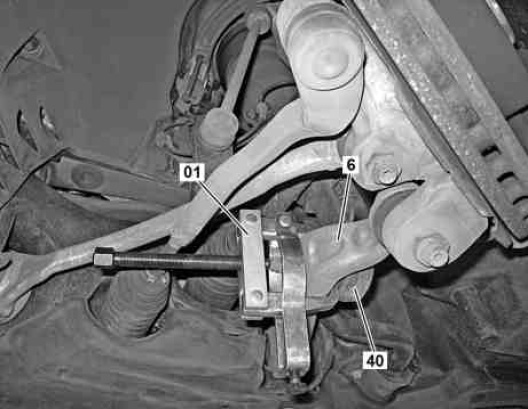

01 Puller
6 Spring control arm
40 Suspension strut

















123 589 08 33 00
Puller





000 589 12 28 00
Slitting knife





211 589 00 09 00
Wrench socket
