AR32.25-P-1017SY Remove/Install The Suspension Strut



AR32.25-P-1017SY Remove/install the suspension strut
- with CODE (487) Active Body Control (ABC)

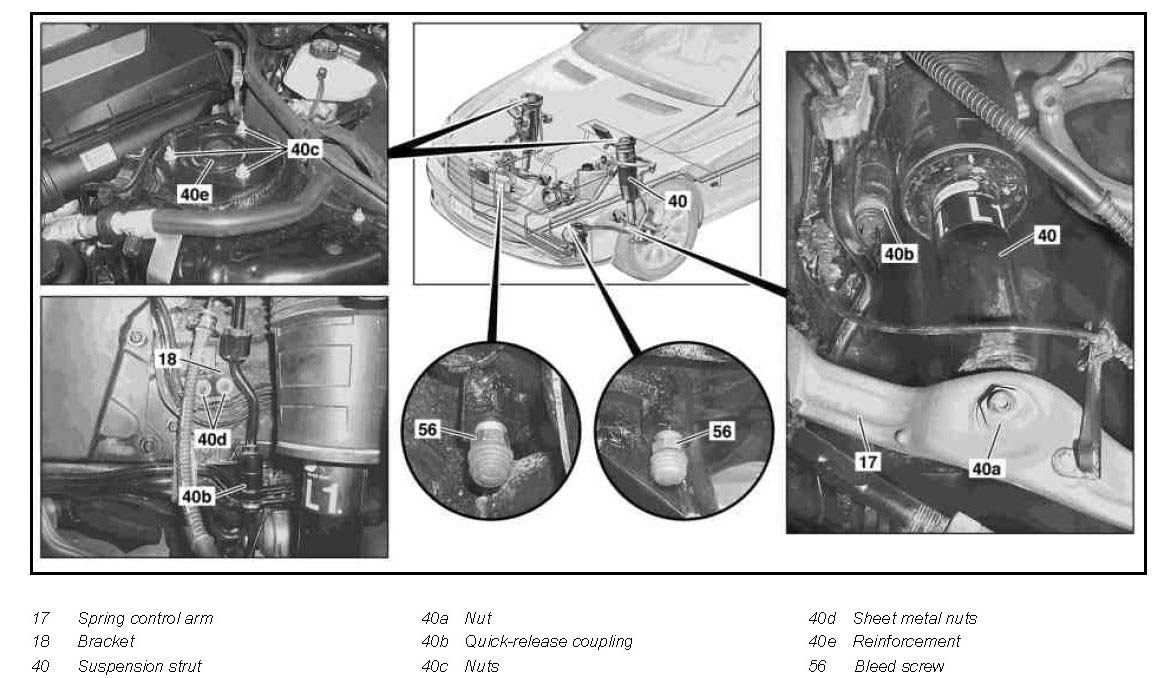

Component Identification:

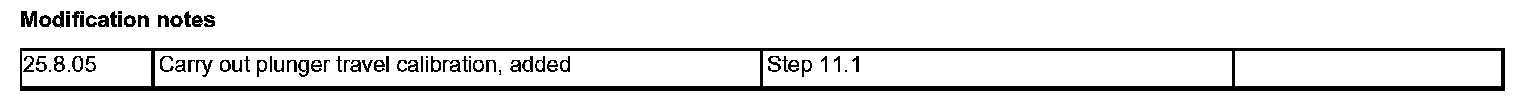

Modification notes:

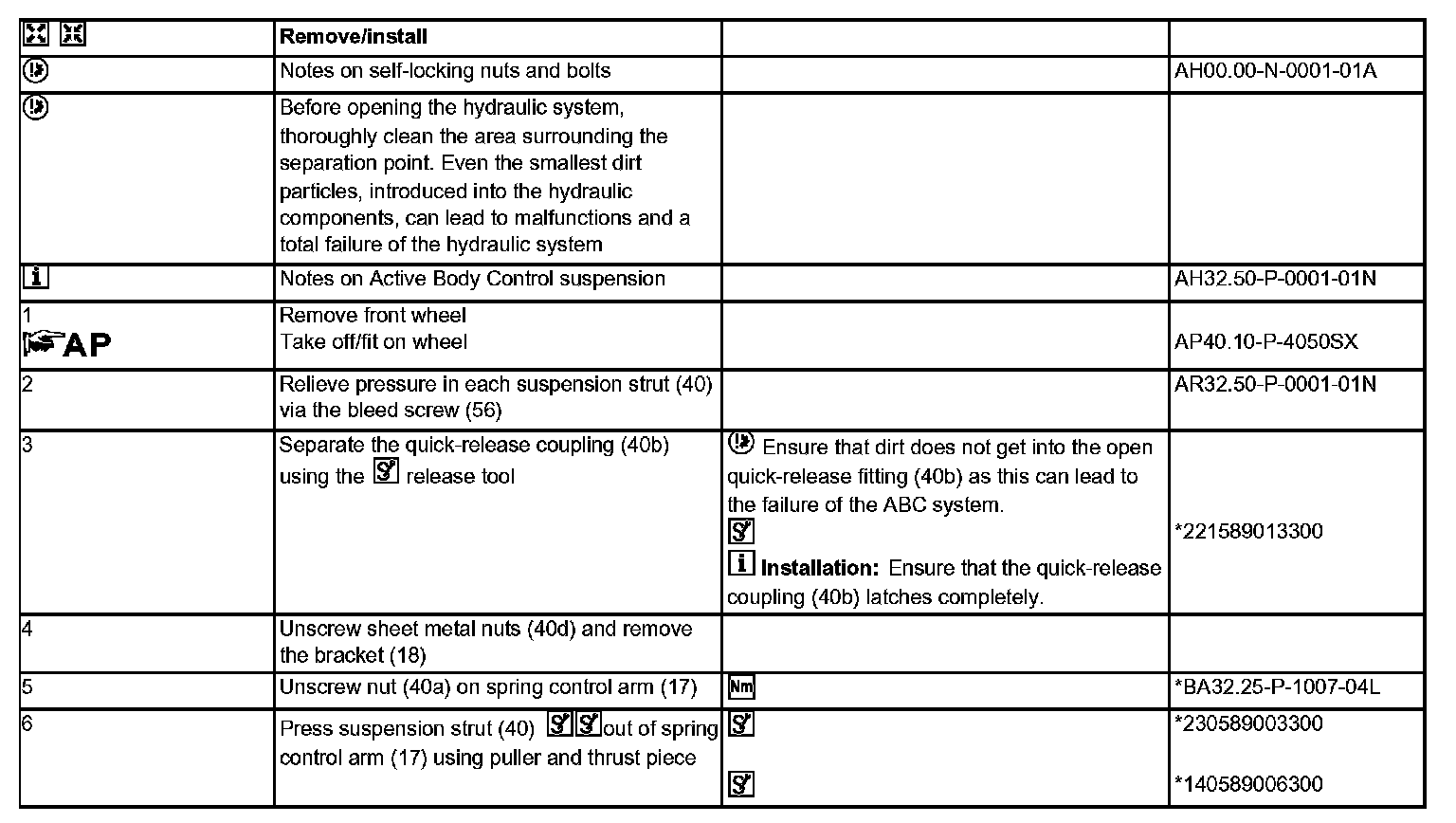

Remove/install Steps 1-6:

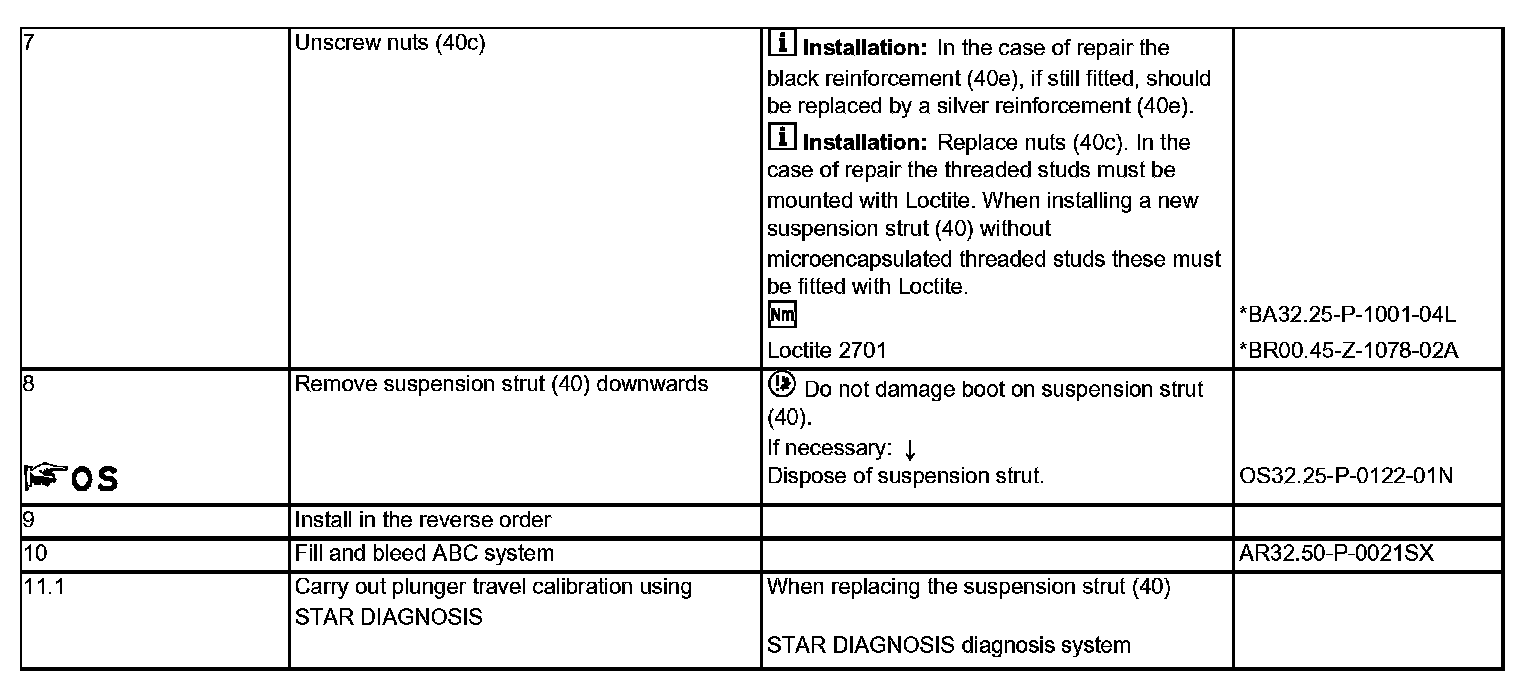

Remove/install Steps 7-11.1:

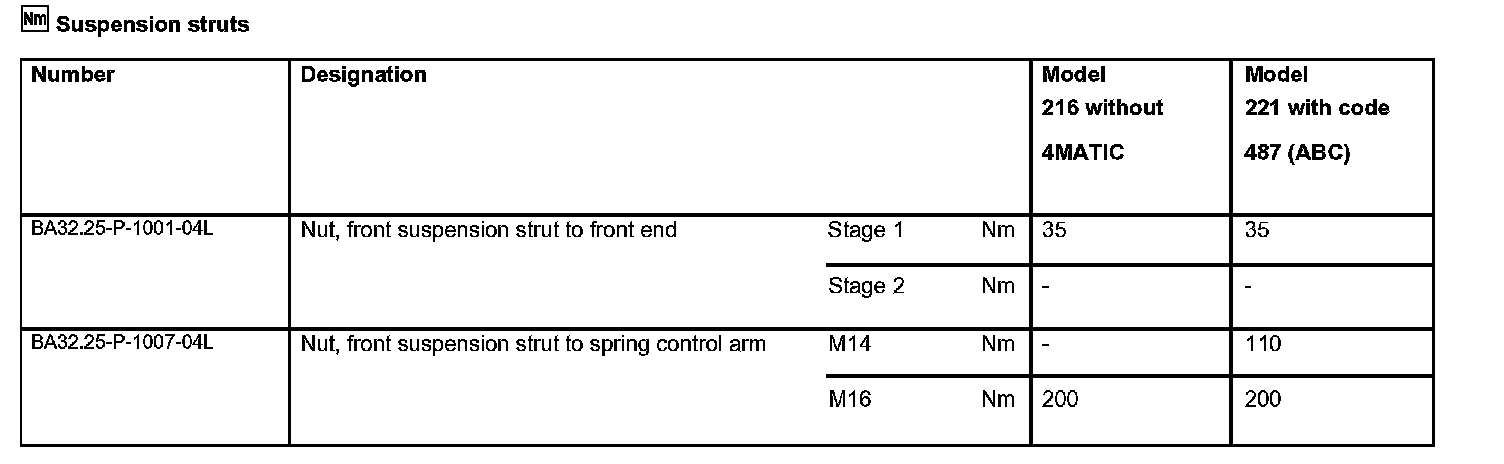

Suspension struts:

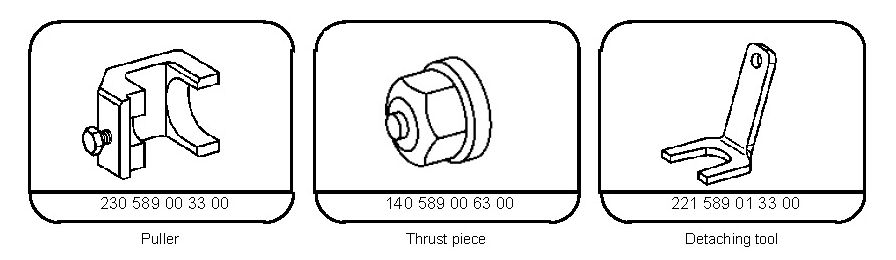

Special Tools:

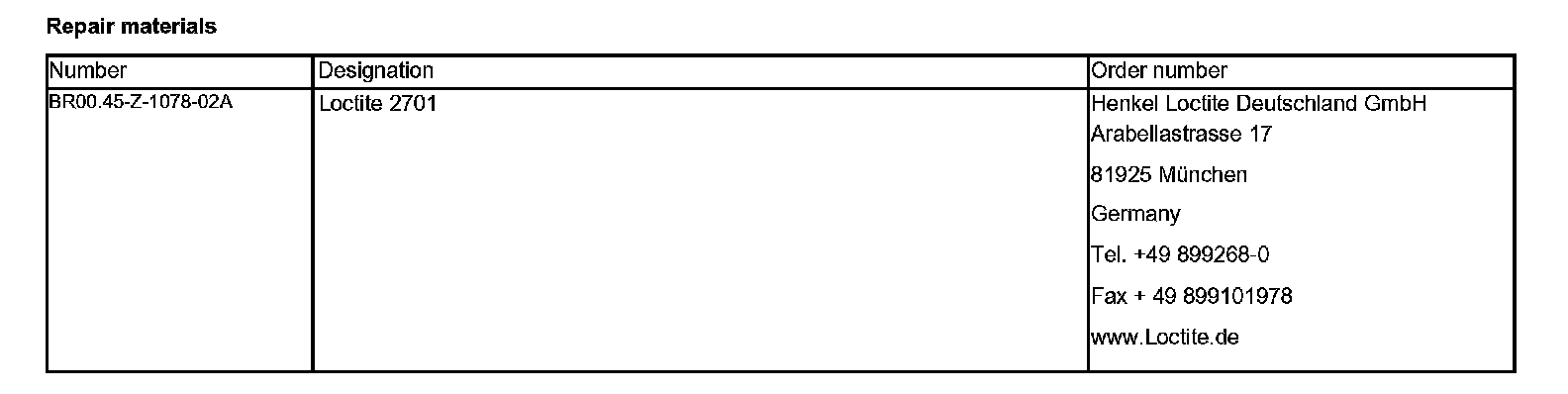

Repair materials:
