AR32.25-P-1016SY Remove/Install Rear Suspension Strut

AR32.25-P-1016SY Remove/Install Rear Suspension Strut
MODEL 216, 221.0 /1
- with CODE (487) Active Body Control (ABC)

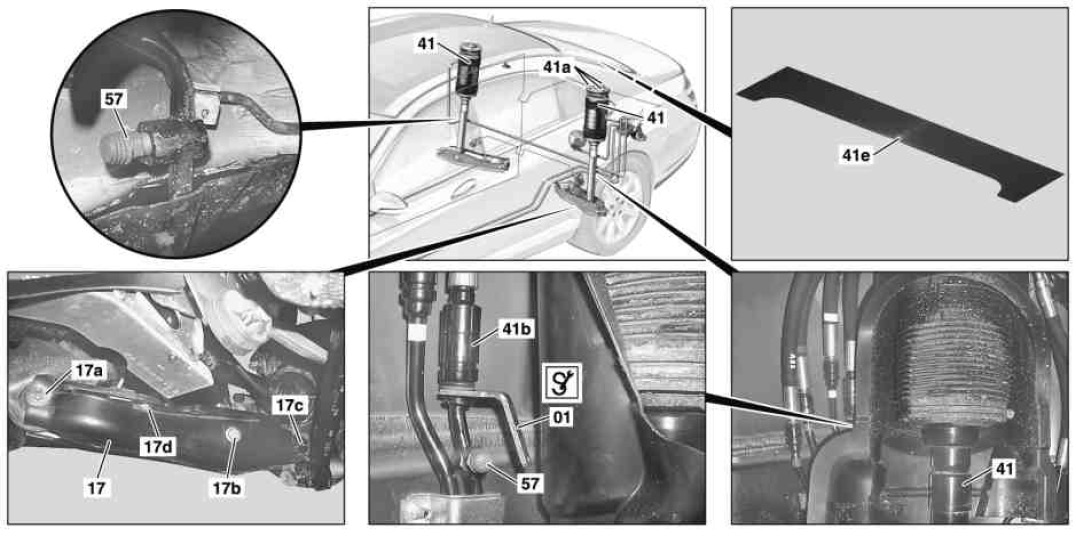

01 Detaching tool
17 Spring control arm
17a Nut
17b Screw
17c Screw
17d Nut
41 Suspension strut
41 A Nuts
41b Quick-release coupling
41e Cover
57 Bleed screw


























221 589 01 33 00
Detaching tool
