AR32.25-P-1016SX Remove/Install Rear Suspension Strut

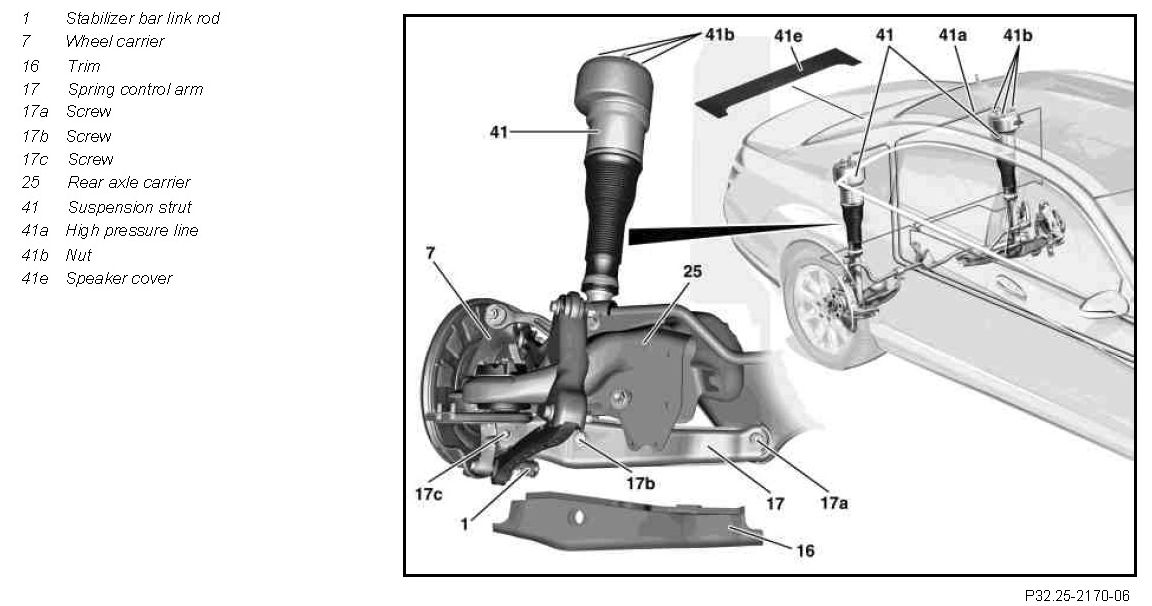

Component Identification:

Modification notes:

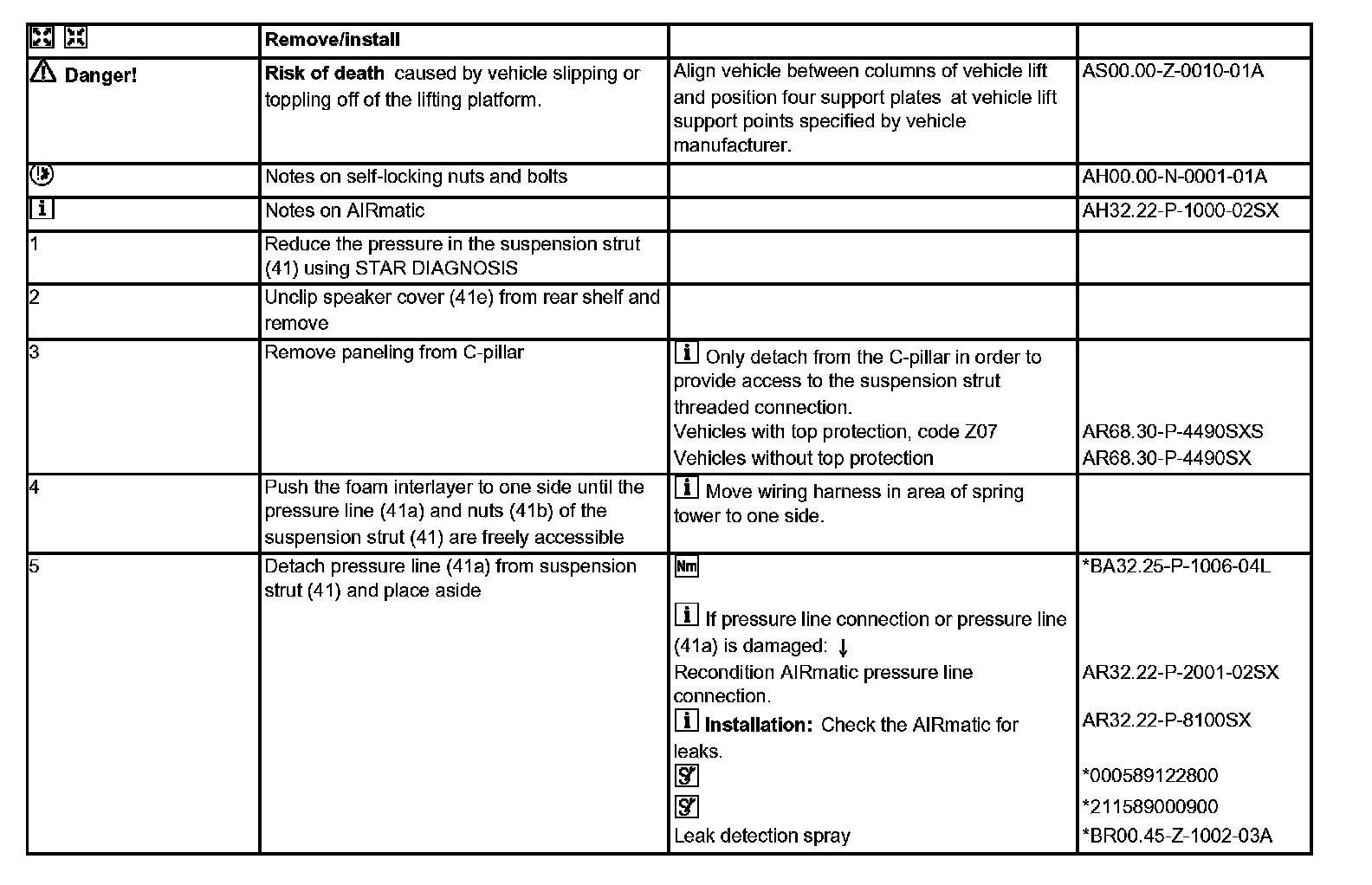

Remove/install Steps 1-5:

Remove/install Steps 6-19:

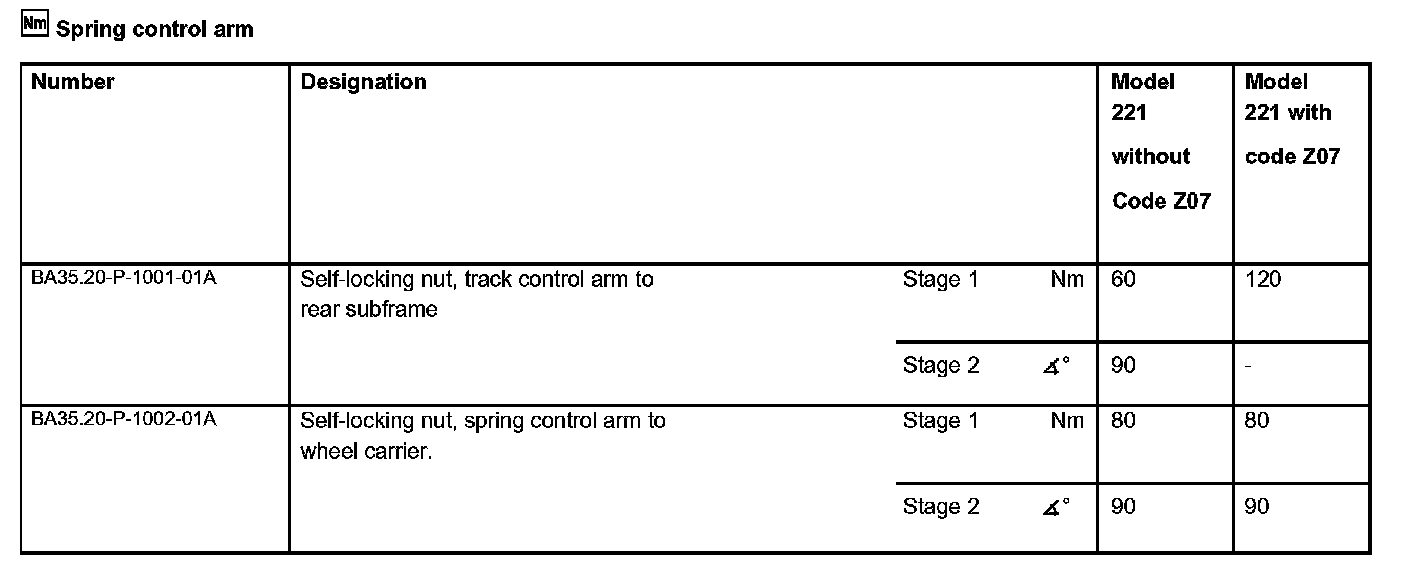

Spring control arm:

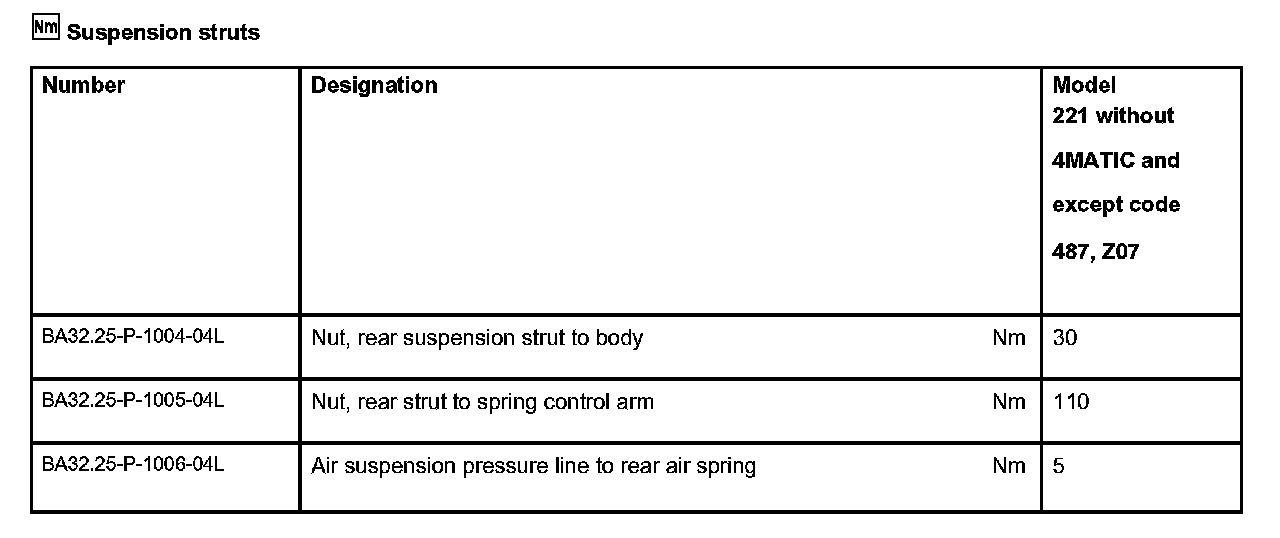

Suspension struts:

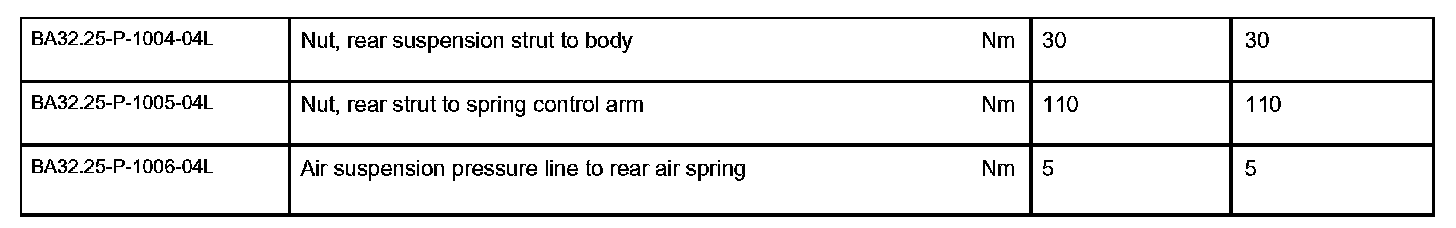

Suspension struts:

Suspension struts:

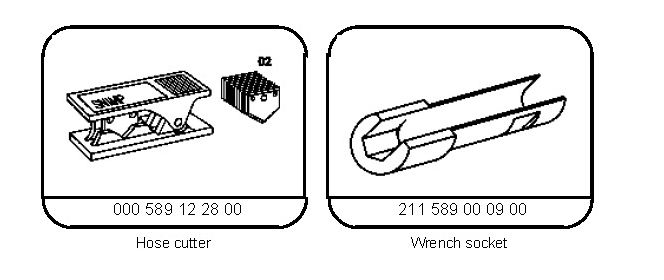

Special Tools:

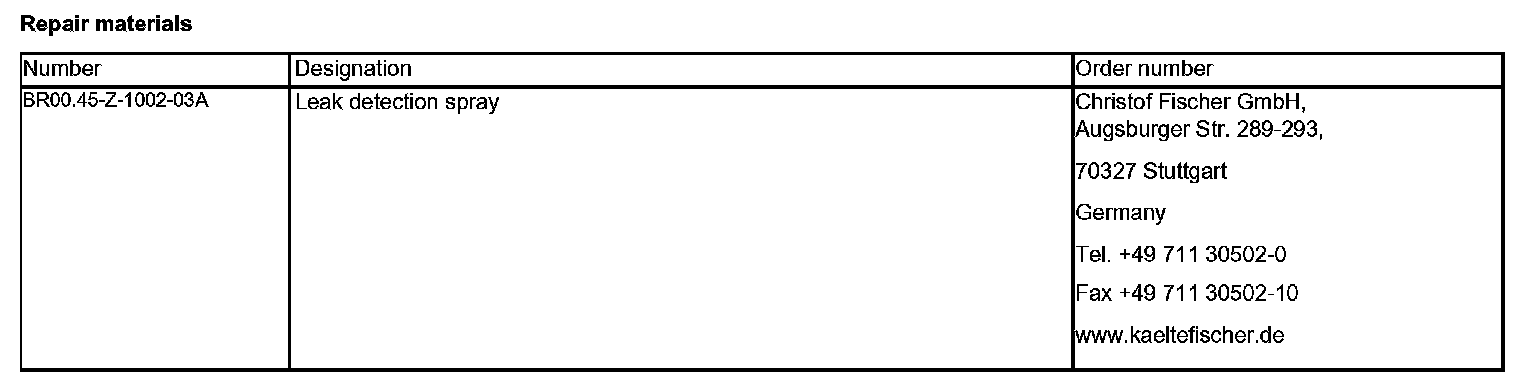

Repair materials:
