AP32.50-P-3213SX Active Body Control - Checking and Correcting Hydraulic Fluid Level
AP32.50-P-3213SX Active Body Control - Checking and Correcting Hydraulic Fluid Level
AP32.50-P-3213SX Active Body Control - Checking and correcting hydraulic fluid level
-
with CODE (487) Active Body Control (ABC)

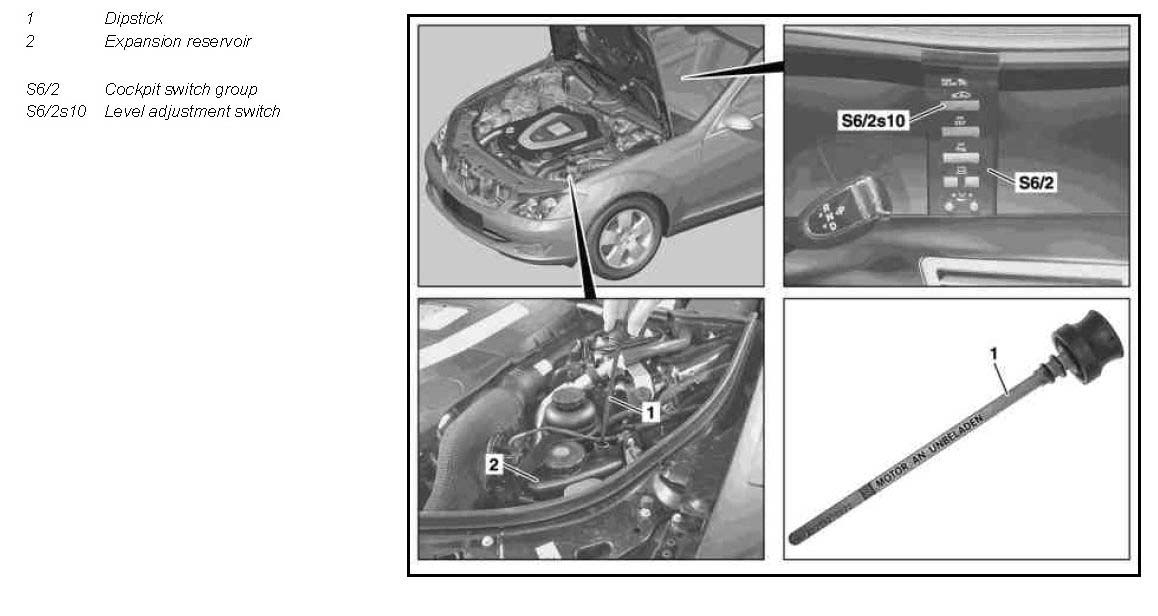

Component Identification:
Steps 1-5:

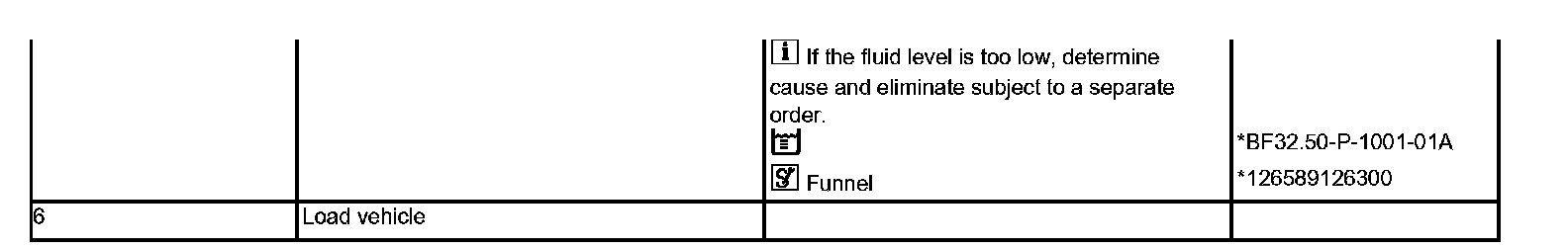

Steps 5 (Continued)-6:

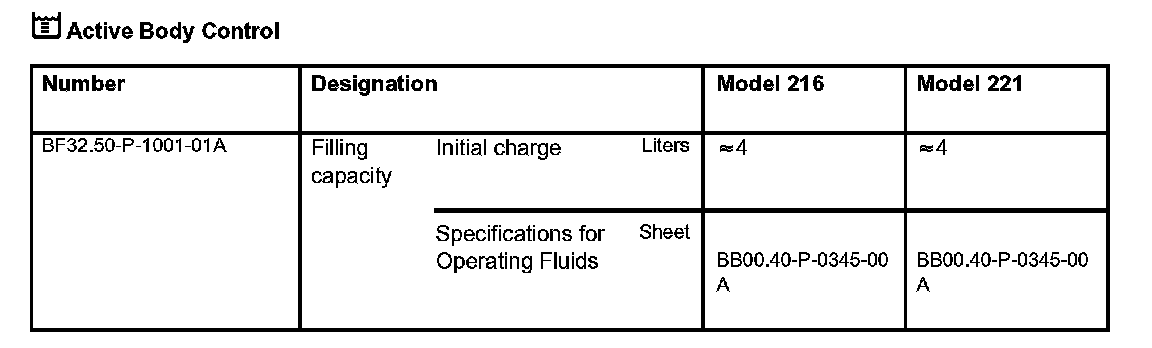

Active Body Control:
Special Tools:
