AR32.50-P-0010RMG Remove/Install Front Suspension Pressure Reservoir

AR32.50-P-0010RMG Remove/Install Front Suspension Pressure Reservoir
MODEL 230.456
- with CODE (487) Active Body Control (ABC)
MODEL 230.470 /471 /472 /477
MODEL 230.479 as of model year 2006
MODEL 216, 221, 231
- with CODE (487) Active Body Control (ABC)

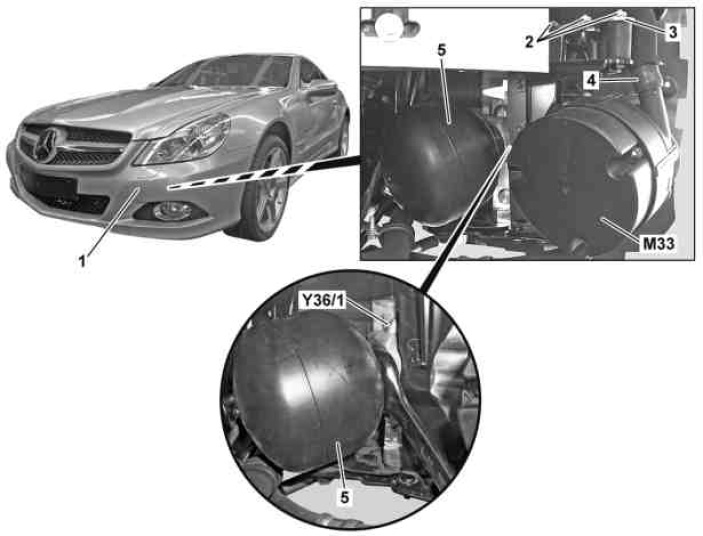

Illustrated on model 230.479

5 Pressure reservoir
Y36/1 ABC front axle valve unit











221 589 01 09 00
Plug in open-end wrench
