Suspension Fluid Cooler: Service and Repair



AR32.50-P-0020SX Remove/install oil cooler
- with CODE (487) Active Body-Control (ABC)

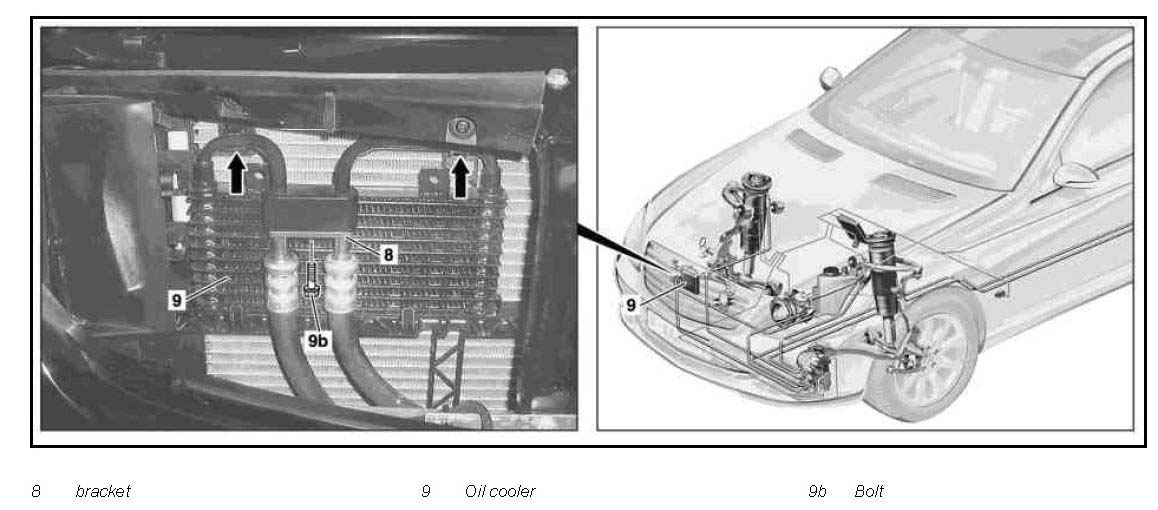

Component Identification:

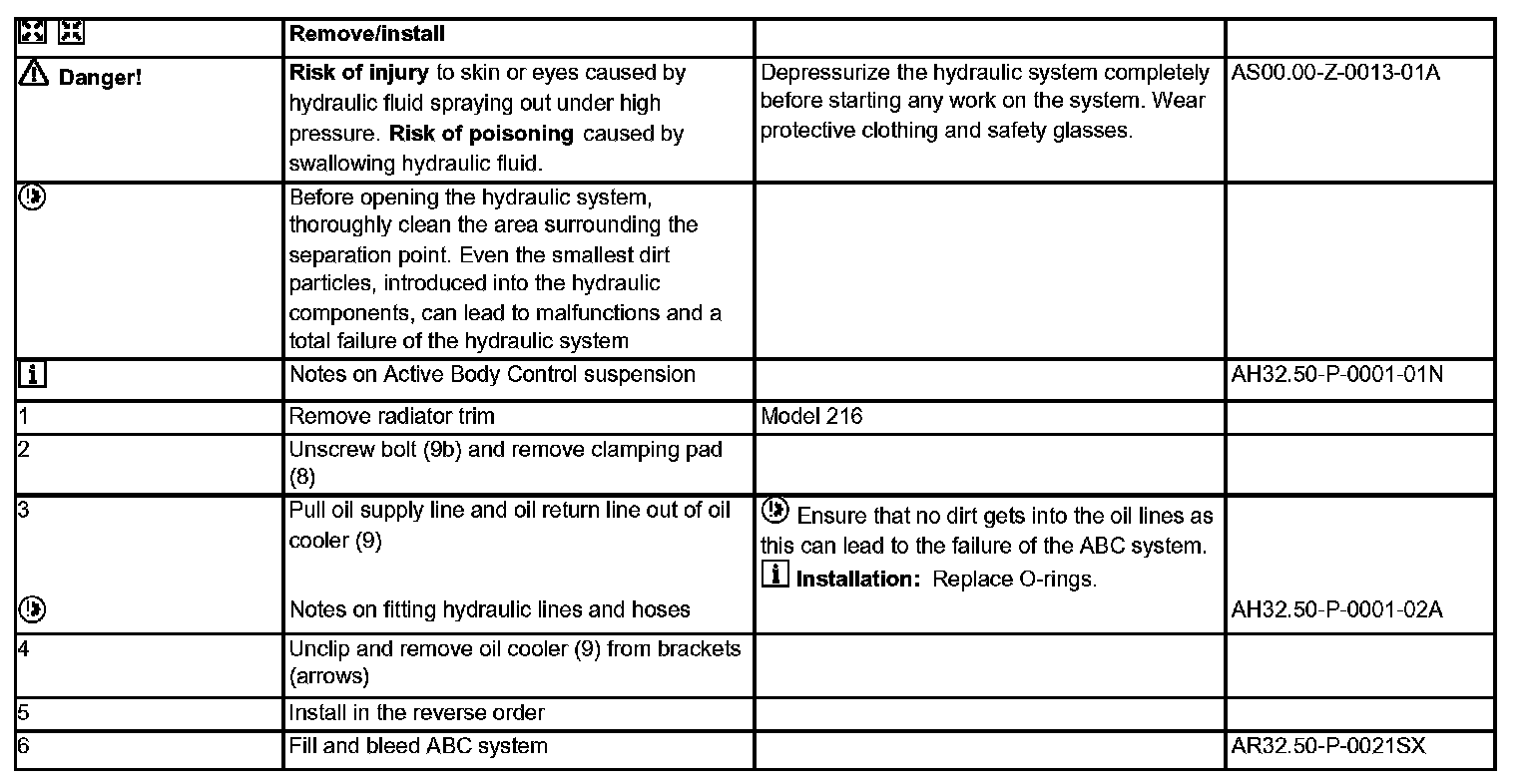

Remove/install Steps 1-6:
