AR32.50-P-0021SX Fill Up And Vent The Active-Body-Control (ABC) System

AR32.50-P-0021SX Fill Up And Vent The Active-Body-Control (ABC) System
MODEL 216, 221.0 /1, 231
- with CODE (487) Active Body Control (ABC)

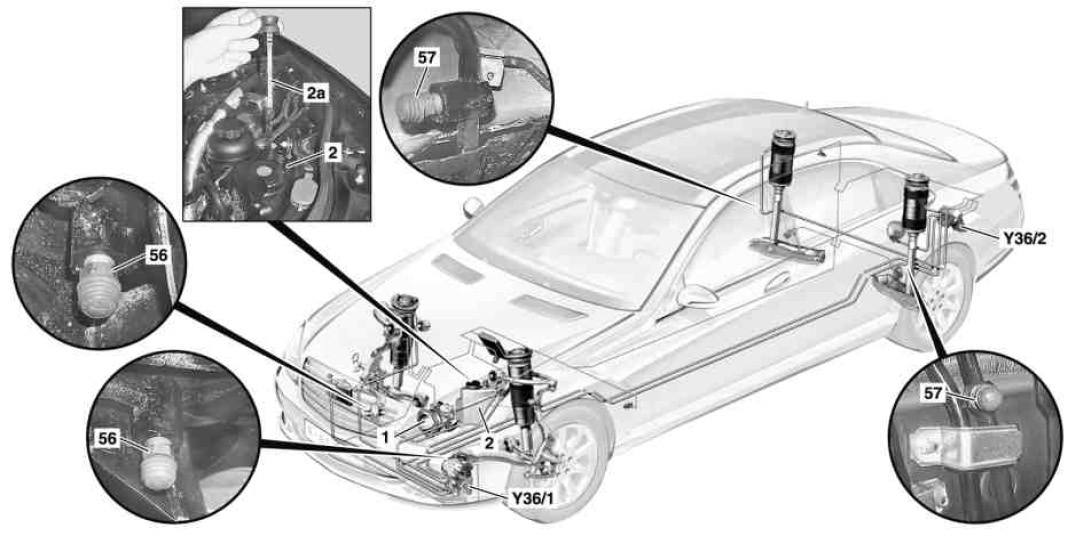

Shown on model 221

1 Tandem pump/hydraulic pump
2 ABC expansion reservoir
2a Dipstick
56 Bleed screws
57 Bleed screws
Y36/1 ABC front axle valve unit
Y36/2 ABC rear axle valve unit














124 589 24 21 00
Pressure pump





126 589 12 63 00
Funnel





166 589 00 91 00
Adapter
