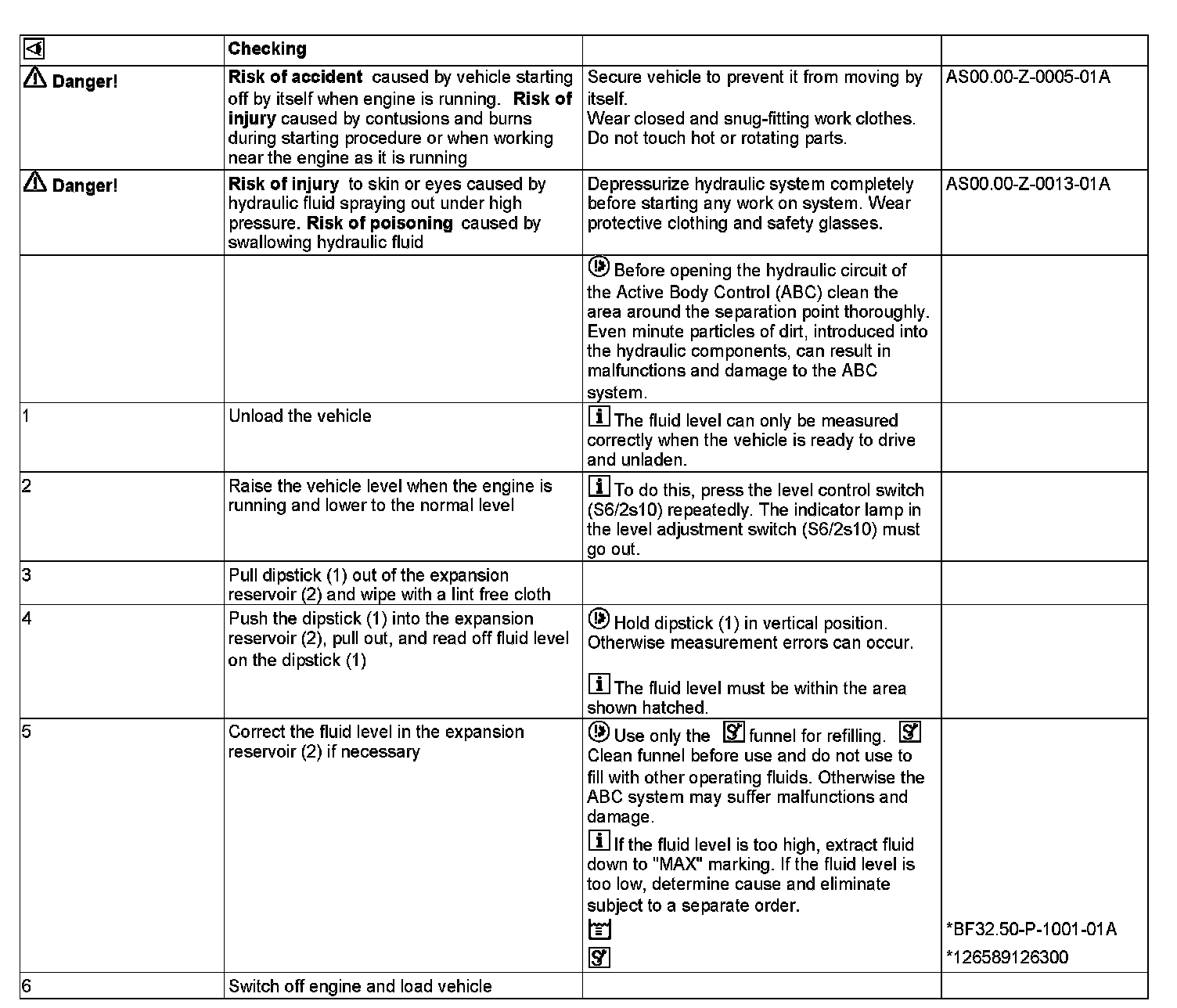

AP32.50-P-3213SX Active Body Control - Checking and Correcting Hydraulic Fluid Level

AP32.50-P-3213SX Active Body Control - Checking And Correcting Hydraulic Fluid Level
MODEL 216, 221, 231
- with CODE (487) Active Body Control (ABC)





Shown on model 221

1 Dipstick
2 Expansion reservoir

S6/2s10 Level adjustment switch











126 589 12 63 00
Funnel
