AR32.50-P-0002SX Remove/Install Rear Suspension Valve Body
AR32.50-P-0002SX Remove/install rear suspension valve body
- with CODE (487) Active Body-Control (ABC)
Component Identification:

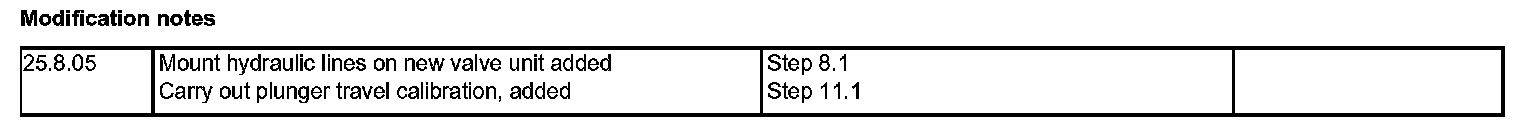

Modification notes:

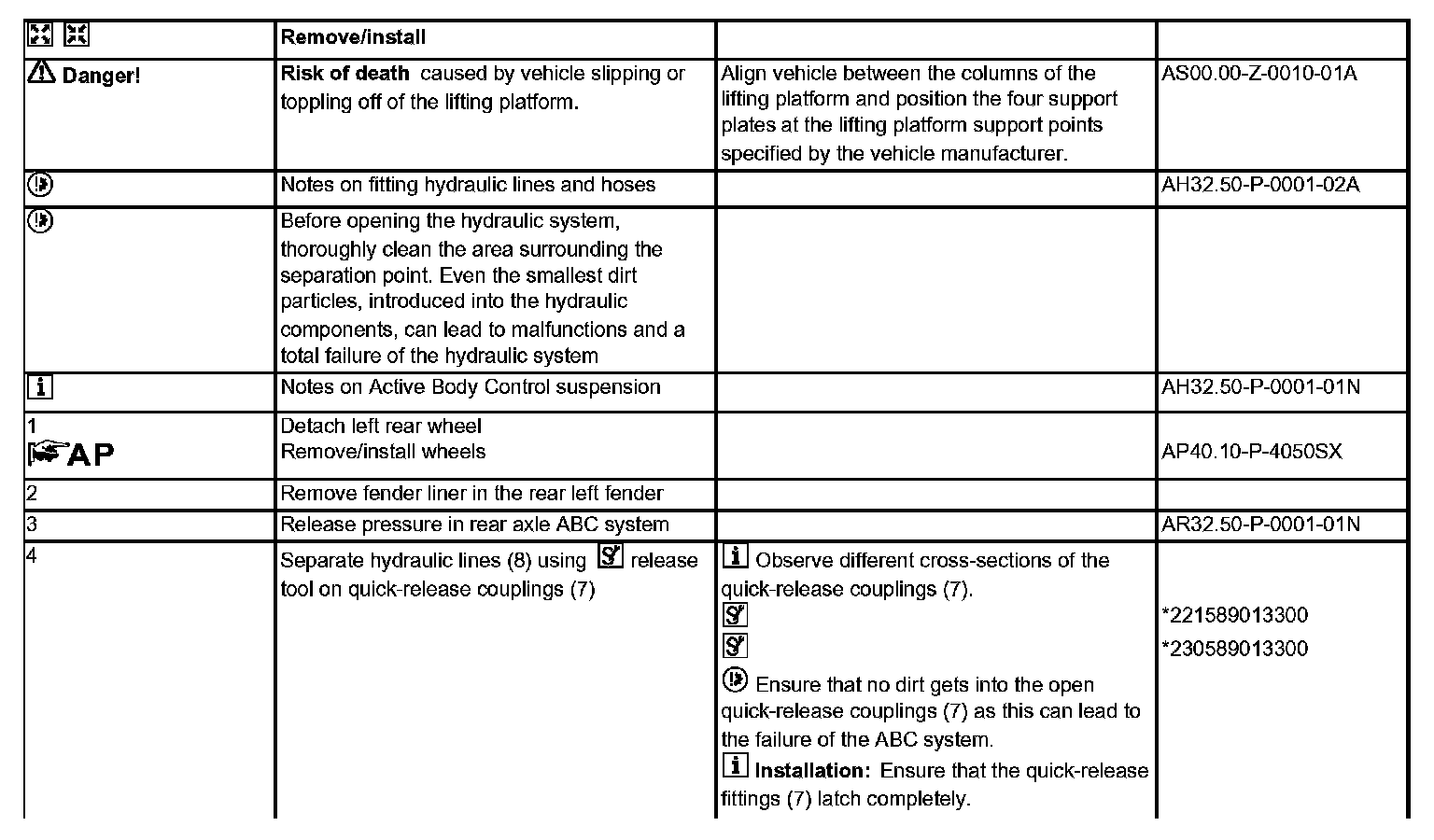

Remove/install Steps 1-4:

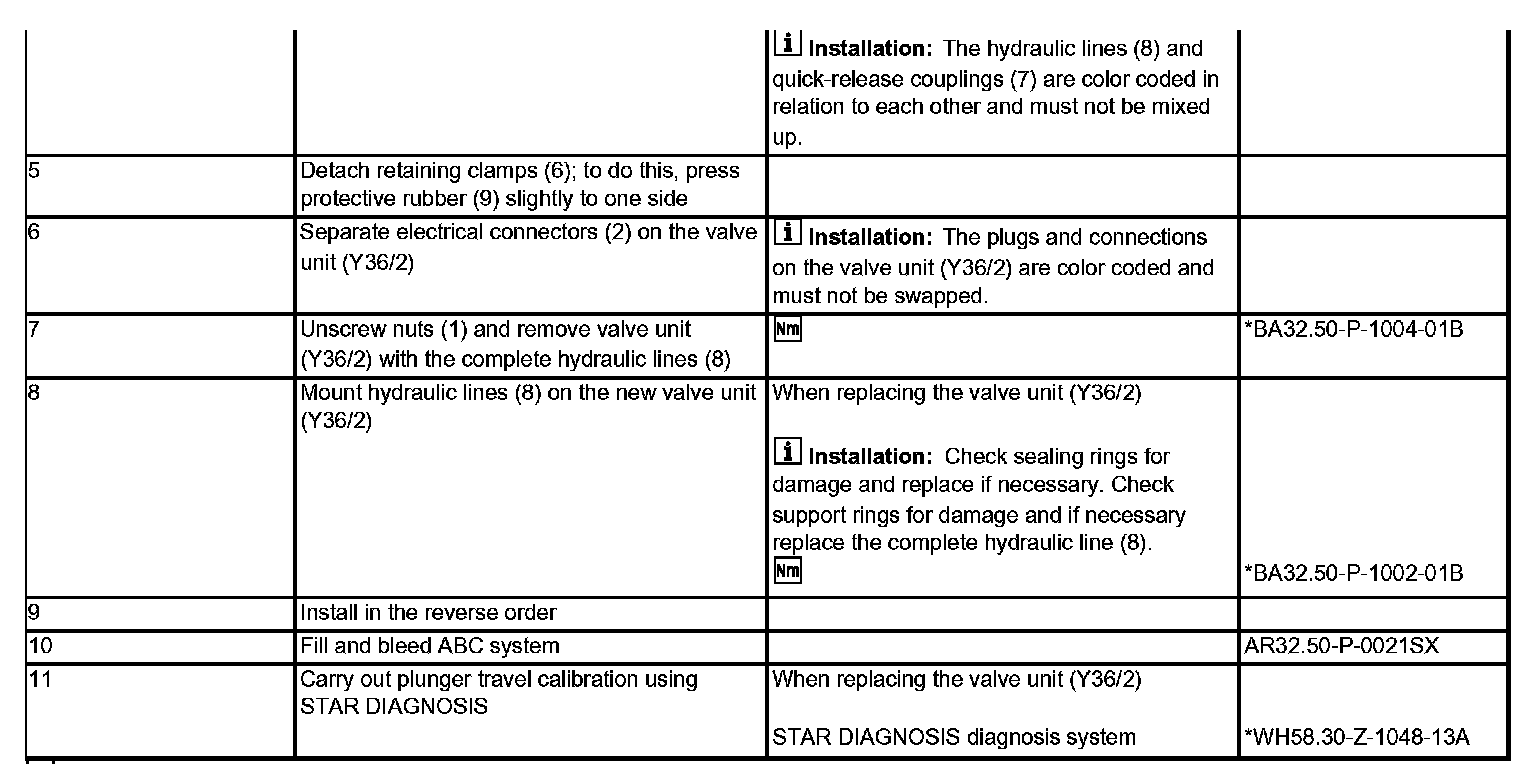

Remove/install Steps 4 (Continued)-11:
Active Body Control suspension:
Special Tools:

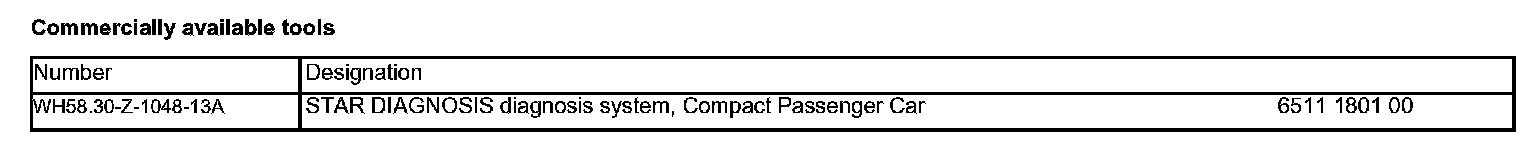

Commercially available tools:
