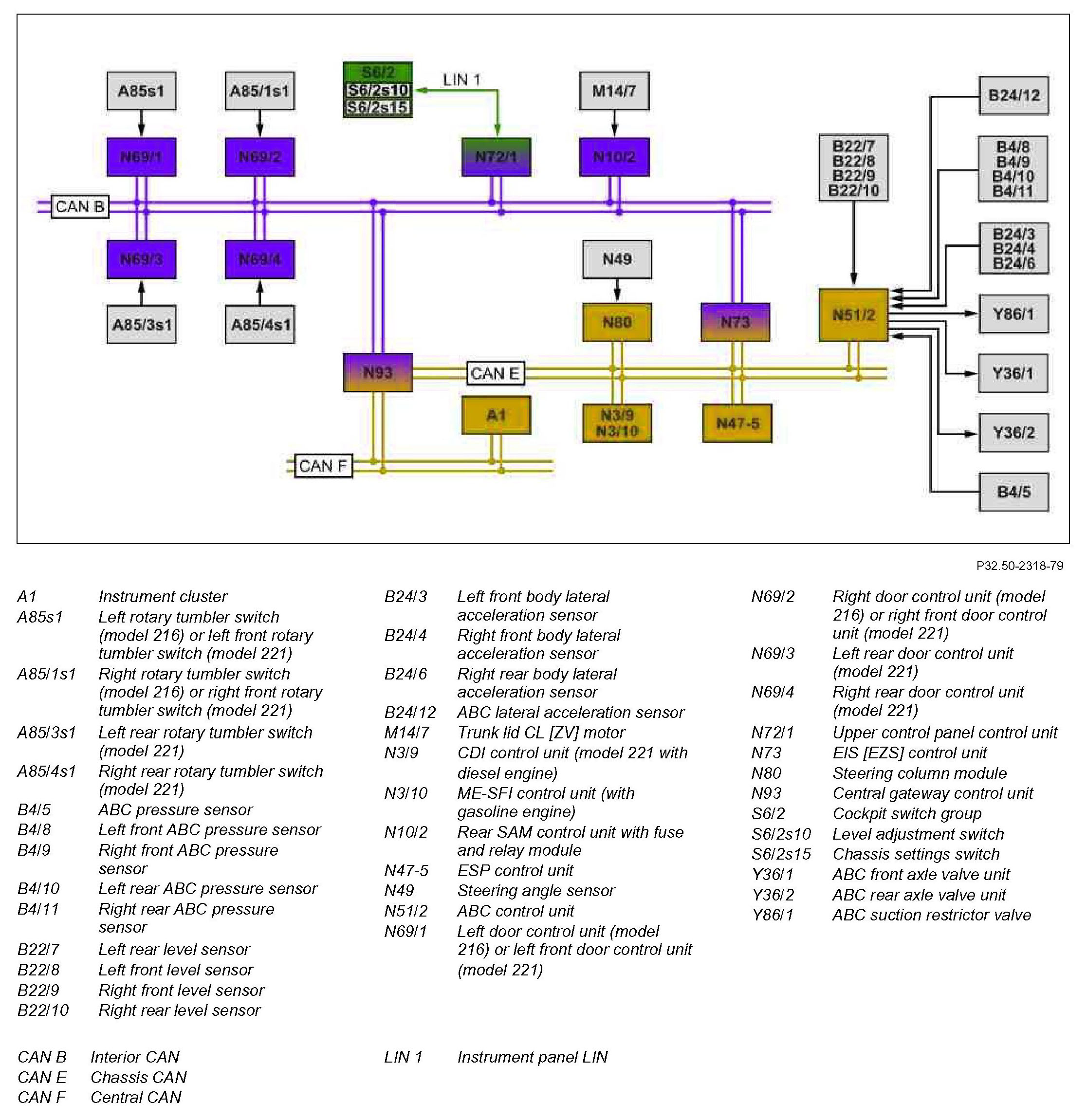

GF32.50-P-0001-02LEA Active Body Control (ABC), Block Diagram

GF32.50-P-0001-02LEA Active body control (ABC), block diagram
- Model 221
- with CODE (487) Active Body Control (ABC)

- Model 216
- except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)

- as of model year 2010
