AR32.22-P-2011SX Replace Rubber Mount For Compressor
AR32.22-P-2011SX Replace Rubber Mount For Compressor
AR32.22-P-2011SX Replace rubber mount for compressor
Component Identification:

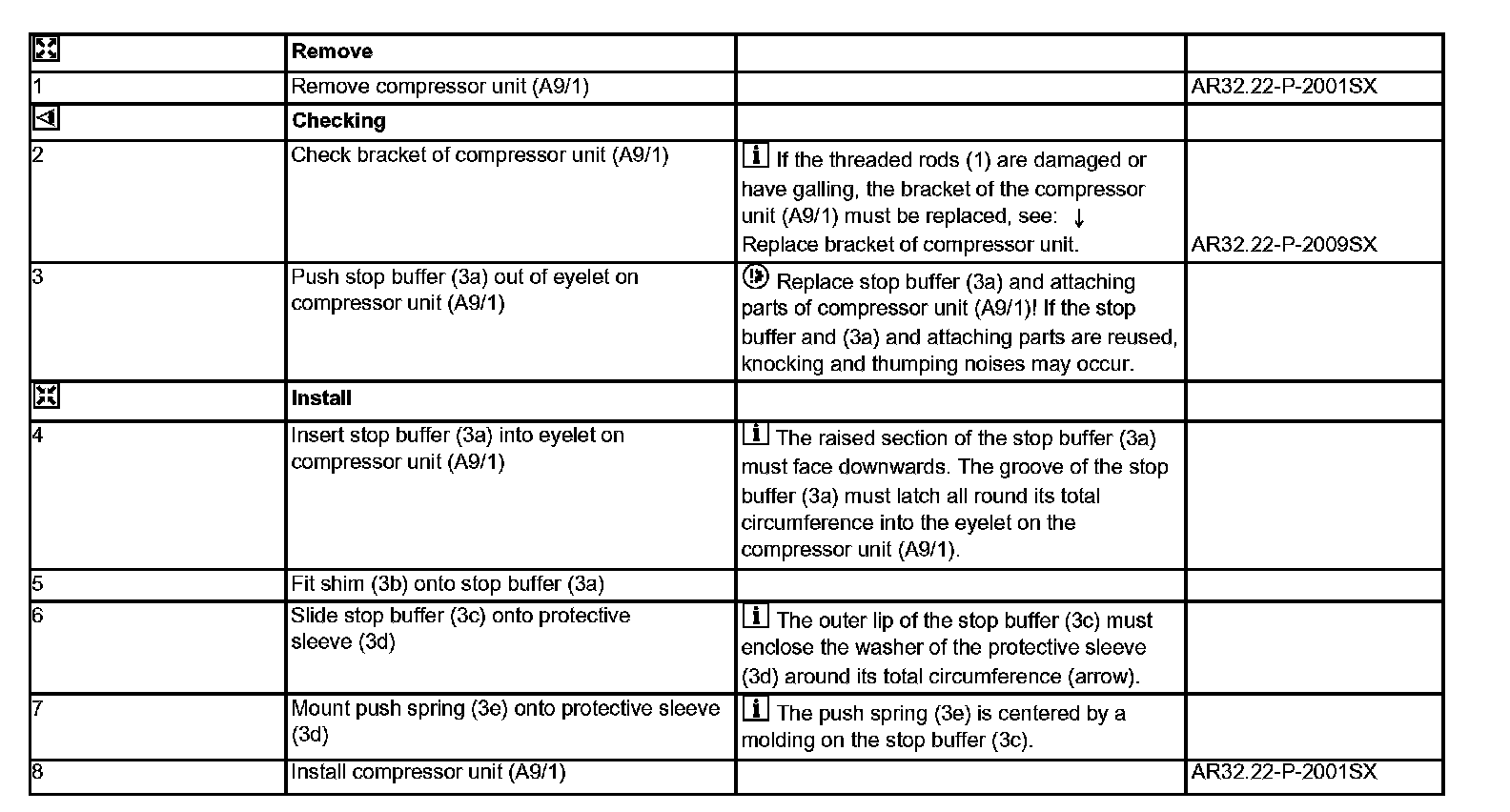

Steps 1-8:
