AR32.22-P-2009SX Remove/Install Bracket For Compressor
AR32.22-P-2009SX Remove/Install Bracket For Compressor
AR32.22-P-2009SX Remove/install bracket for compressor

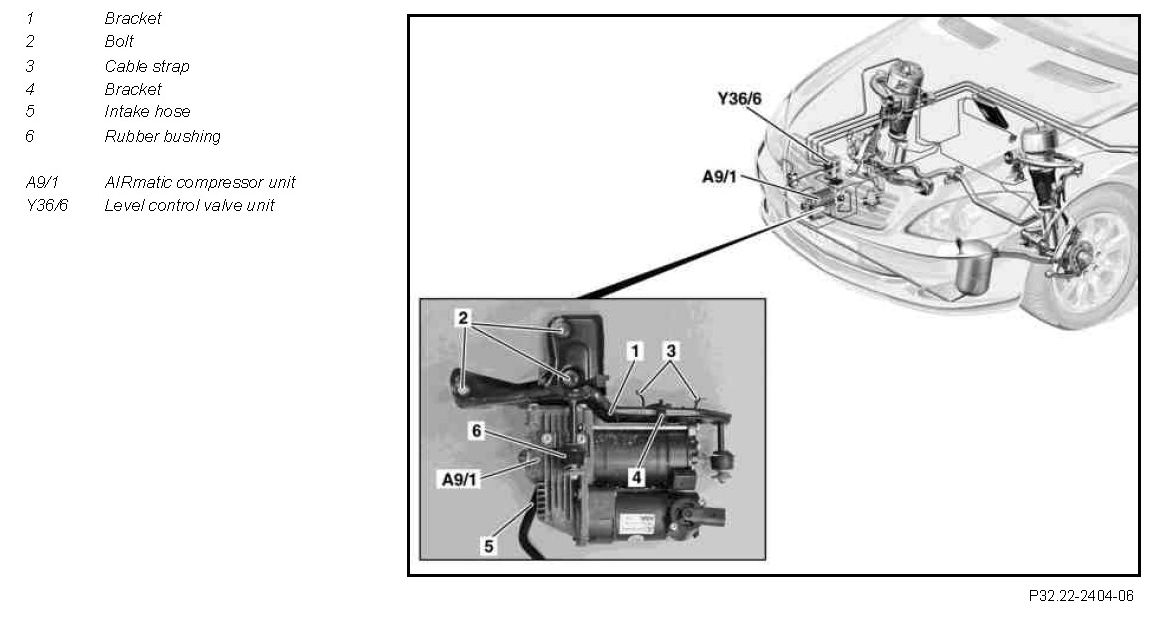

Component Identification:

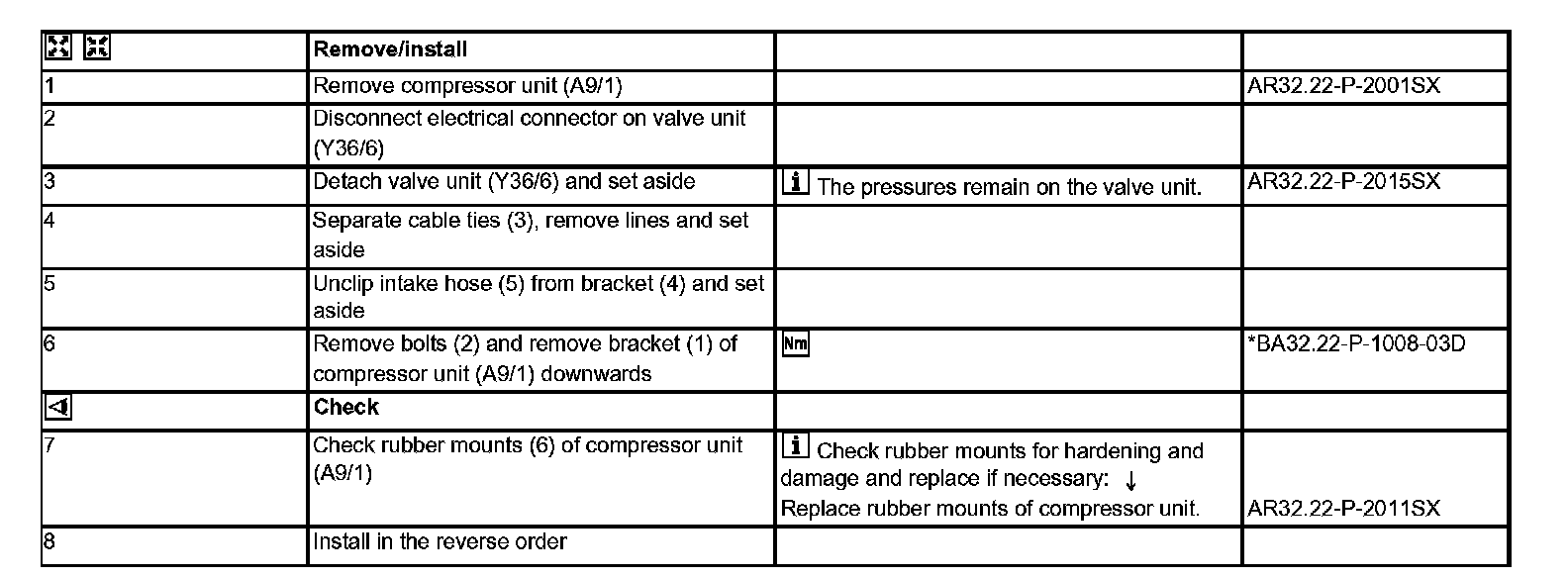

Remove/install Steps 1-8:
Air suspension:
