Compressor/Pump Pulsation Damper: Service and Repair
AR32.50-P-0013SX Remove/install pulsation damper
- with CODE (487) Active Body-Control (ABC)
Component Identification:

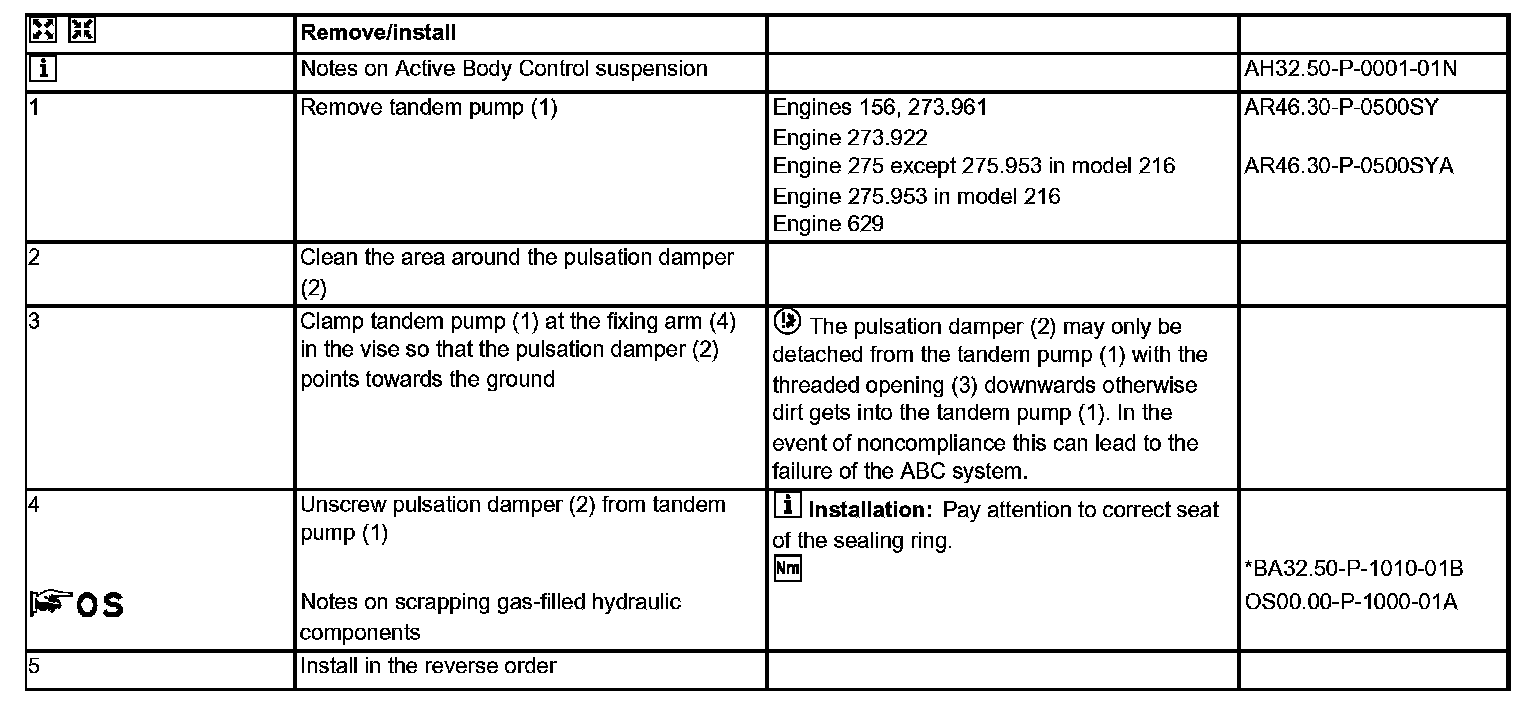

Remove/install Steps 1-5:

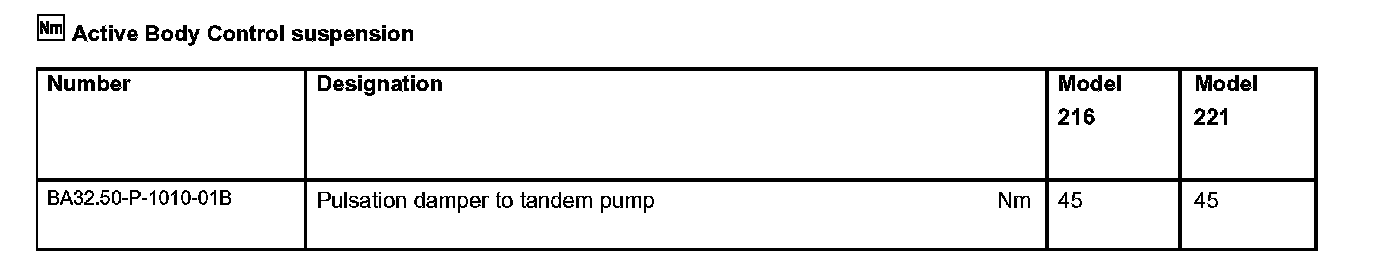

Active Body Control suspension:
AR32.50-P-0013SX Remove/install pulsation damper
- with CODE (487) Active Body-Control (ABC)
