Accumulator: Service and Repair



AR32.22-P-2017SX Remove/install AIRmatic central reservoir

Component Identification:

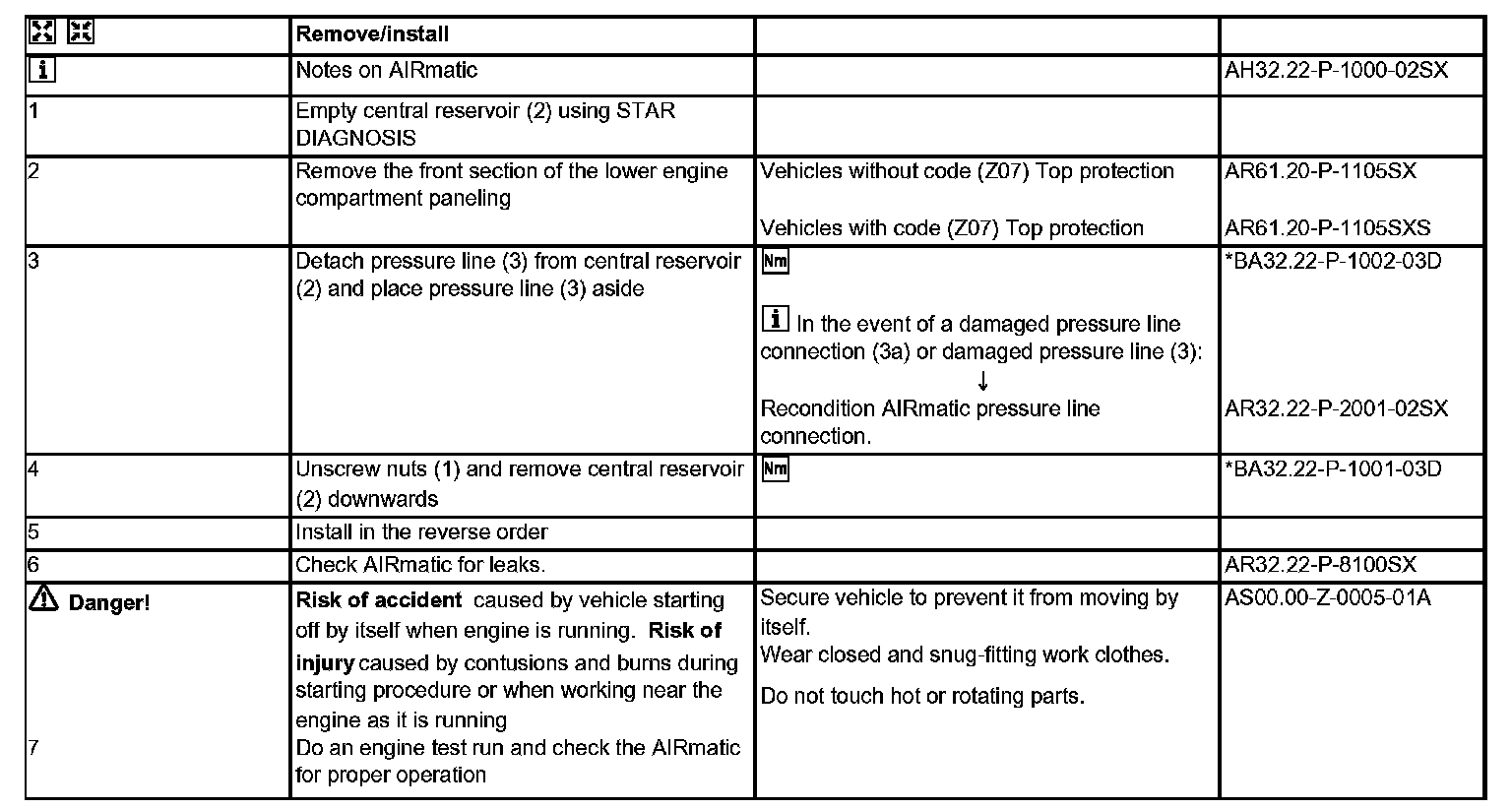

Remove/install Steps 1-7:

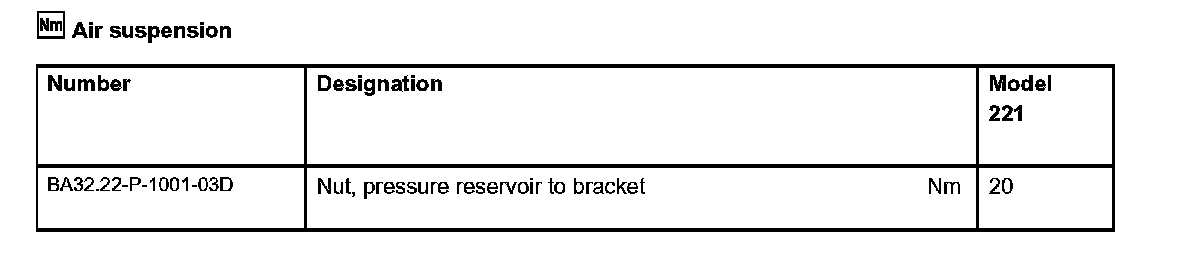

Air suspension:

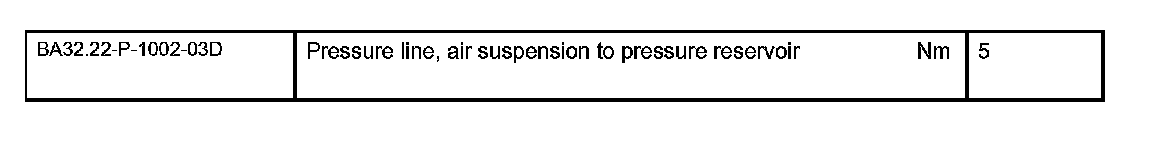

Air suspension:
