AR35.10-P-0051SX Remove/Install Front Center Assembly Suspension on Rear Axle Carrier

Component Identification:

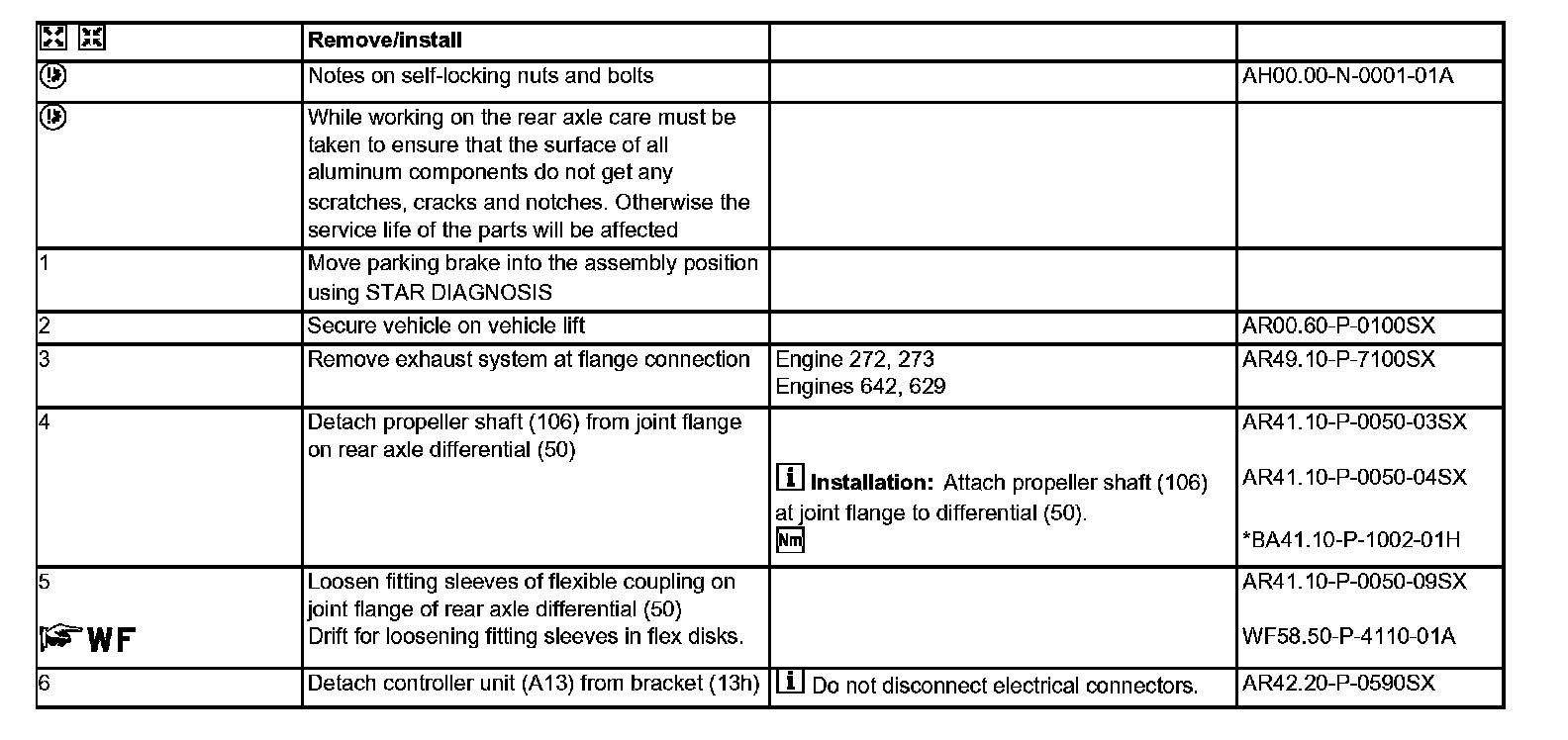

Remove/install Steps 1-6:

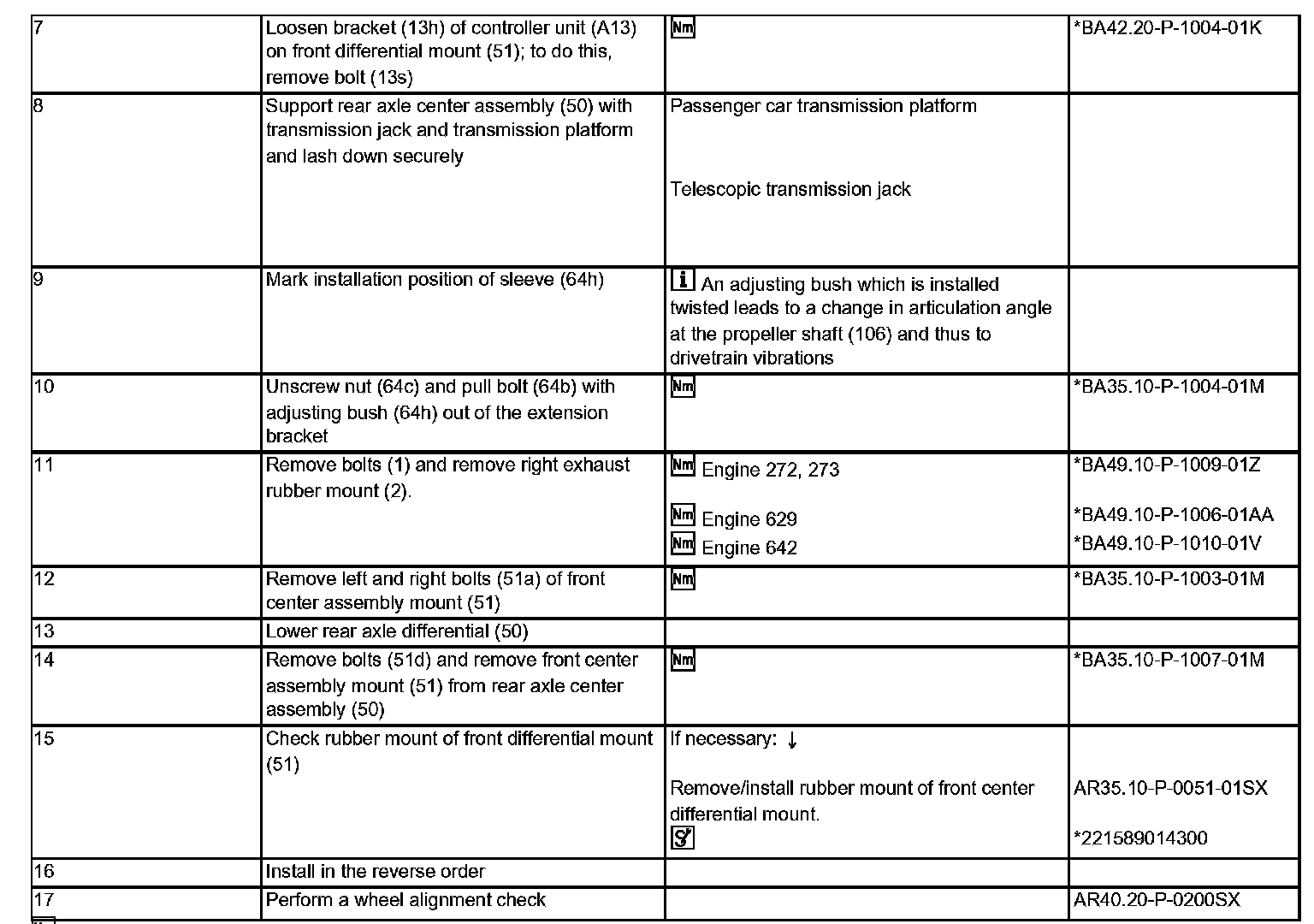

Remove/install Steps 7-17:

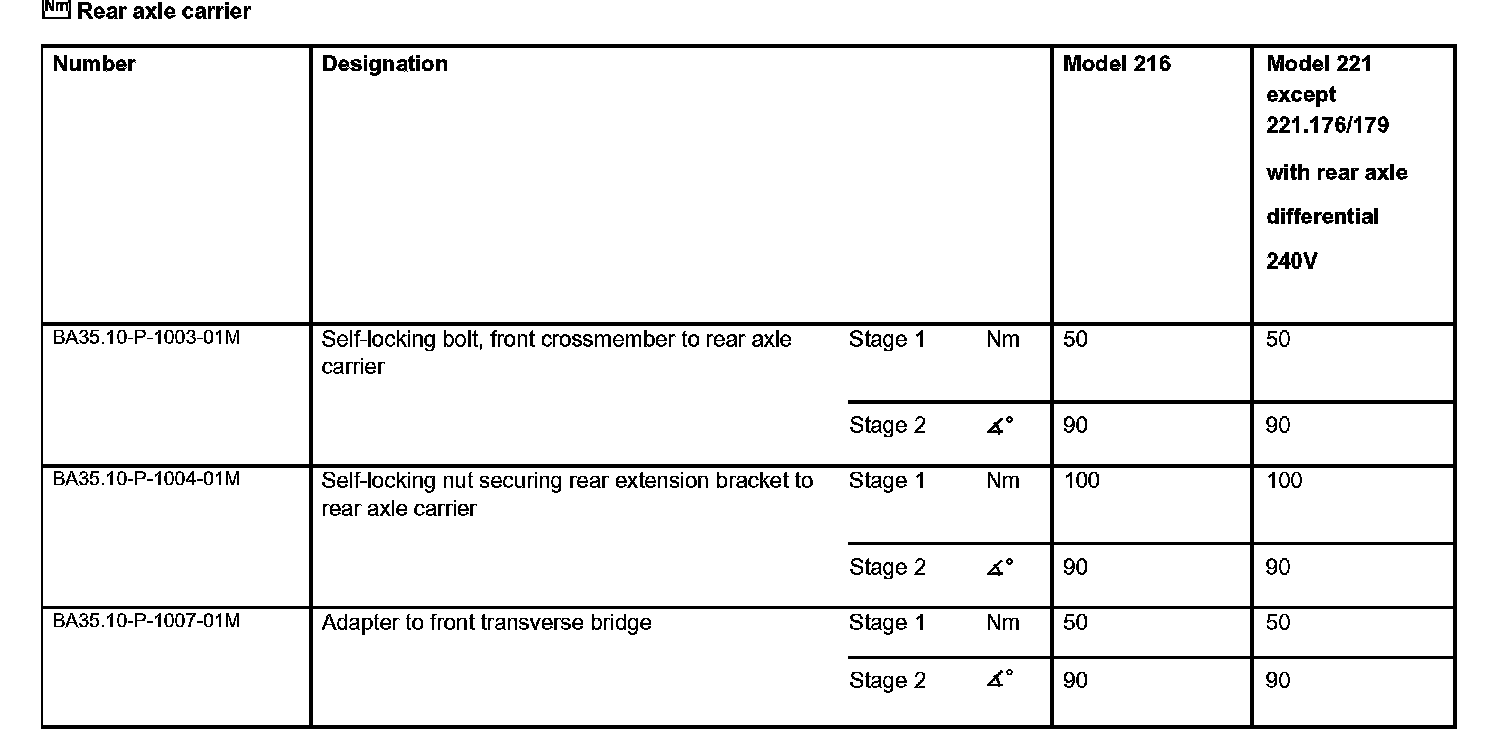

Rear axle carrier:

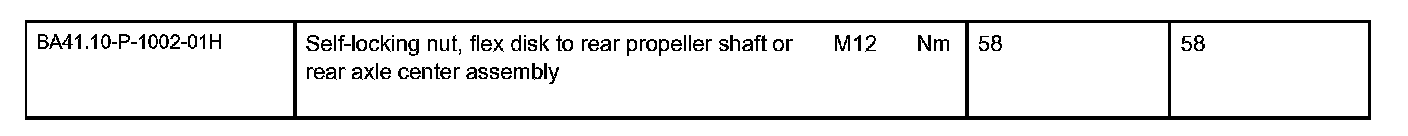

Propeller shaft:

Propeller shaft:

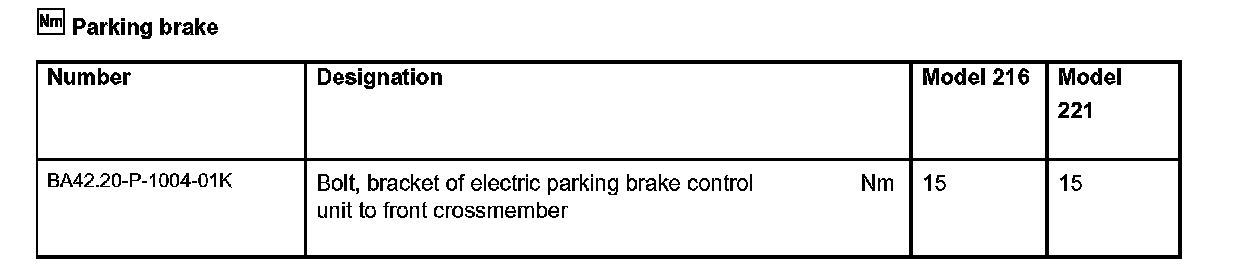

Parking brake:

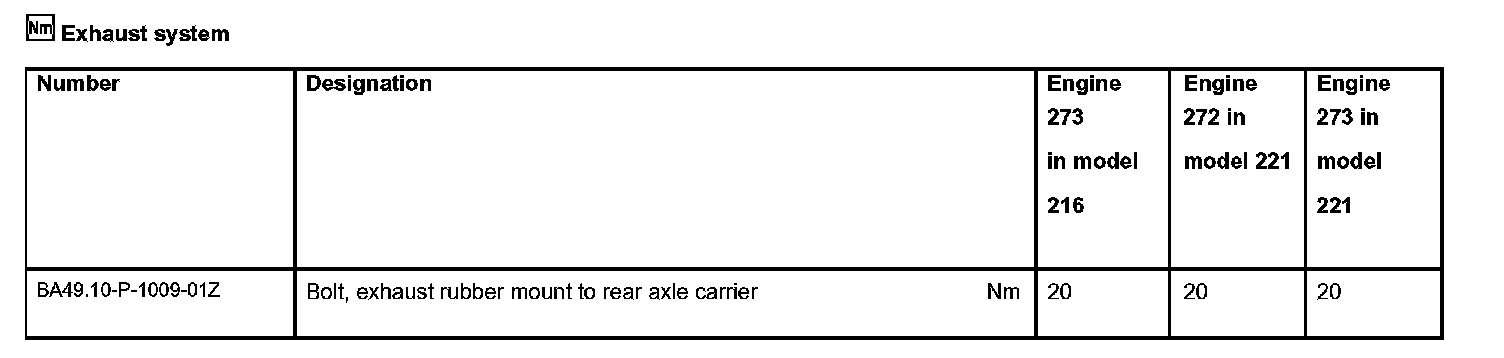

Exhaust system:

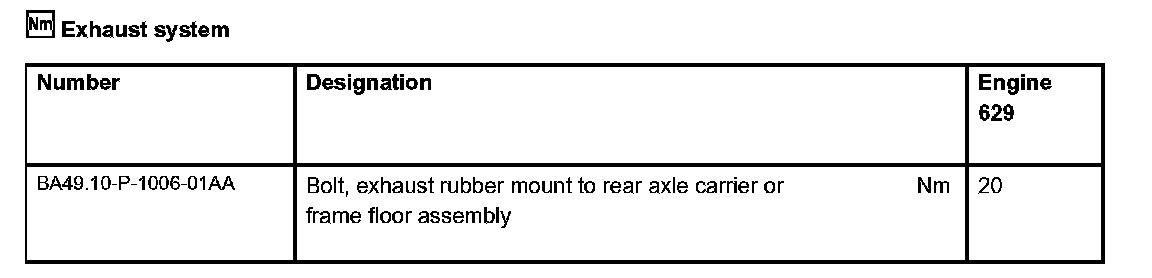

Exhaust system:

Exhaust system:

Special Tools:
