AR33.10-P-0100SYZ Remove/Install Front Axle
AR33.10-P-0100SYZ Remove/Install Front Axle
AR33.10-P-0100SYZ Remove/install front axle

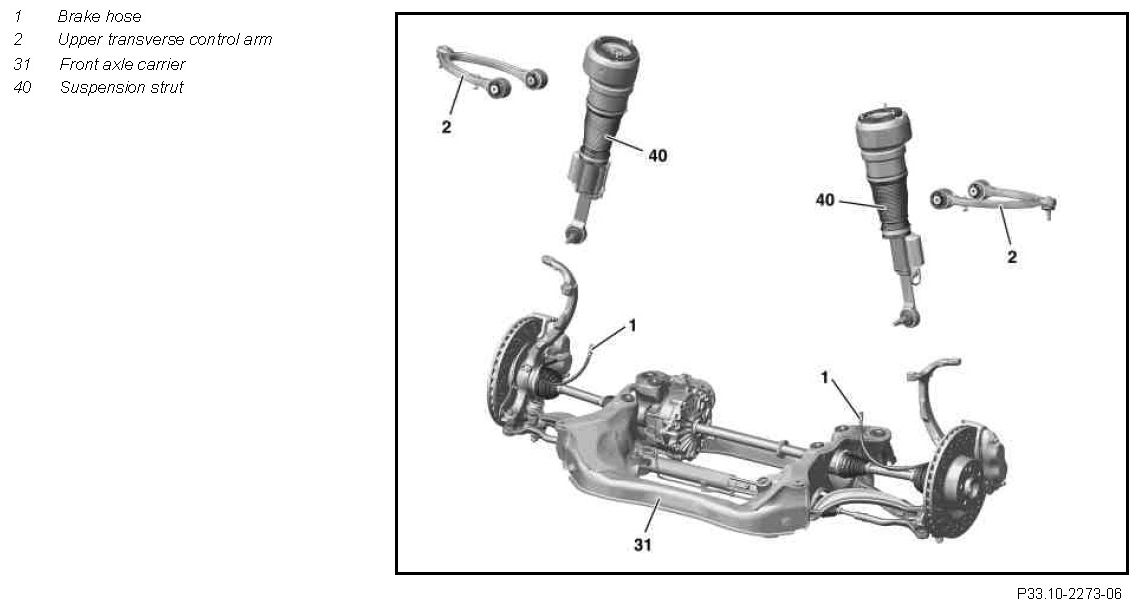

Component Identification:

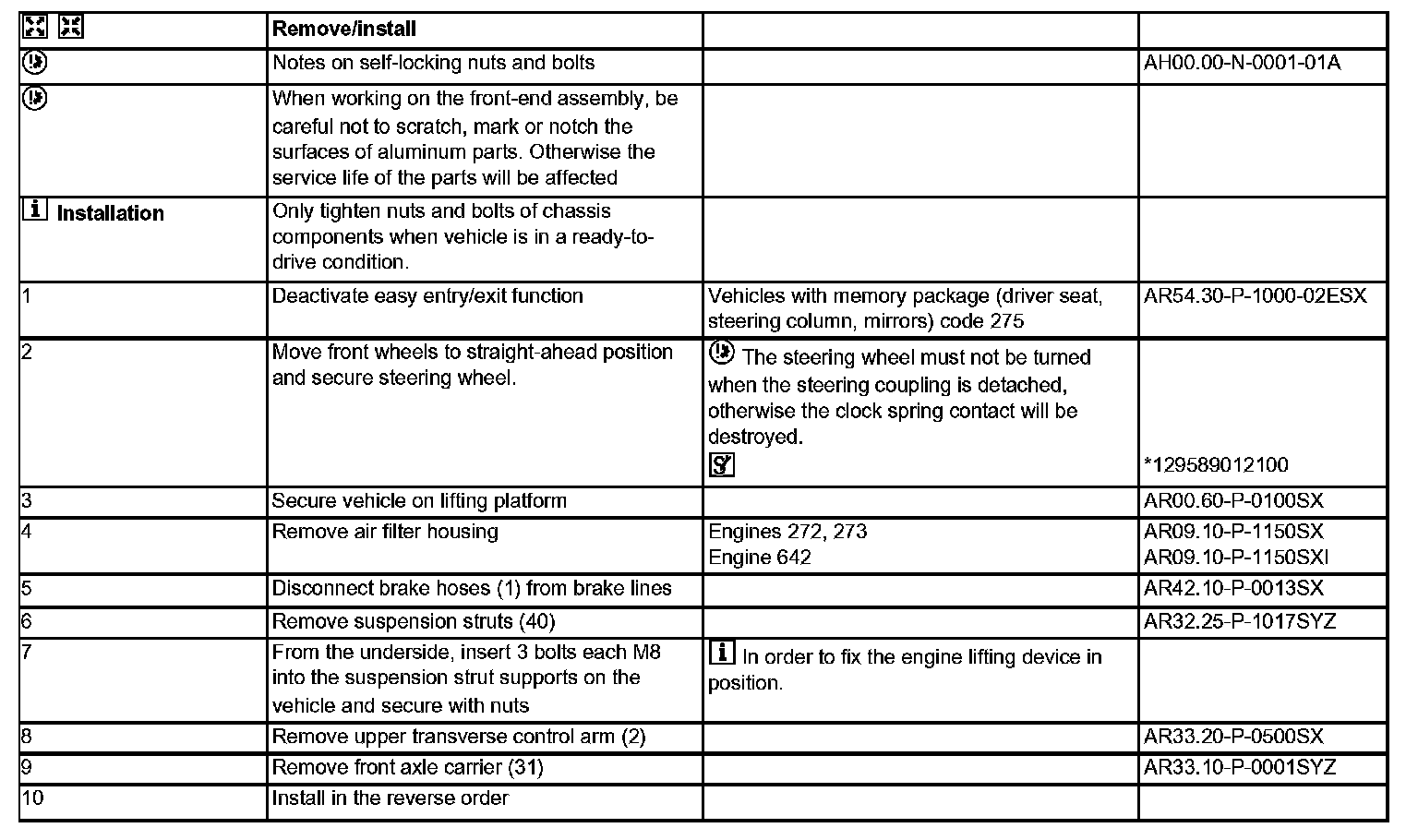

Remove/install Steps 1-10:
Special Tools:
