S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Service and Repair
>>
Removal and Replacement
>>
AR32.00-P-1000SX Install/Remove Emergency Buffer
AR32.00-P-1000SX Install/Remove Emergency Buffer
AR32.00-P-1000SX Install/remove emergency buffer
-
with AIRmatic

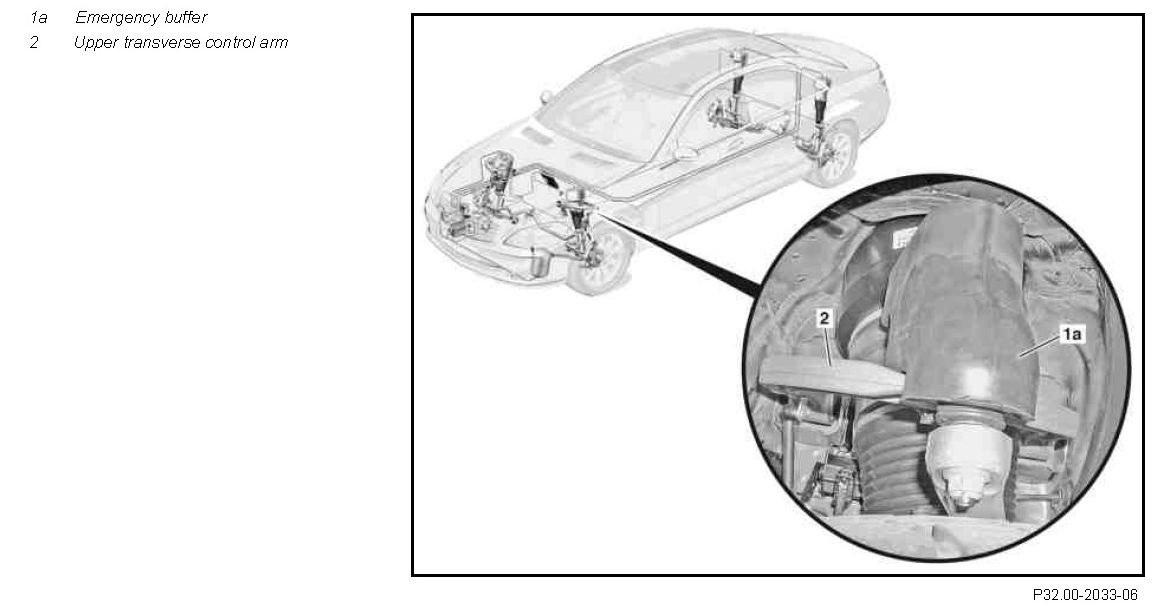

Component Identification:

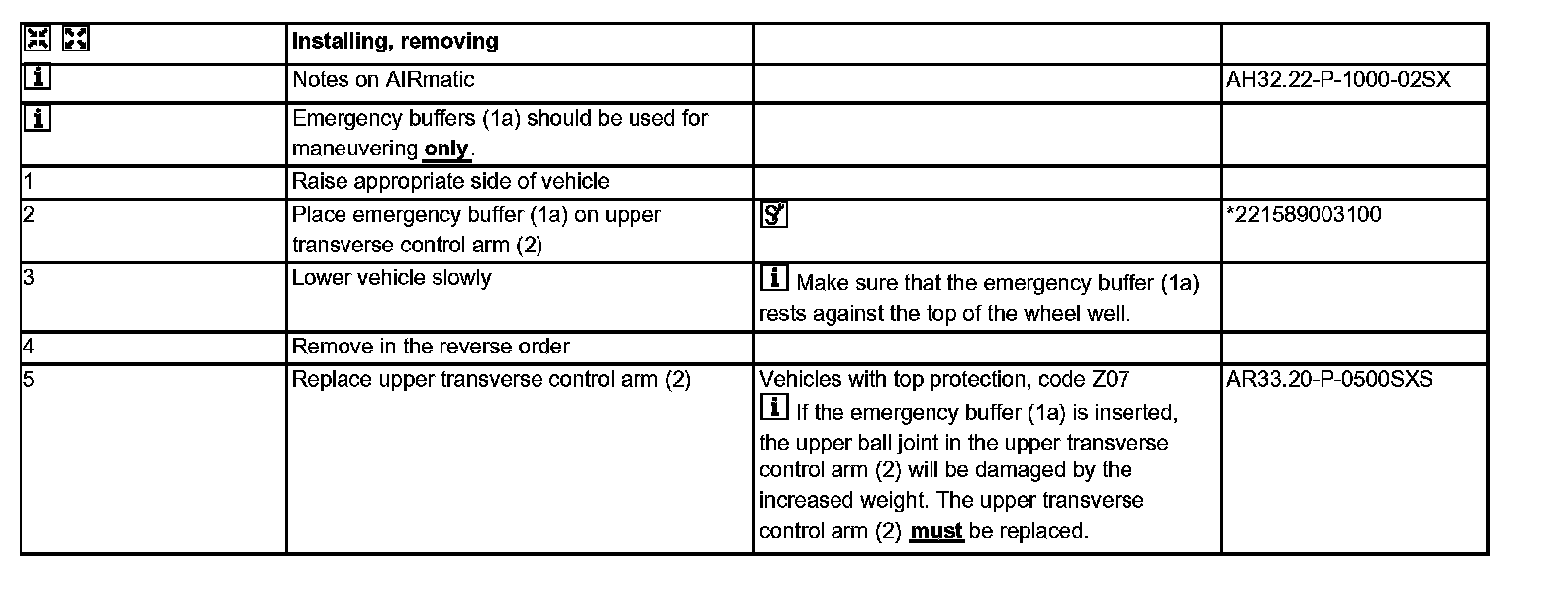

Steps 1-5:

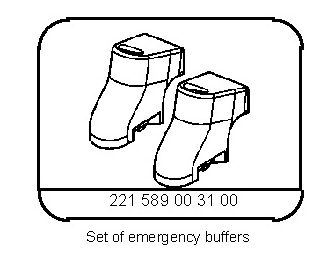

Special Tools:
