AR35.20-P-0115SX Remove/Install Wheel Carrier

AR35.20-P-0115SX Remove/Install Wheel Carrier
MODEL 216
MODEL 221

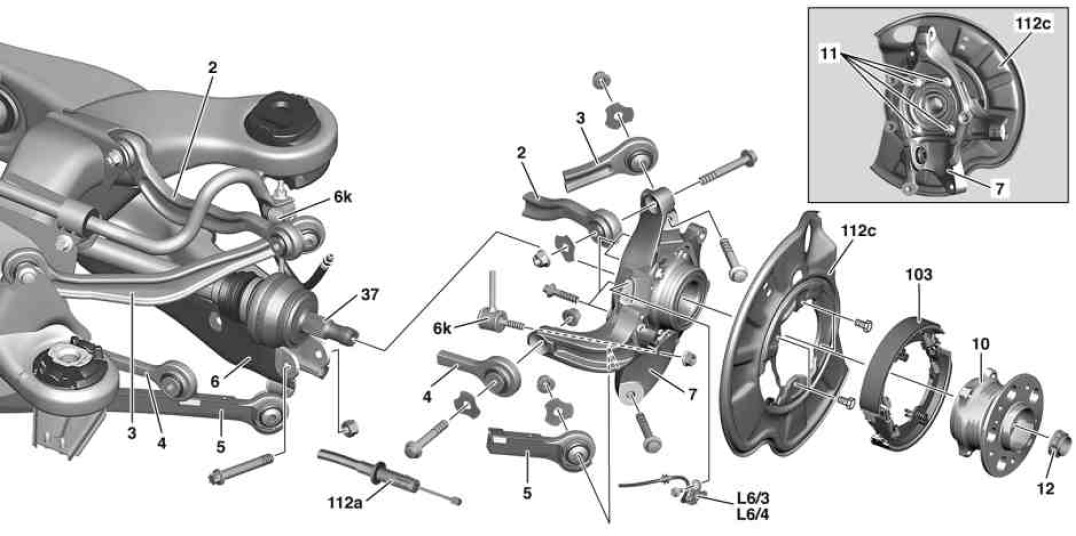

2 Camber strut
3 Torque strut
4 Tie rod
5 Thrust arm

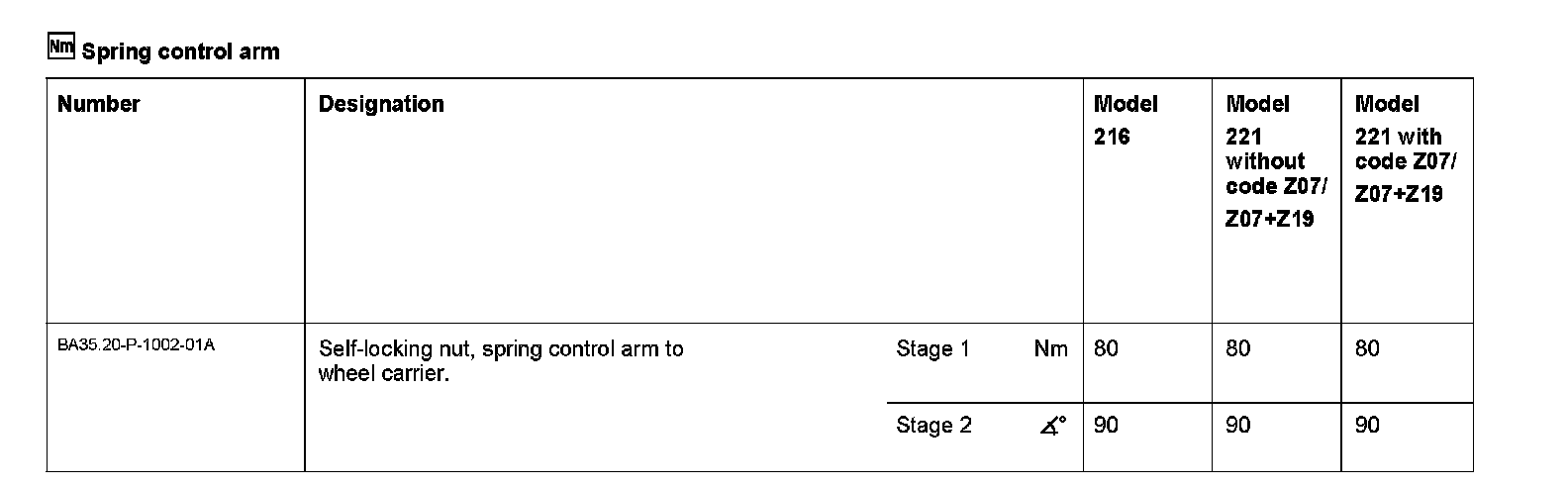

6 Spring control arm
6k Link rod
7 Wheel carrier
10 Wheel bearing
11 Bolts
12 Twelve-point collar nut
37 Rear axle shaft
103 Brake shoes for parking brake
112a Brake cable
112c Brake caliper dust shield

L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor





























202 589 04 43 10
Press





211 589 01 33 00
Puller





210 589 03 43 00
Extraction and insertion tool





210 589 01 40 00
Bracket





220 589 01 09 00
Wrench socket
