Removal and Replacement

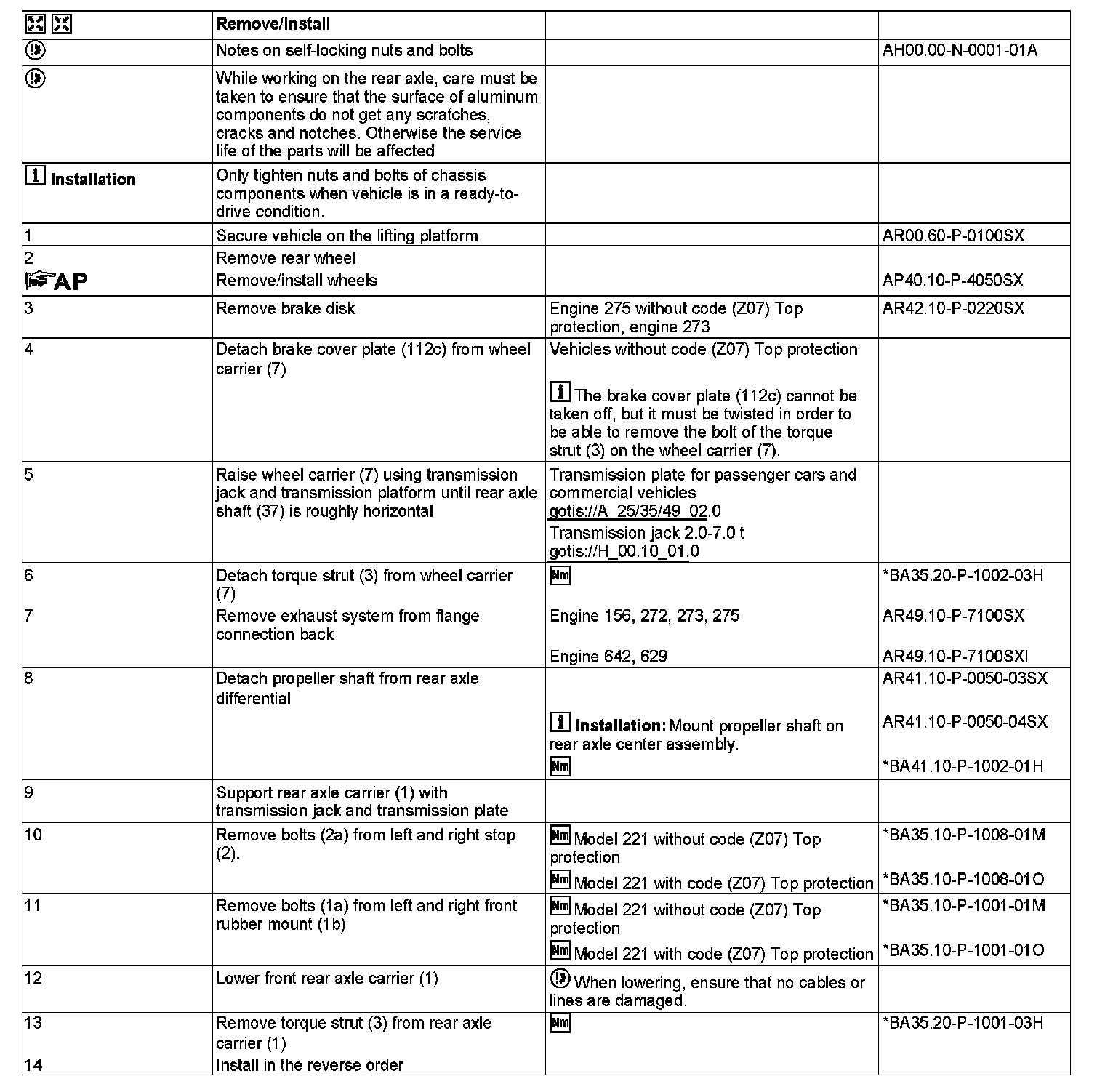

AR35.20-P-0111SX Remove/Install Radius Rod

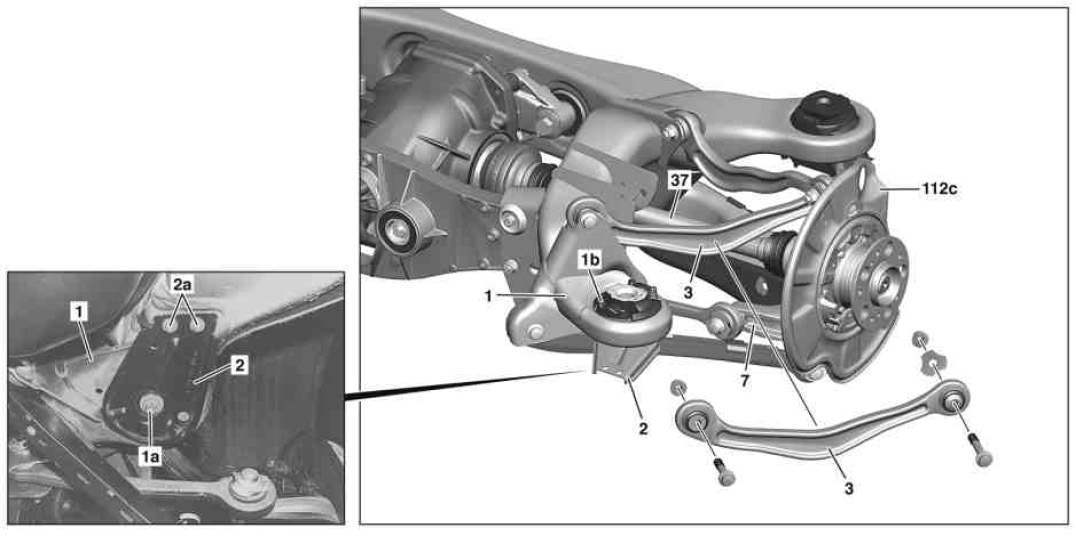

MODEL 221, 216





1 Rear axle carrier
1a Screw
1b Front rubber mount
2 End stop
2a Bolts
3 Torque strut
7 Wheel carrier
37 Rear axle shaft
112c Brake caliper dust shield
