AR33.15-P-0160-01SX Press the radius rod out of the stub axle assembly

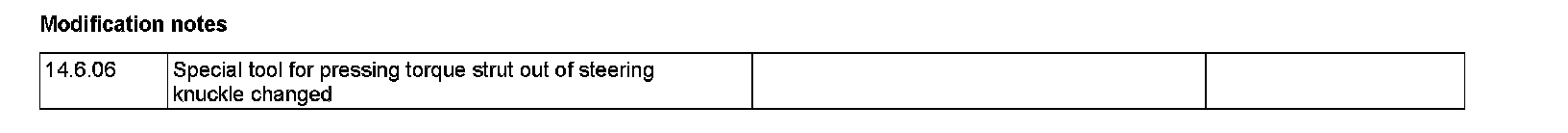

Modification notes:

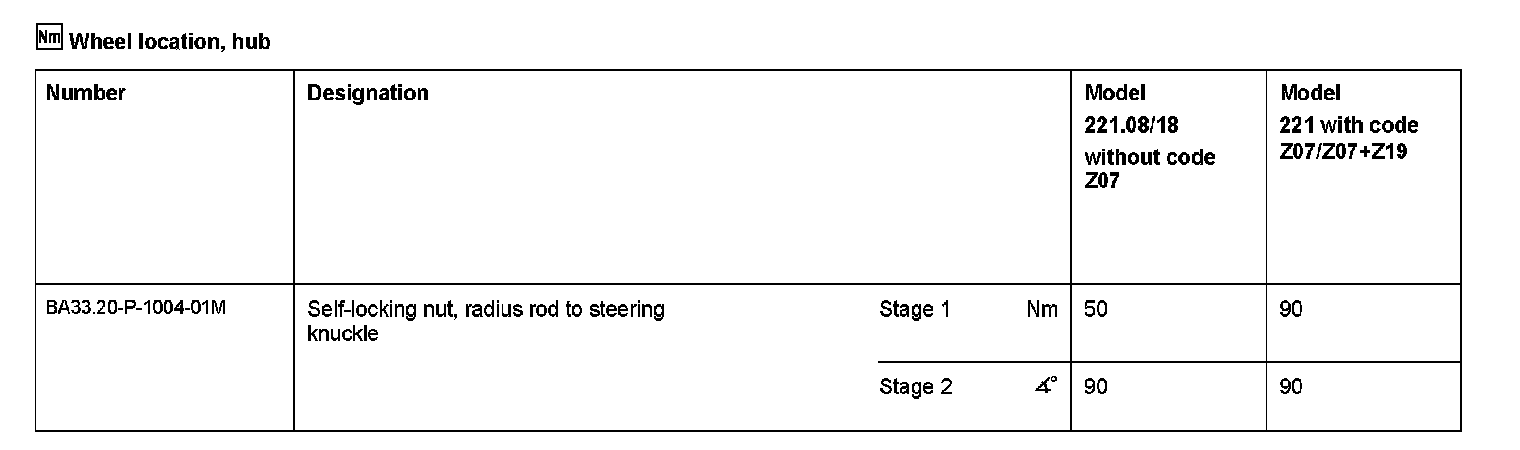

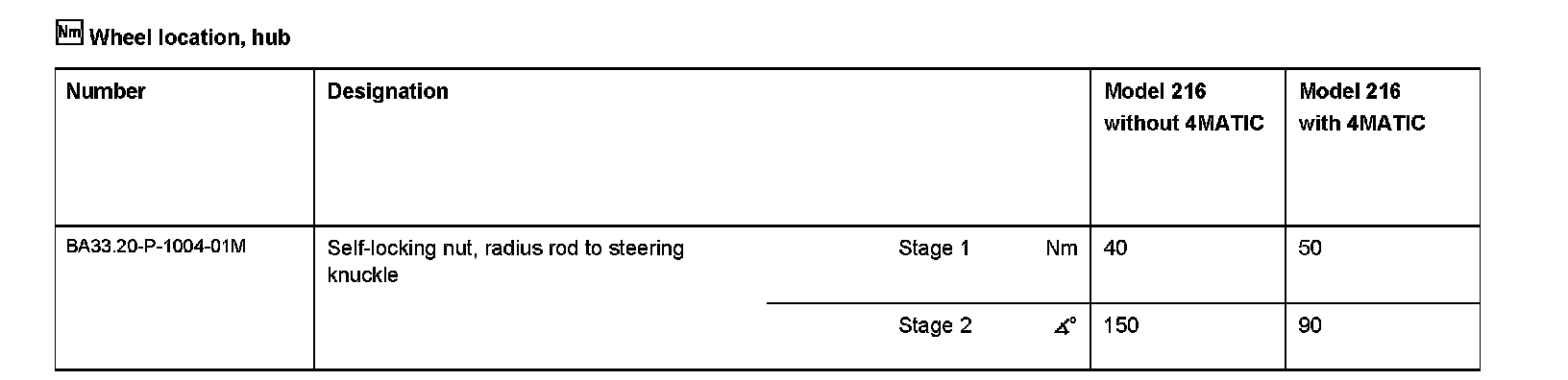

Wheel location, hub:

Special Tools:

Component Identification:

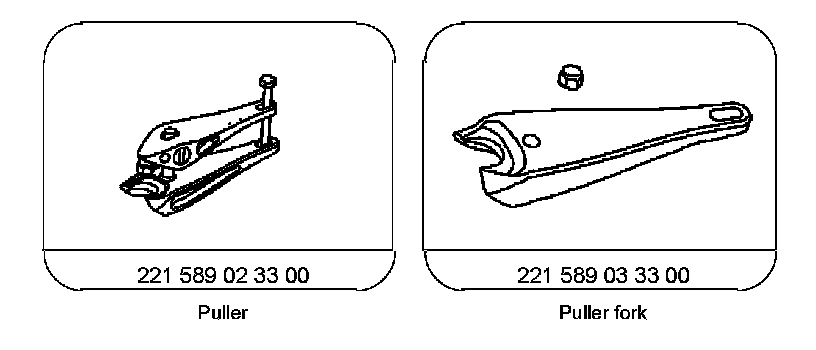

Puller 221 589 02 33 00 is required for all models.

Puller fork 221 589 03 33 00 only required for model 221 with maximum protection, code Z07
1 Unscrew self-locking nut from radius rod coupling.

Installation: Replace self-locking nut.

2 Screw thrust washer (044a) onto the radius rod coupling.

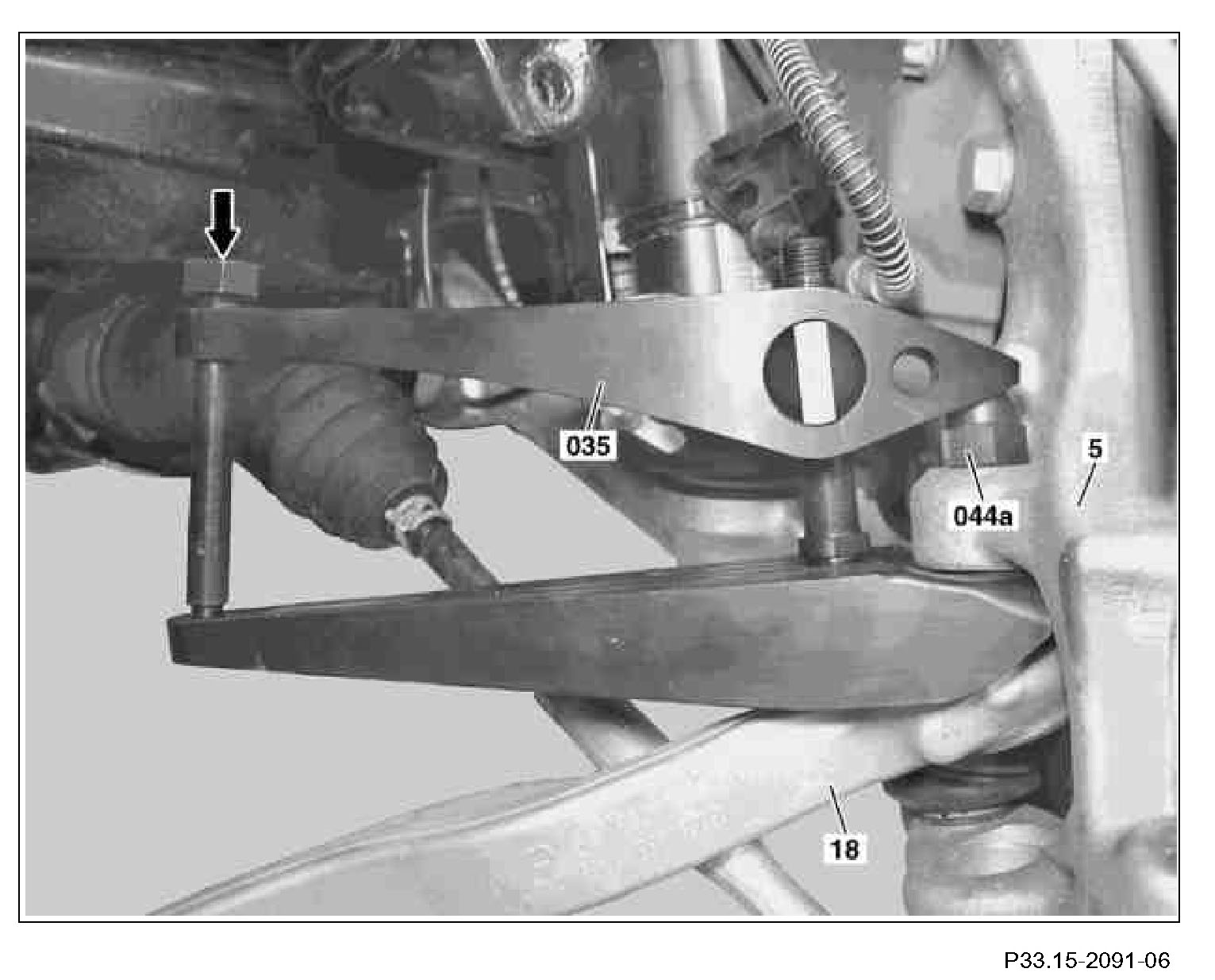

3 Apply the puller (035).
4 Press torque strut (18) out of steering knuckle (5) by turning spindle (arrow).

When pressing out, do not damage the rubber boot of the torque strut joint, otherwise the torque strut must be replaced.
