AR35.20-P-0114SX Remove/Install Spring Control Arm, Replace Rubber Bushing

AR35.20-P-0114SX Remove/Install Spring Control Arm, Replace Rubber Bushing
MODEL 221
MODEL 216

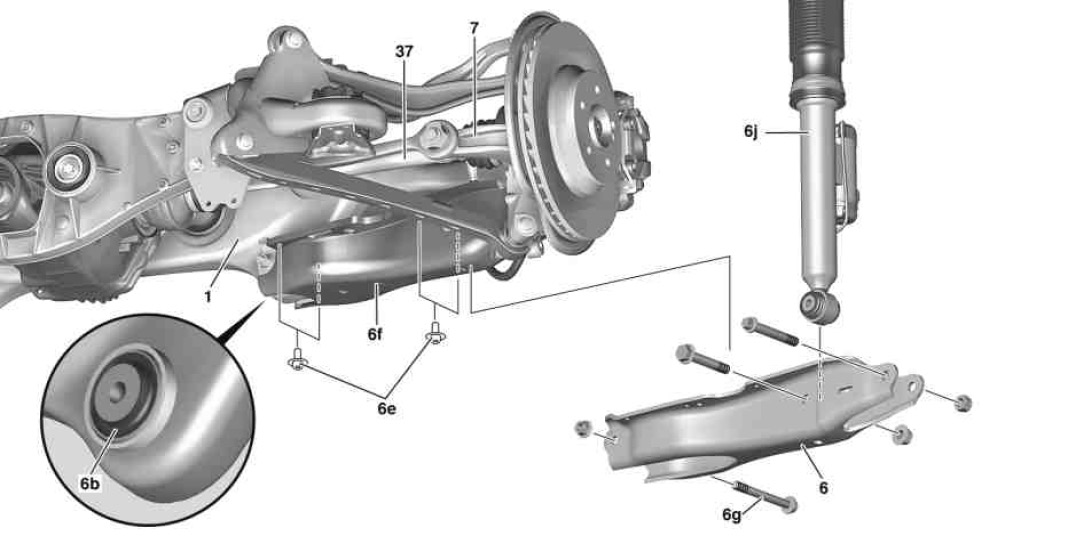

1 Rear axle carrier
6 Spring control arm
6b Rubber bushing
6e Expansion rivet
6f Cover
6g Screw
6j Suspension strut
7 Wheel carrier
37 Rear axle shaft




















202 589 01 31 00
Tensioning device





202 589 13 63 00
Clamping plates





220 589 01 43 00
Press out/in tool





202 589 04 43 00
Extraction tool
