AR35.20-P-0110SX Remove/Install Camber Strut



AR35.20-P-0110SX Remove/install camber strut

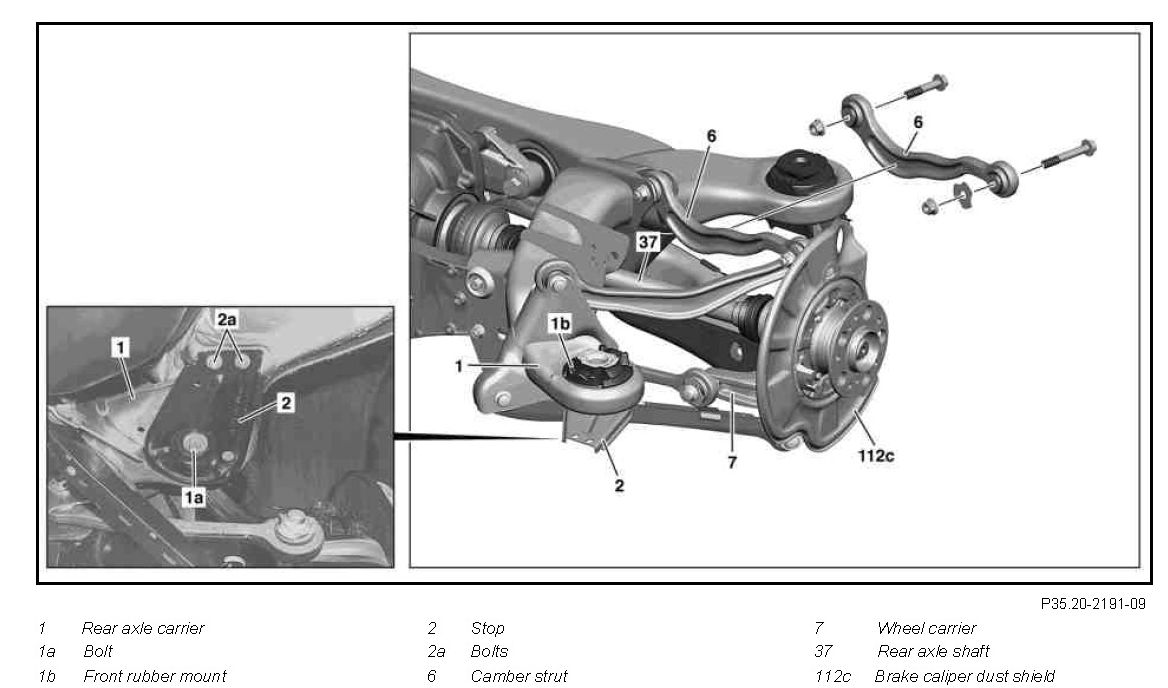

Component Identification:




Modification notes:

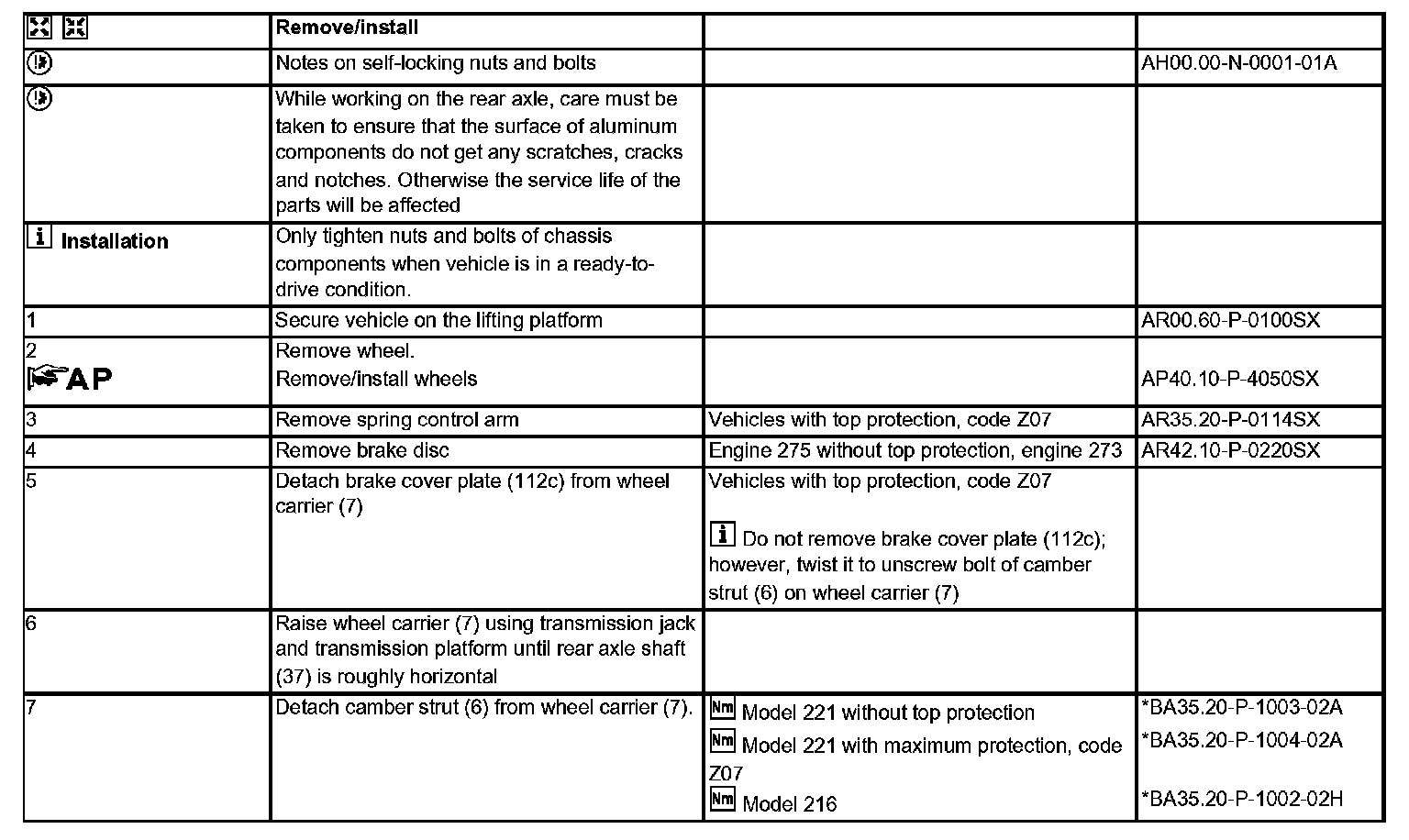

Remove/install Steps 1-7:

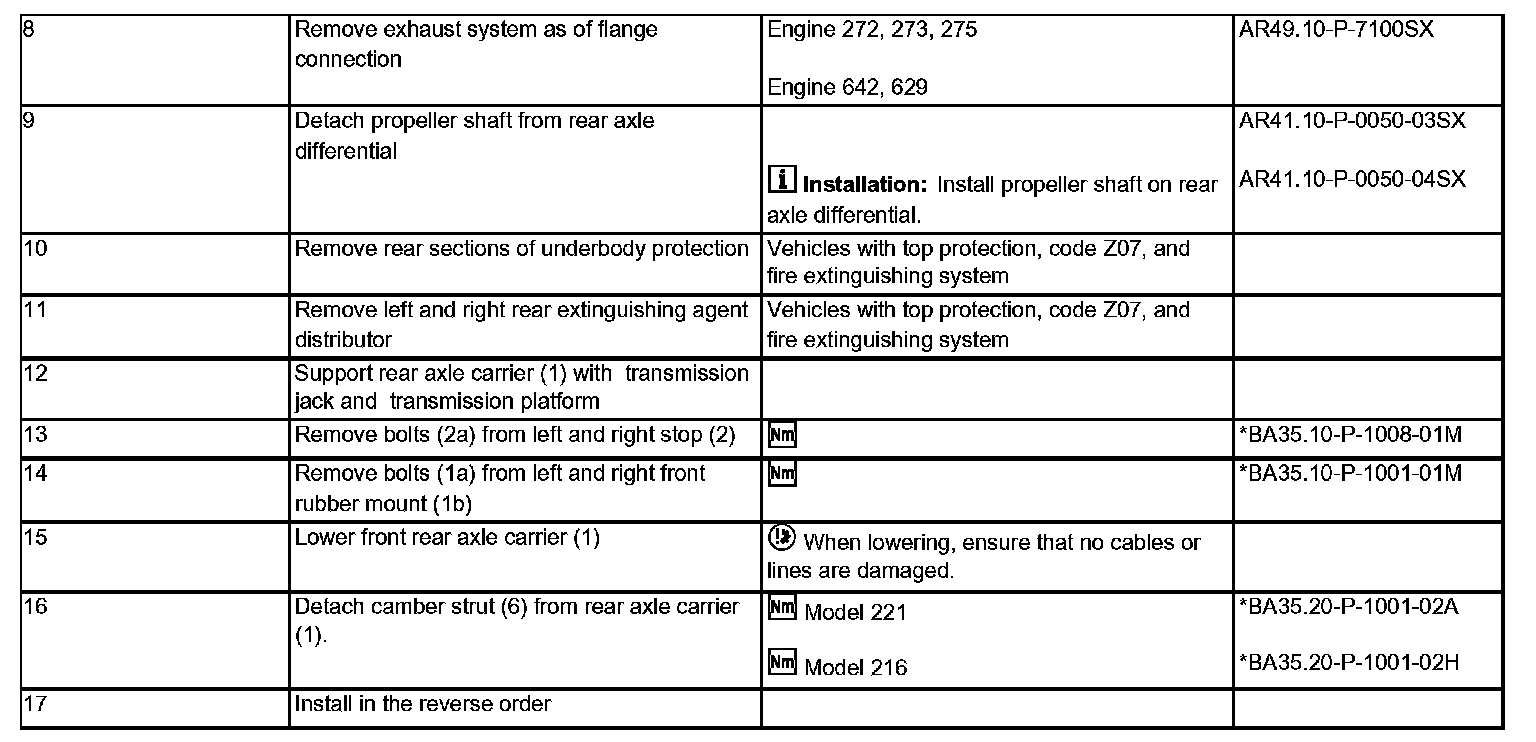

Remove/install Steps 8-17:

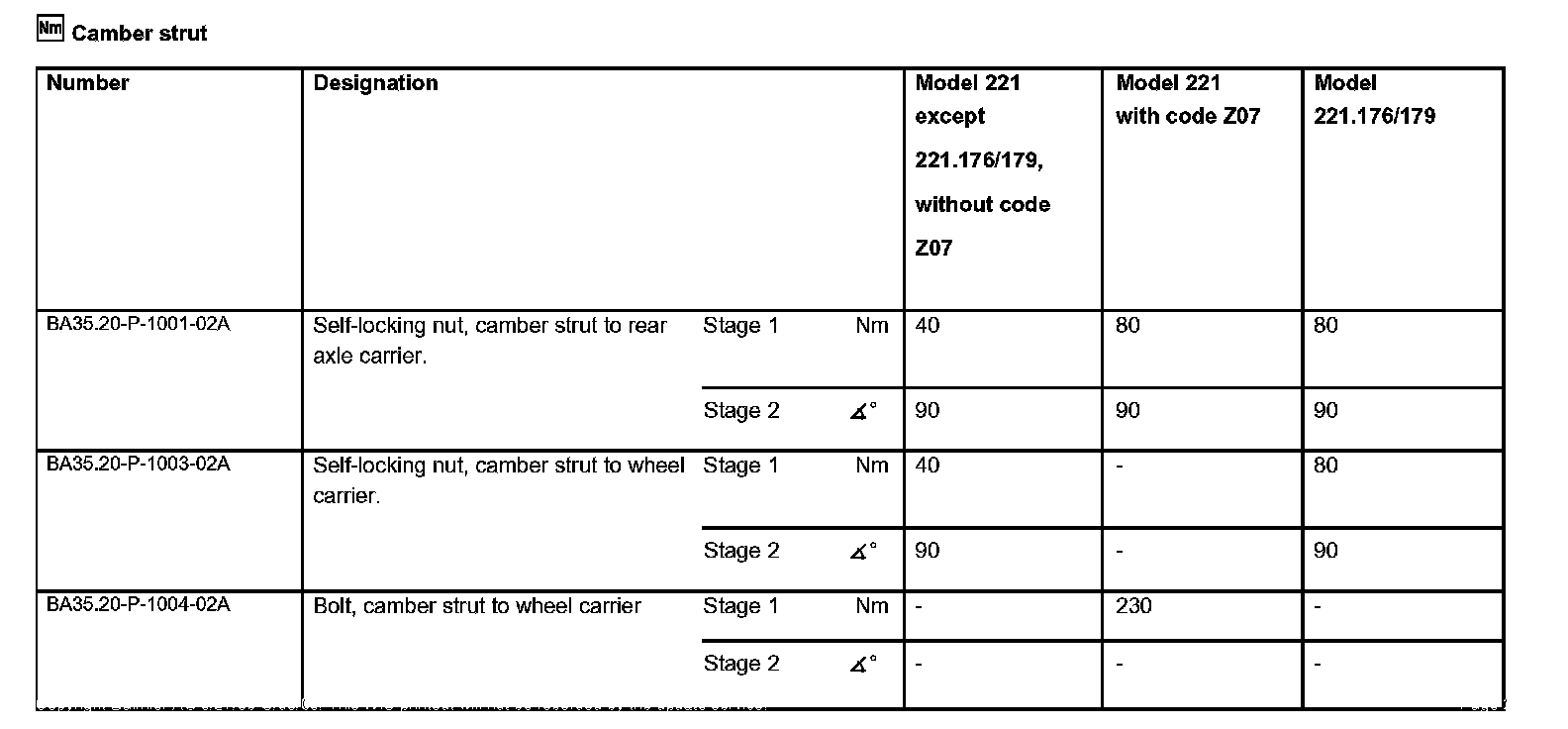

Camber strut:

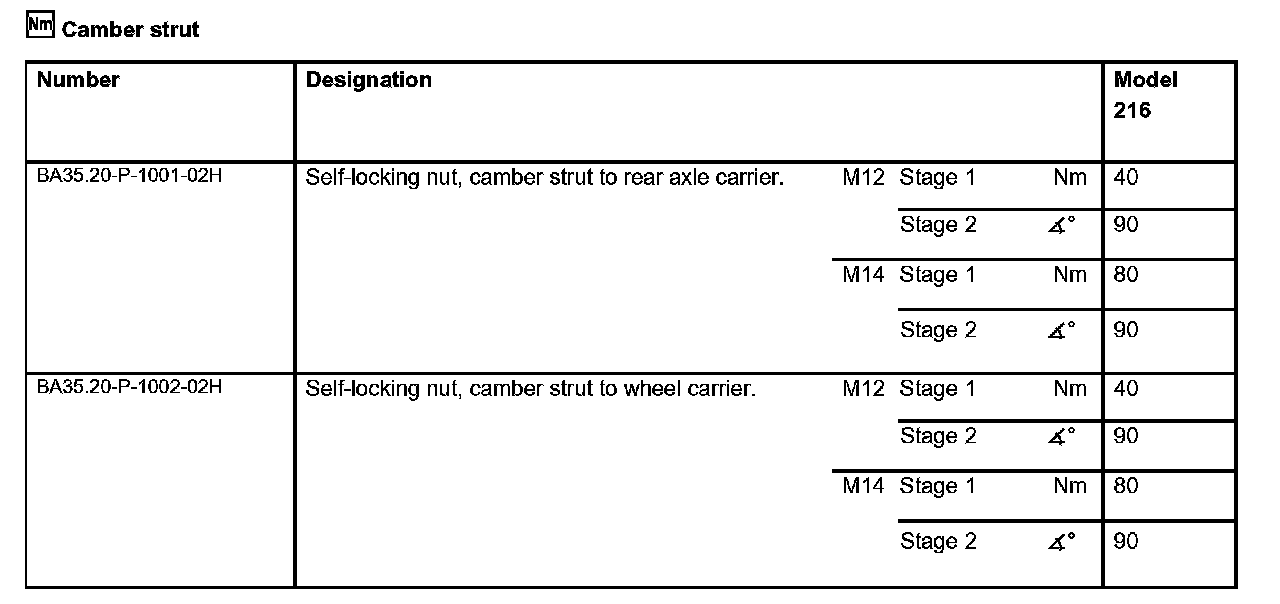

Camber strut:

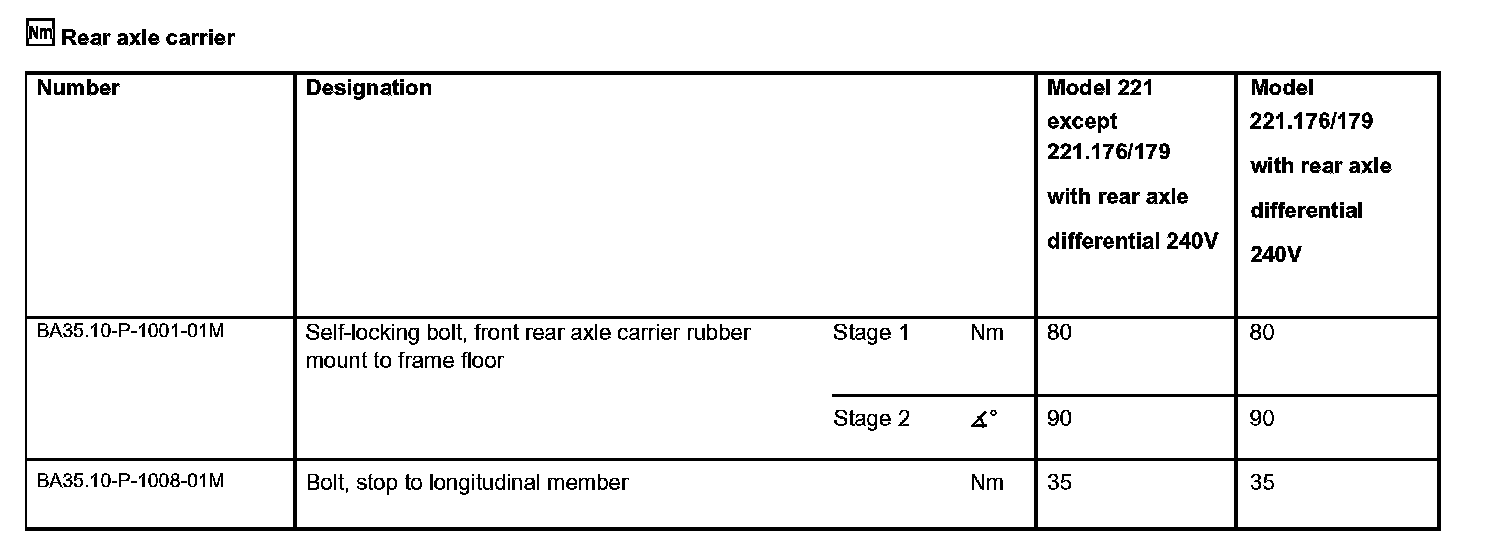

Rear axle carrier:

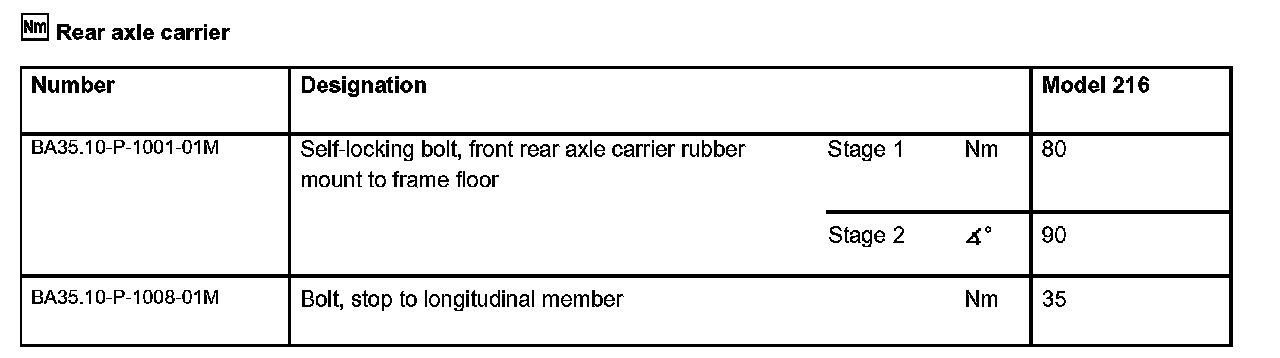

Rear axle carrier:
