AR33.20-P-0500SXS Remove/Install Upper Control Arm

AR33.20-P-0500SXS Remove/Install Upper Control Arm
MODEL 221.1
- with CODE (Z07) Top protection

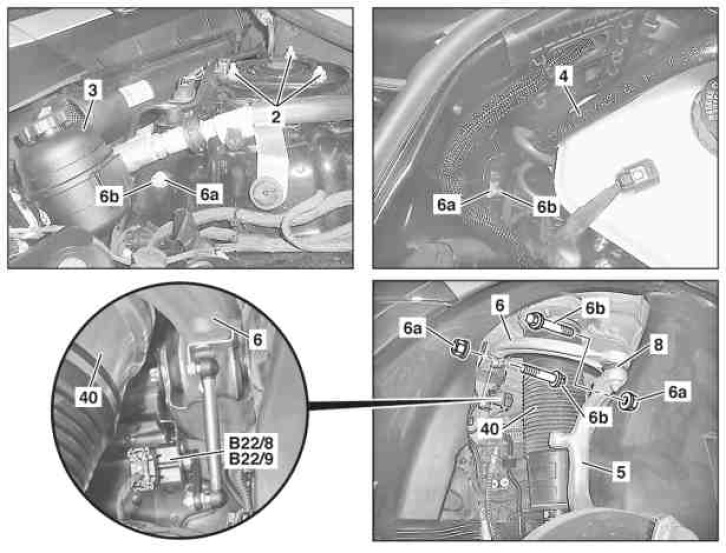

2 Nuts
3 Power steering reservoir
4 Vacuum line
5 Steering knuckle
6 Upper transverse control arm
6a Nuts
6b Bolts
8 Follower joint
40 Suspension strut

B22/8 Left front level sensor
B22/9 Right front level sensor

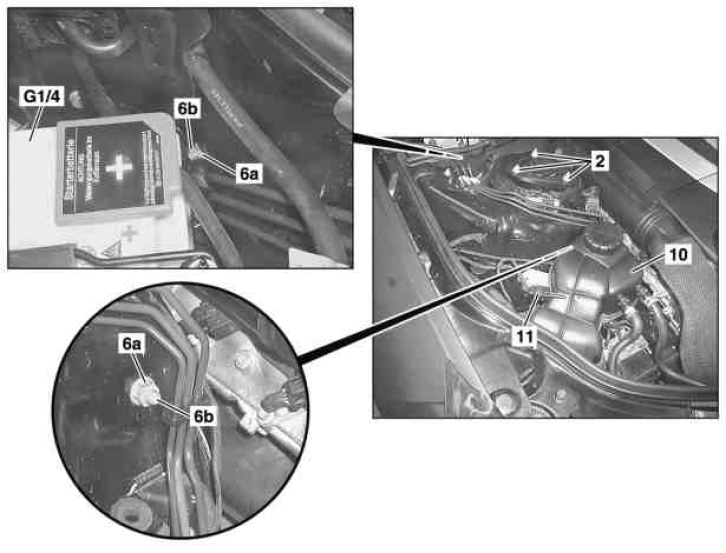

2 Nuts
6a Nuts
6b Bolts
10 Coolant expansion reservoir
11 Electrical connector

G1/4 Starter battery














001 589 00 16 00
Plug-in joint adapter





003 589 05 09 00
Torque tool set





003 589 06 09 00
Plug-in wrench
