AR33.15-P-0170SYZ Remove/Install Spring Control Arm on Front Axle



AR33.15-P-0170SYZ Remove/install spring control arm on front axle

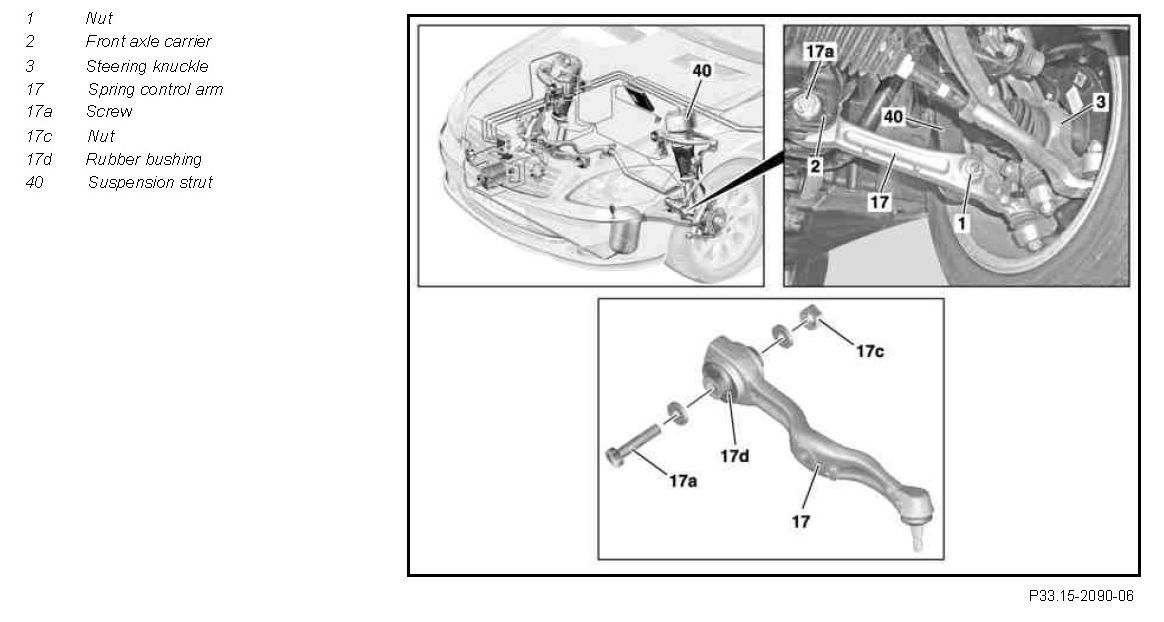

Component Identification:

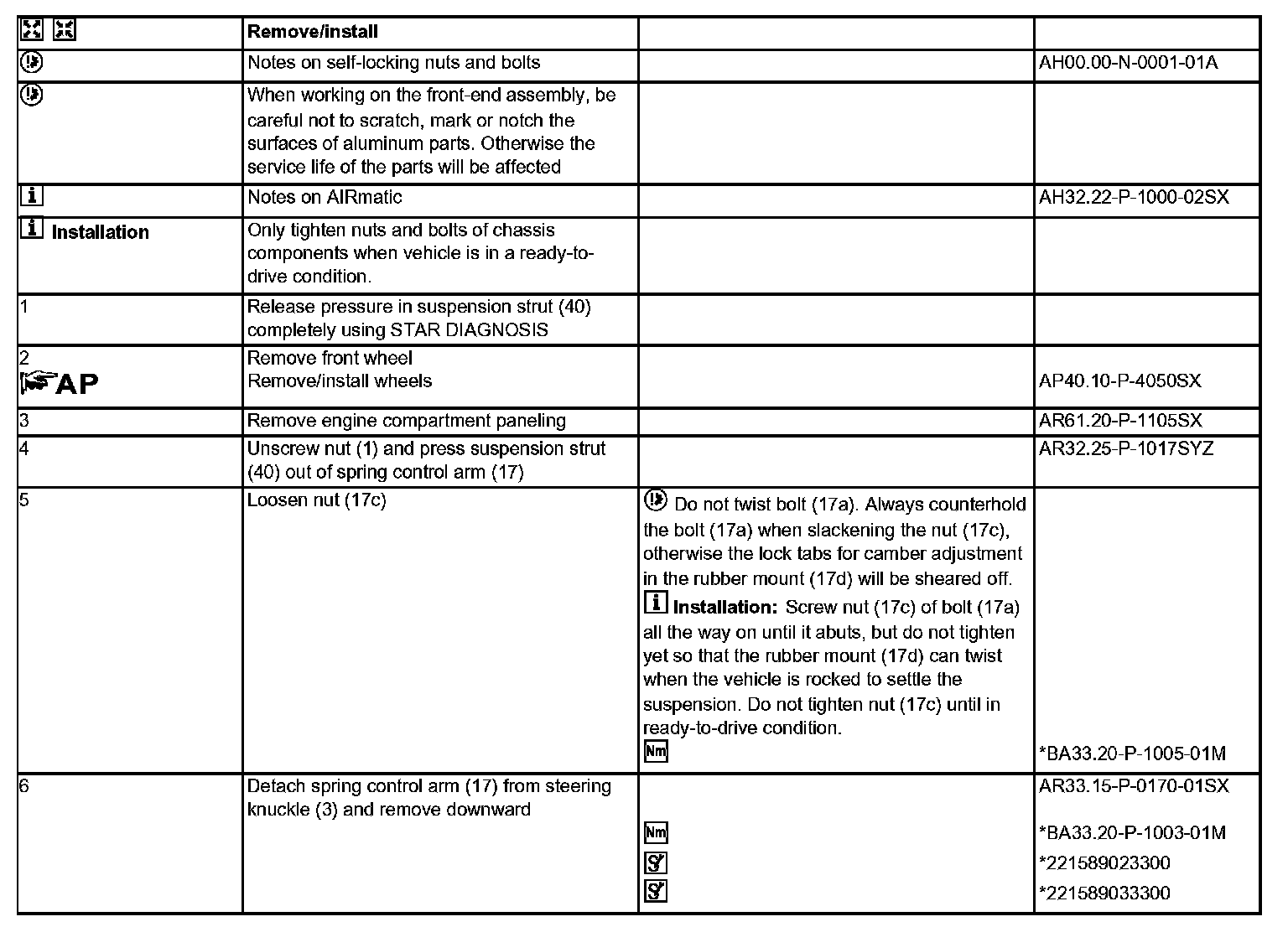

Remove/install Steps 1-6:

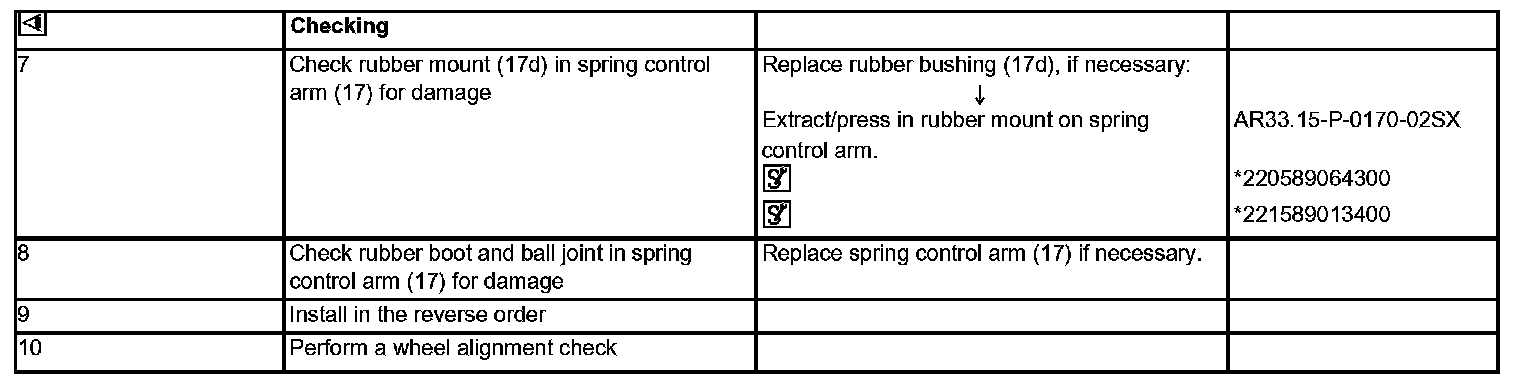

Remove/install Steps 7-10:

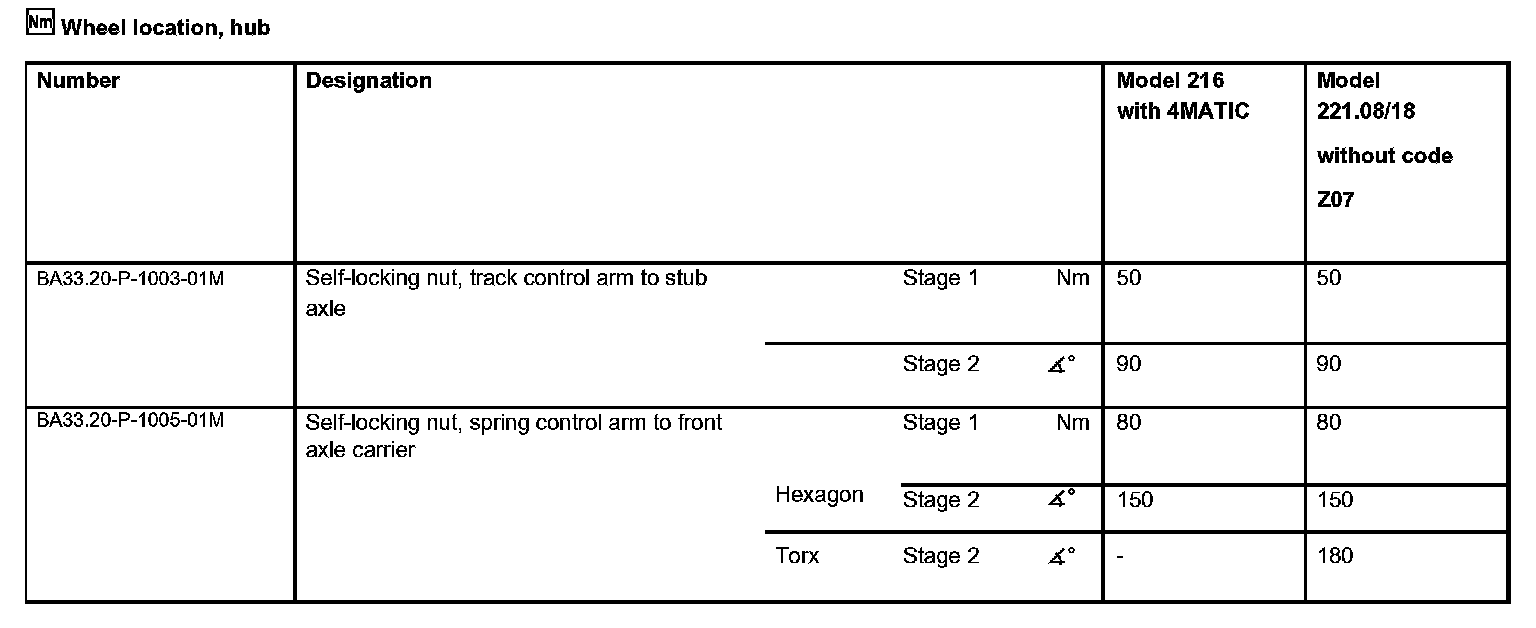

Wheel location, hub:

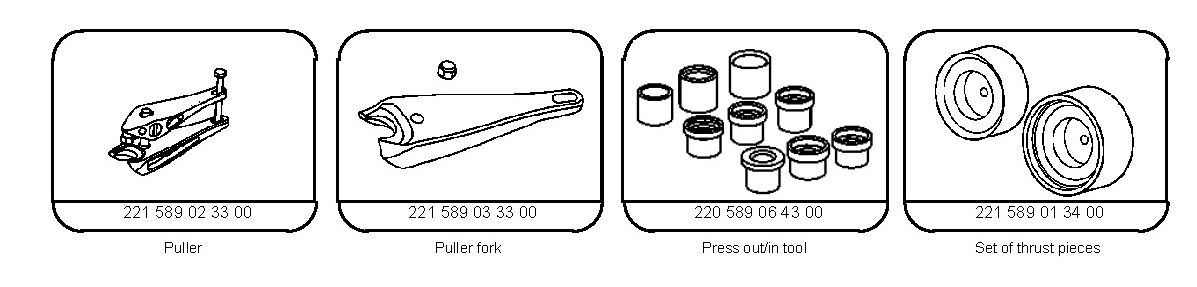

Special Tools:
