Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Service and Repair >> Removal and Replacement >> AR33.15-P-0170SXS Remove/Install Spring Control Arm on Front Axle

AR33.15-P-0170SXS Remove/Install Spring Control Arm on Front Axle



AR33.15-P-0170SXS Remove/install spring control arm on front axle
- with CODE (Z07) Top protection

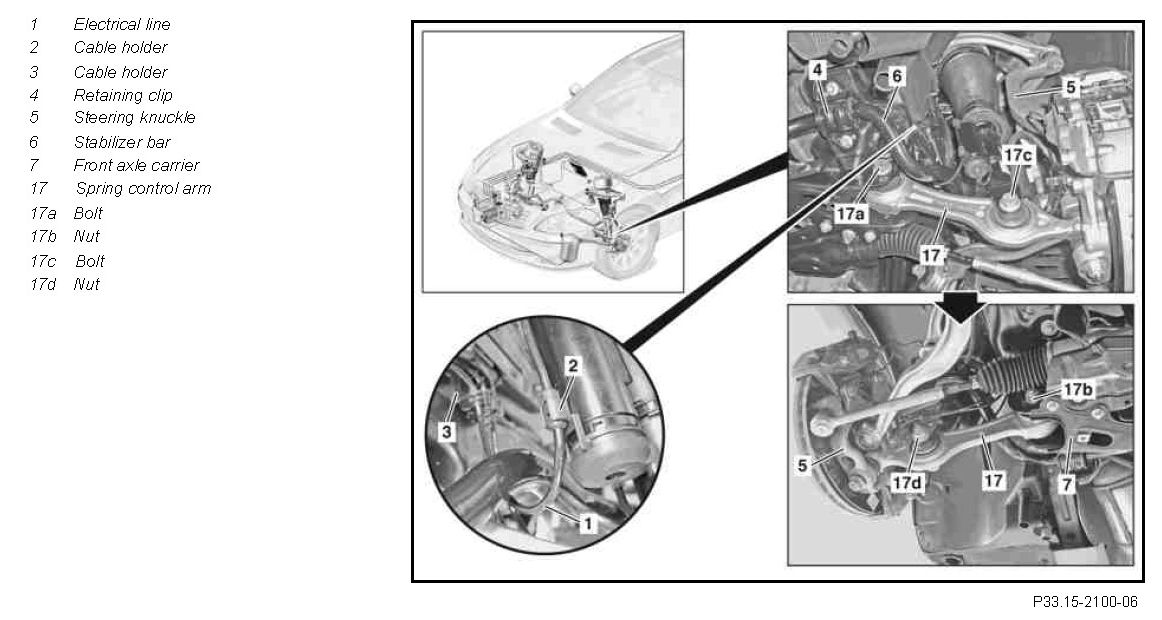

Component Identification:

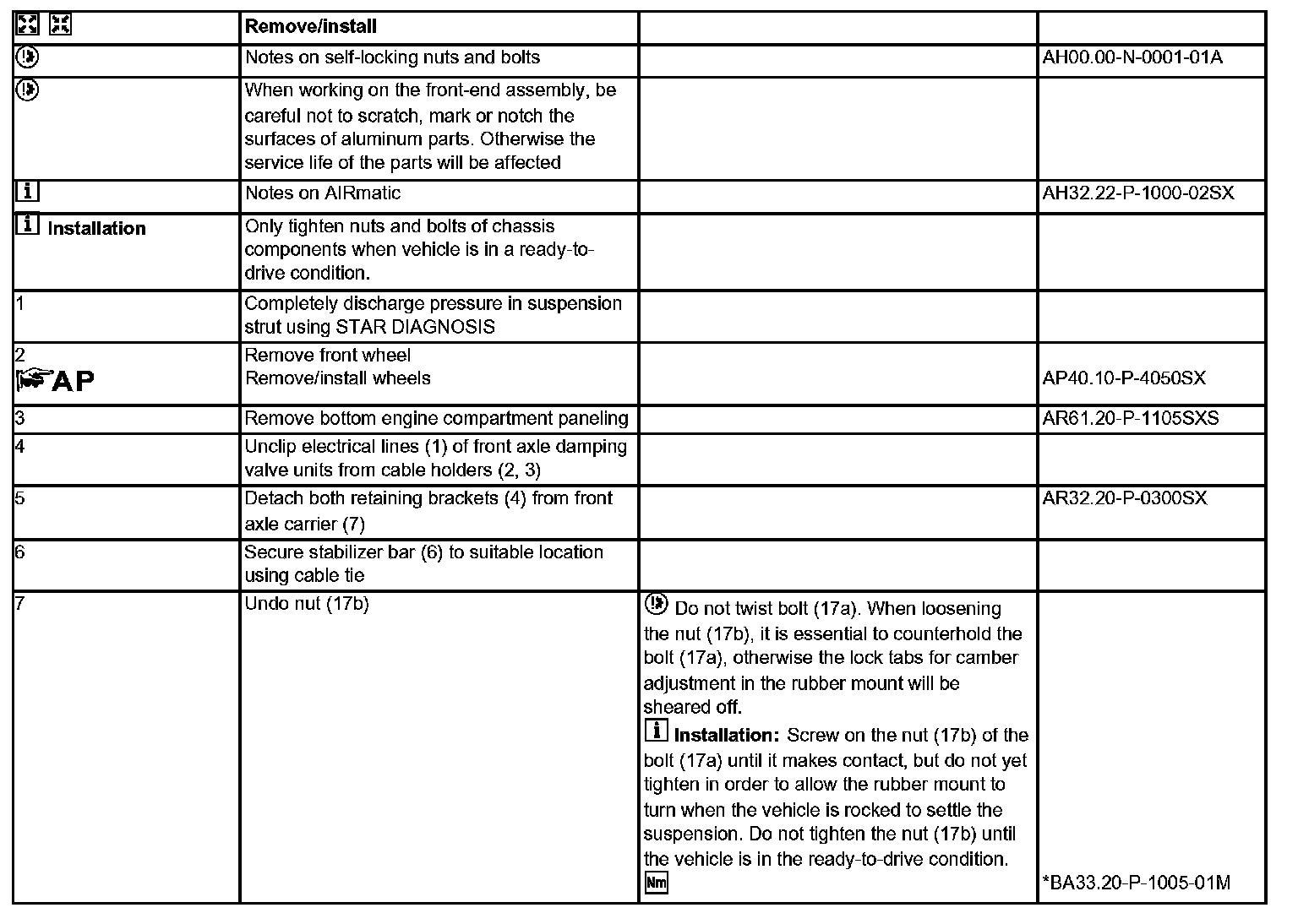

Remove/install Steps 1-7:

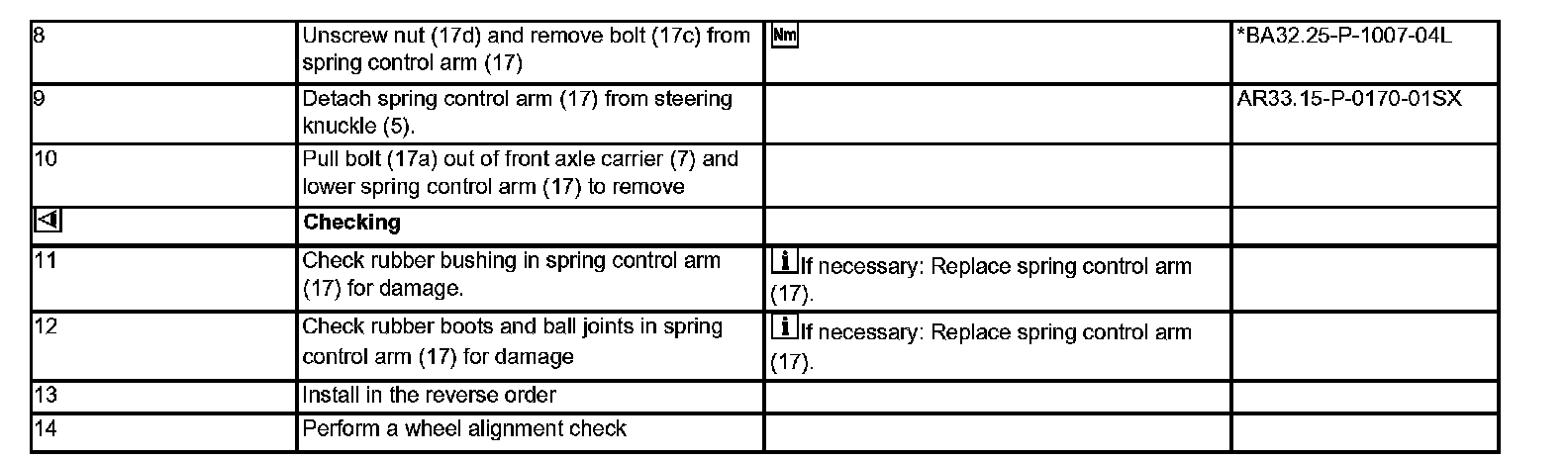

Remove/install Steps 8-14:

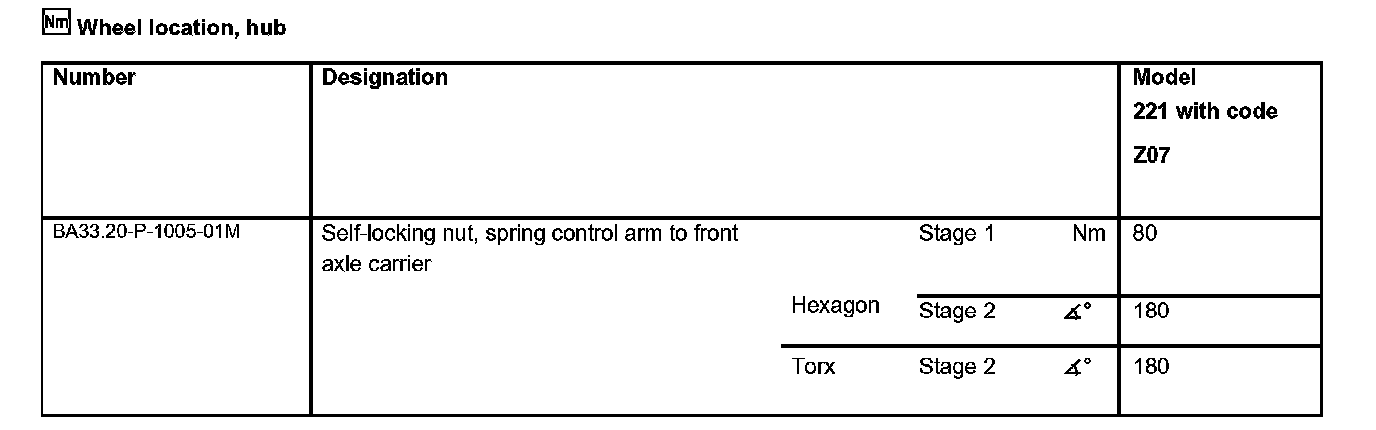

Wheel location, hub:

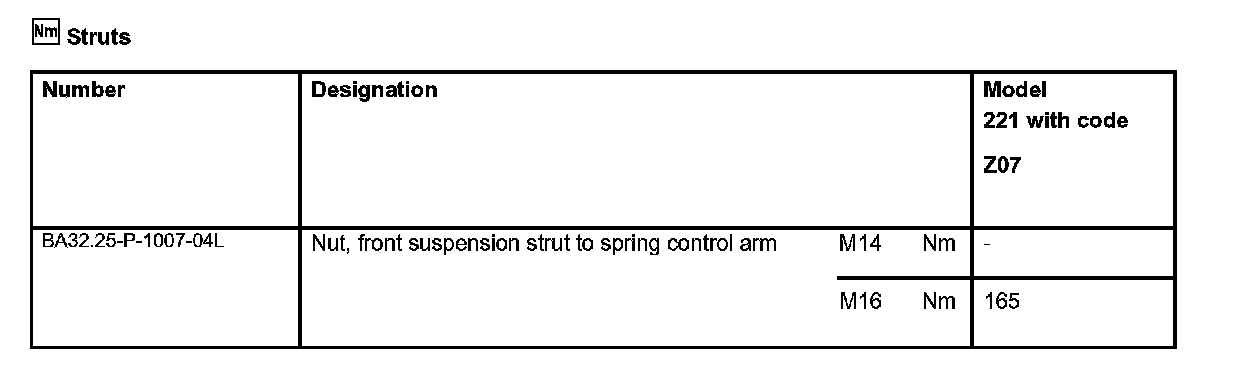

Struts:
