AR33.15-P-0170-02SX Insertion/Extraction of the Rubber Bushing on the Track Control Arm

AR33.15-P-0170-02SX Insertion/extraction of the rubber bushing on the track control arm
- except CODE (Z07) Top protection [model 221]

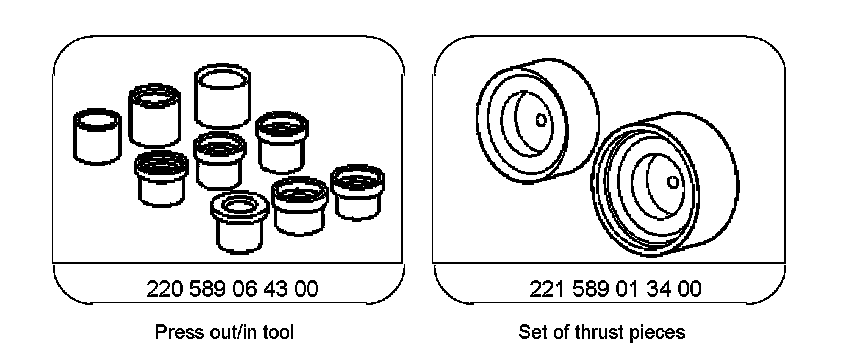

Special Tools:

Component Identification:

Press out

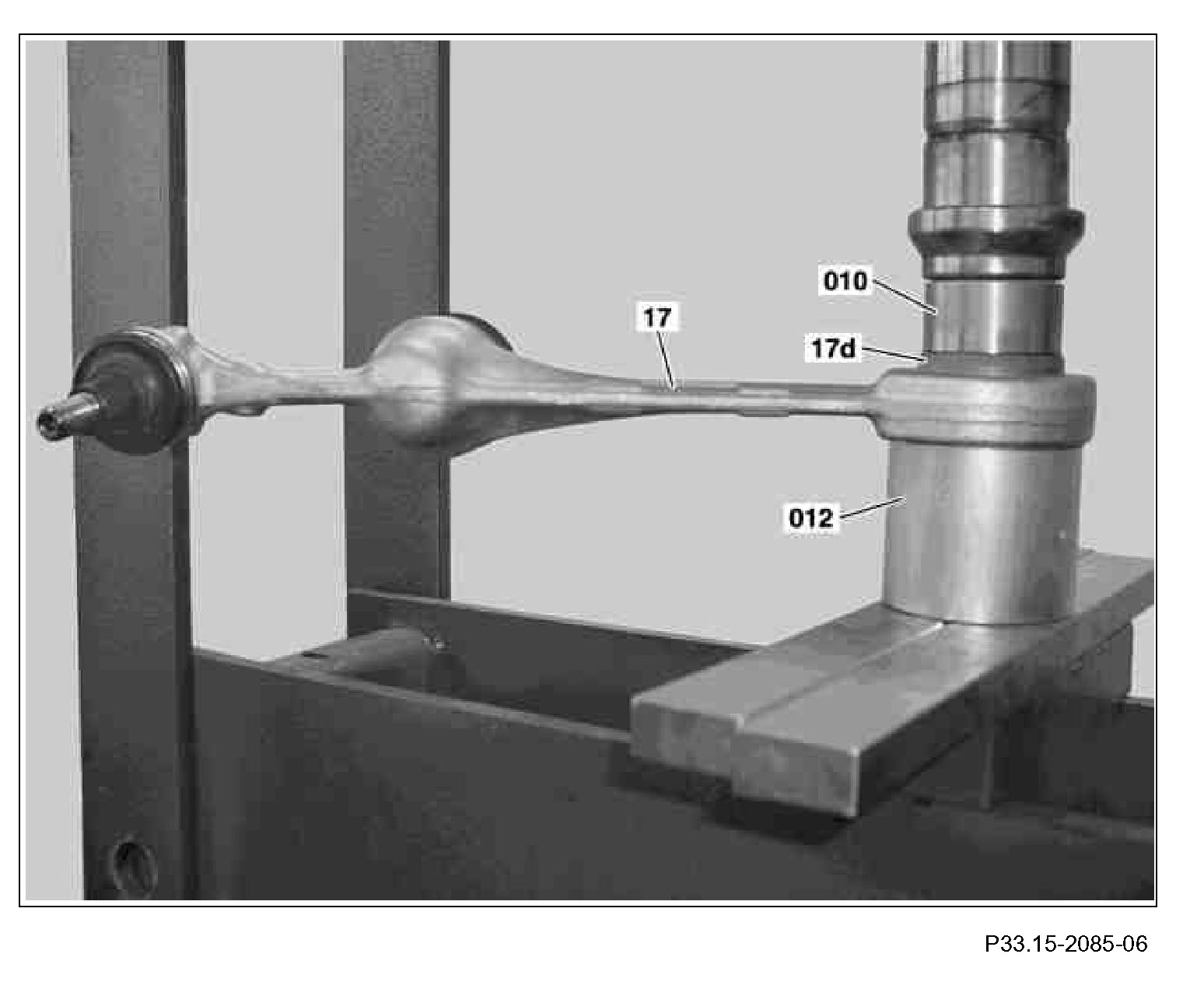

1 Press out rubber mount (17d) using thrust pieces (010, 012).

The press out/in tool 220 589 06 43 00 contains:

- thrust piece (012), part number 220 589 06 43 02.
The thrust piece set 221 589 01 34 00 contains:

- thrust piece (010), part number 221 589 01 43 01.

Component Identification:

Pressing in
2 Press in rubber mount (17d) using thrust pieces (011, 012) far enough until the collar of the thrust piece (011) abuts with the spring control arm (17).

The press out/in tool 220 589 06 43 00 contains:

- thrust piece (012), part number 220 589 06 43 02.
The thrust piece set 221 589 01 34 00 contains:

- thrust piece (011), part number 221 589 01 43 02.
