AR35.20-P-0116SX Remove/Install Supporting Joint at Wheel Carrier (Wheel Carrier Installed)



AR35.20-P-0116SX Remove/install supporting joint at wheel carrier (wheel carrier installed)
- except CODE (Z07) Top protection [MODEL 221]

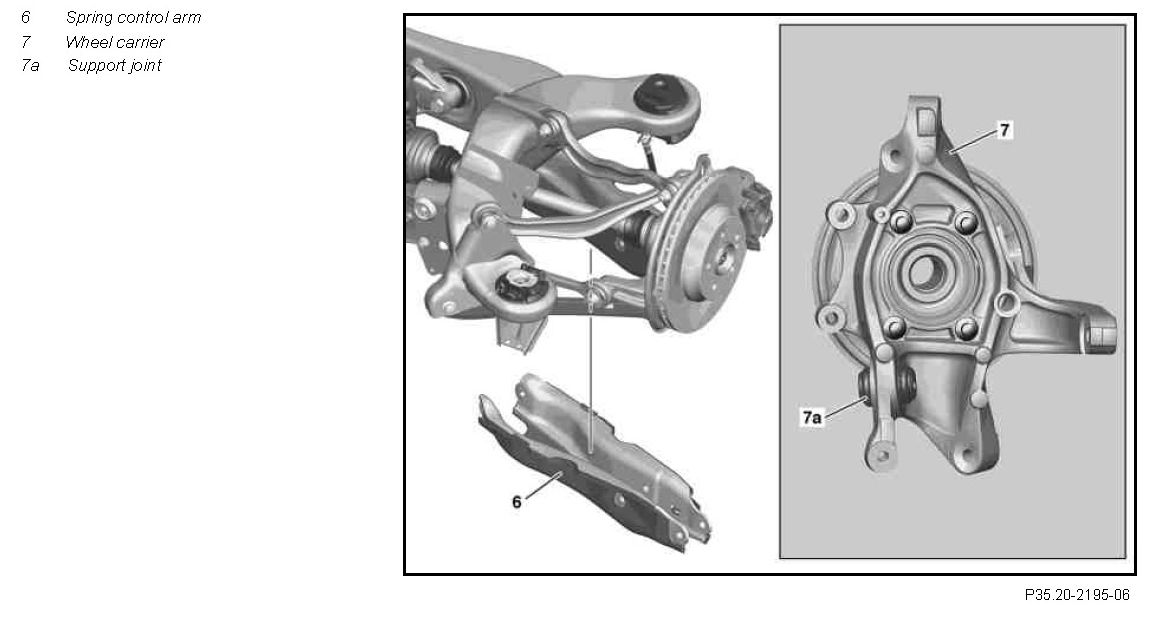

Component Identification:

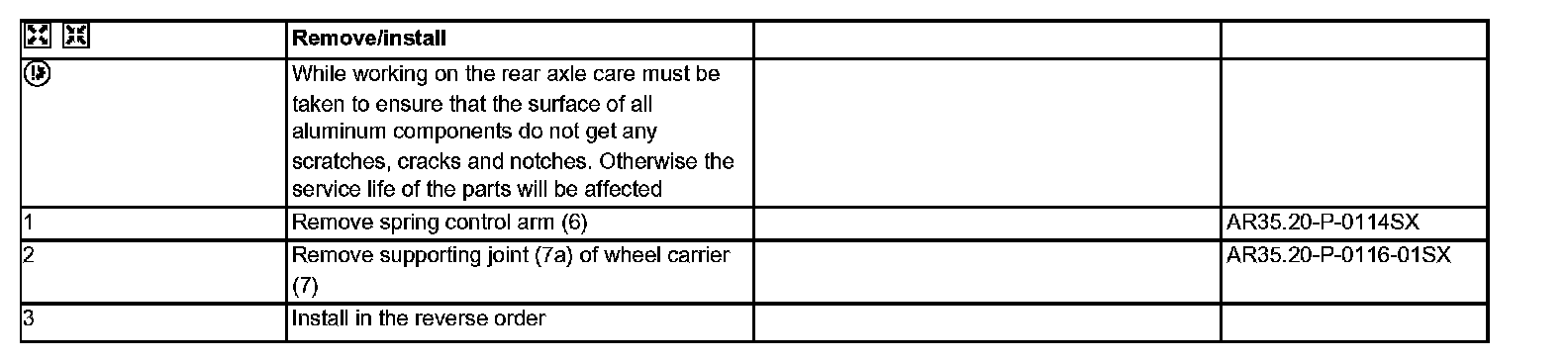

Remove/install Steps 1-3:
