AR46.40-P-0200SX Remove/Install Track Rod
AR46.40-P-0200SX Remove/Install Track Rod
AR46.40-P-0200SX Remove/install track rod

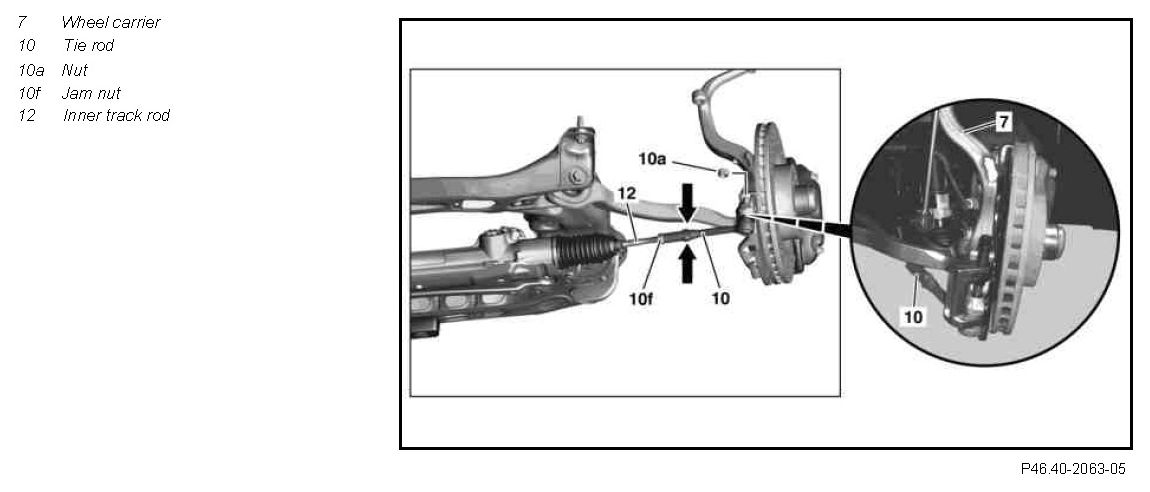

Component Identification:

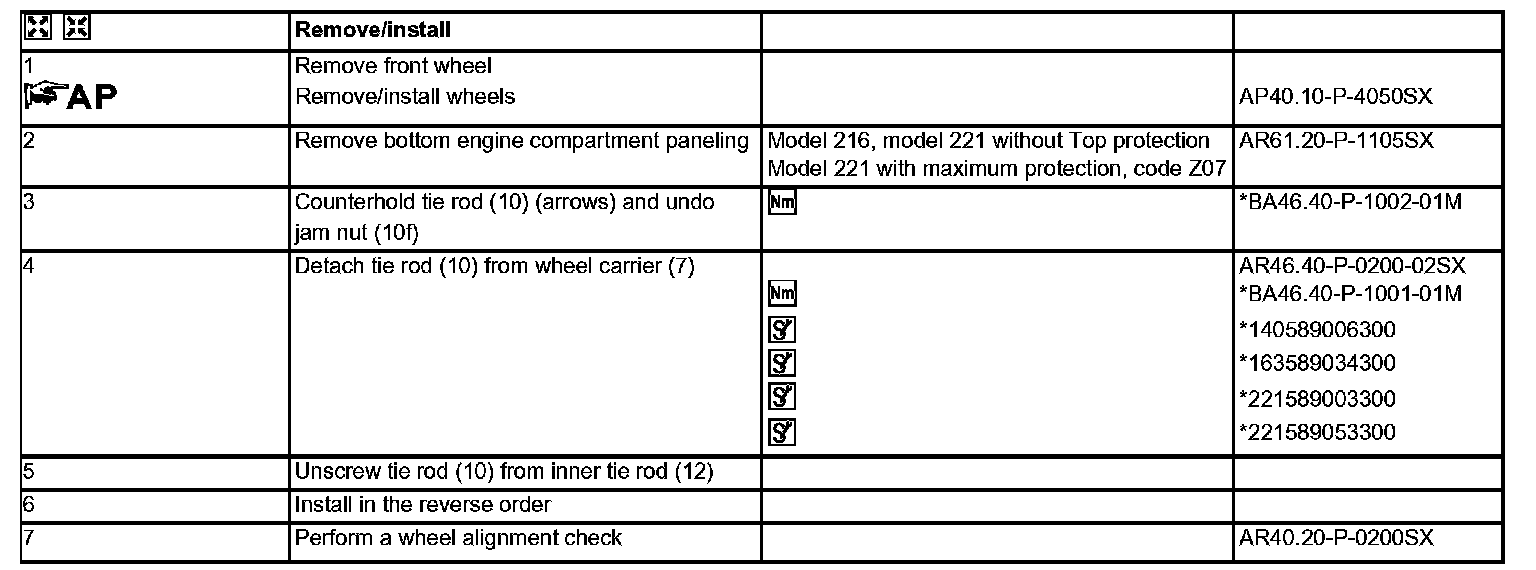

Remove/install Steps 1-7:

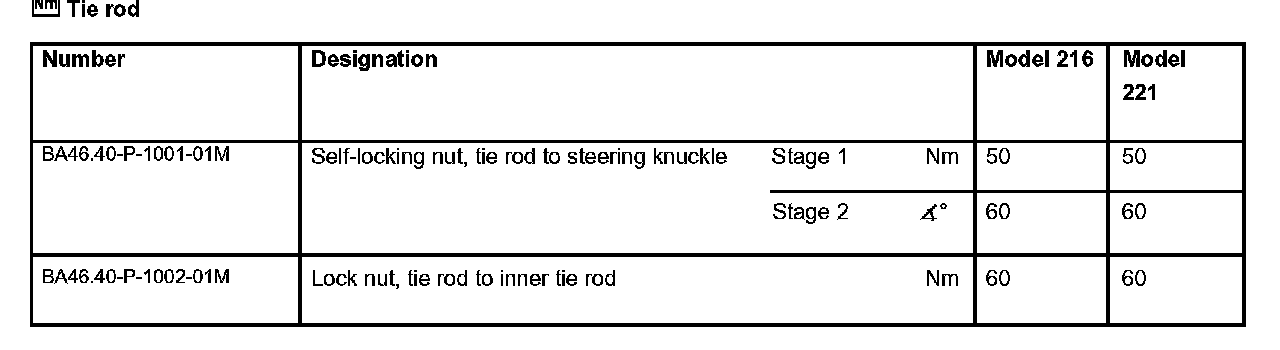

Tie rod:

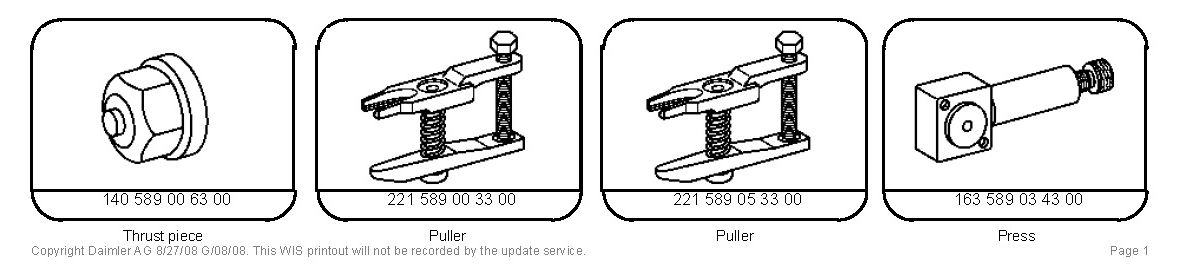

Special Tools:
