Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> AP46.00-P-4653SX Check Track Rod and Drag Link Linkage For Play, Check Rubber Boots

AP46.00-P-4653SX Check Track Rod and Drag Link Linkage For Play, Check Rubber Boots



AP46.00-P-4653SX Check track rod and drag link linkage for play, check rubber boots

Component Identification:

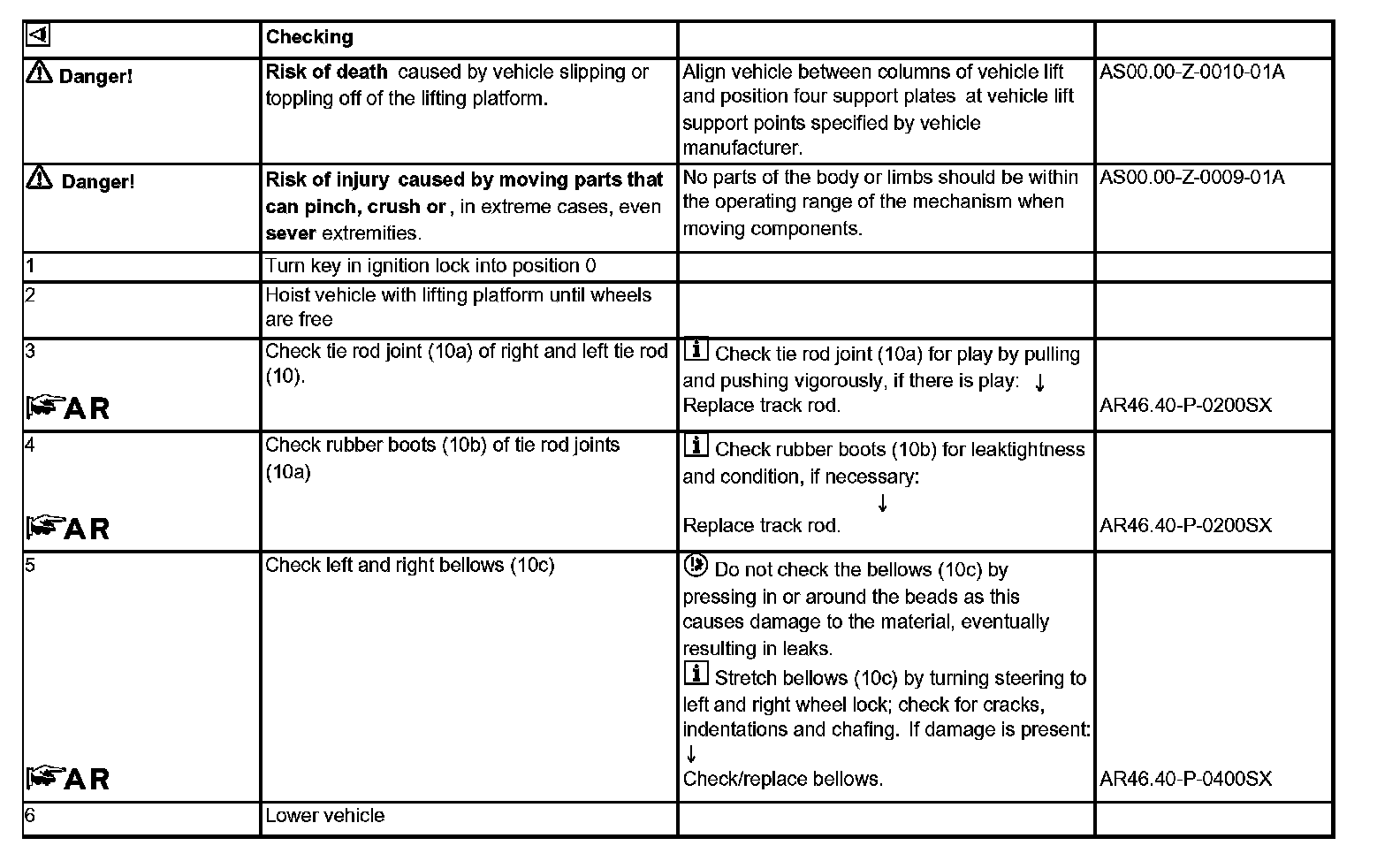

Steps 1-6:
