AR46.20-P-0600-01SX Turn Rack-and-Pinion Steering to Center Position and Mount Steering Coupling

AR46.20-P-0600-01SX Turn rack-and-pinion steering to center position and mount steering coupling





1 Turn rack-and-pinion steering to center position.

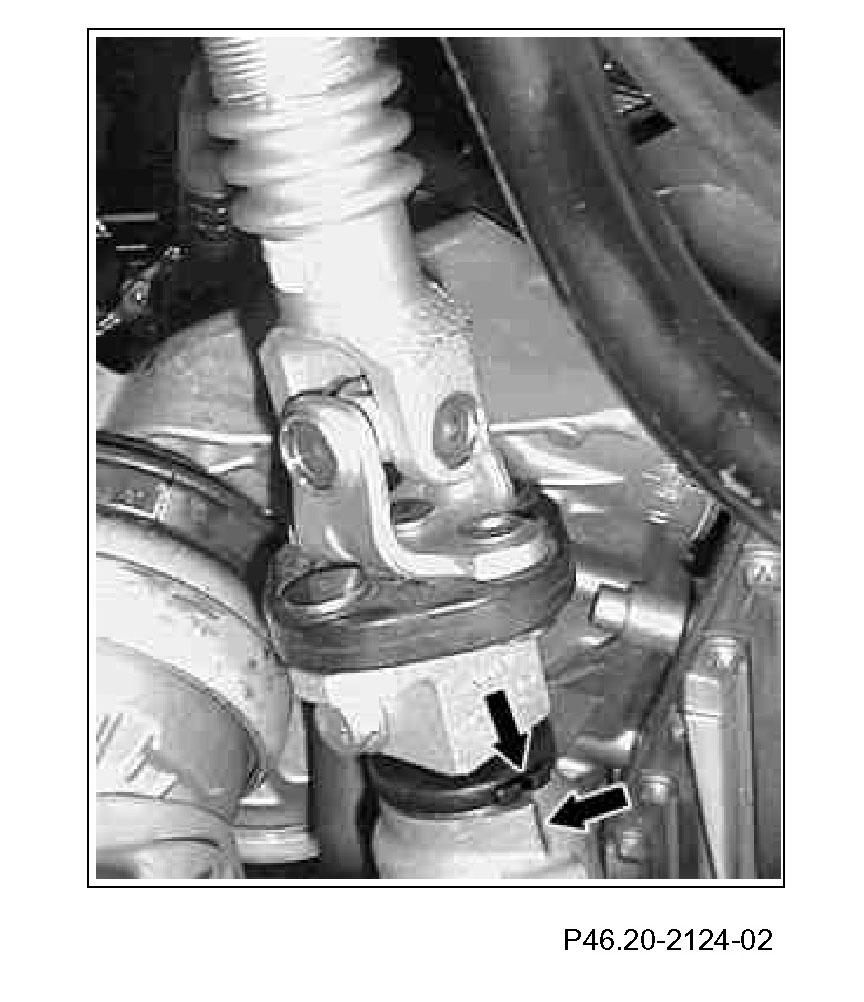

Turn rack-and-pinion steering far enough for the marking on the cover cap to line up with the marking on the control valve casing (arrows).

2 Mount steering coupling.
