AR46.10-P-8000SX Remove/Install Steering Coupling
AR46.10-P-8000SX Remove/Install Steering Coupling
AR46.10-P-8000SX Remove/install
steering
coupling

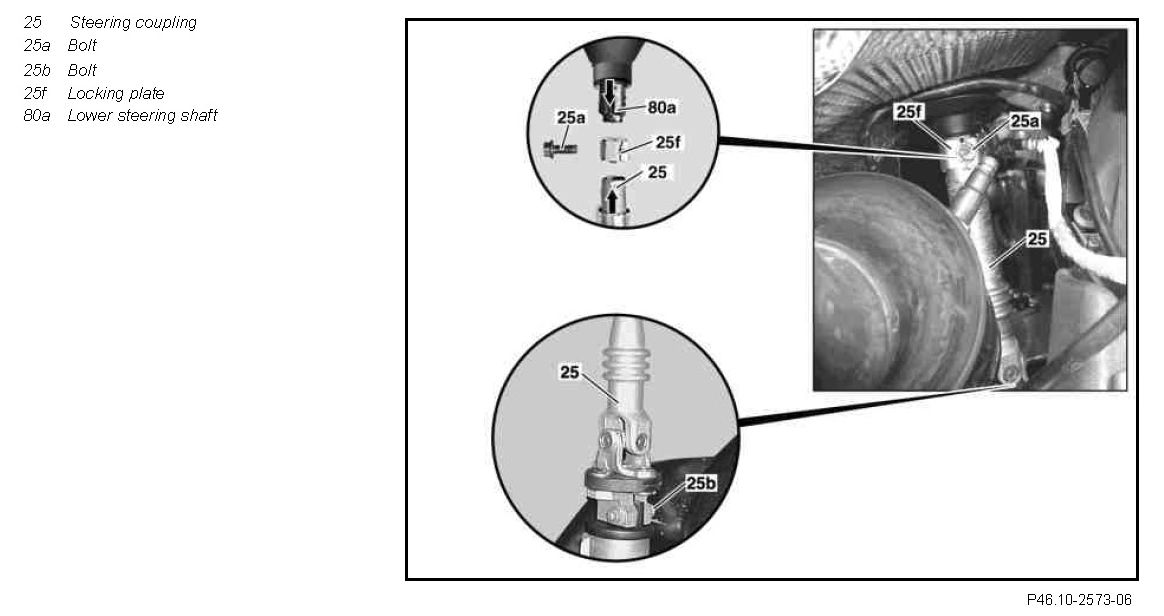

Component Identification:

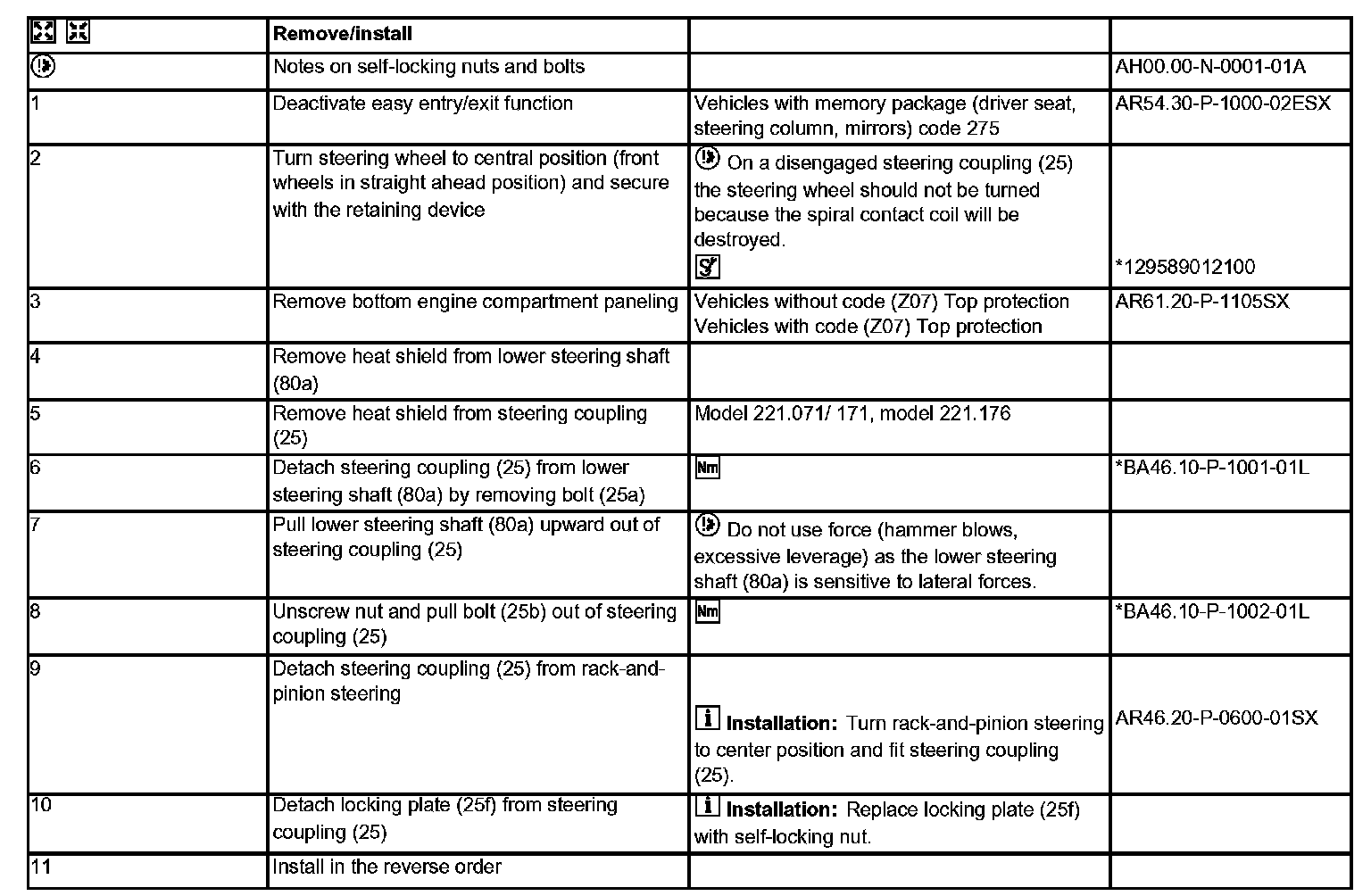

Remove/install Steps 1-11:

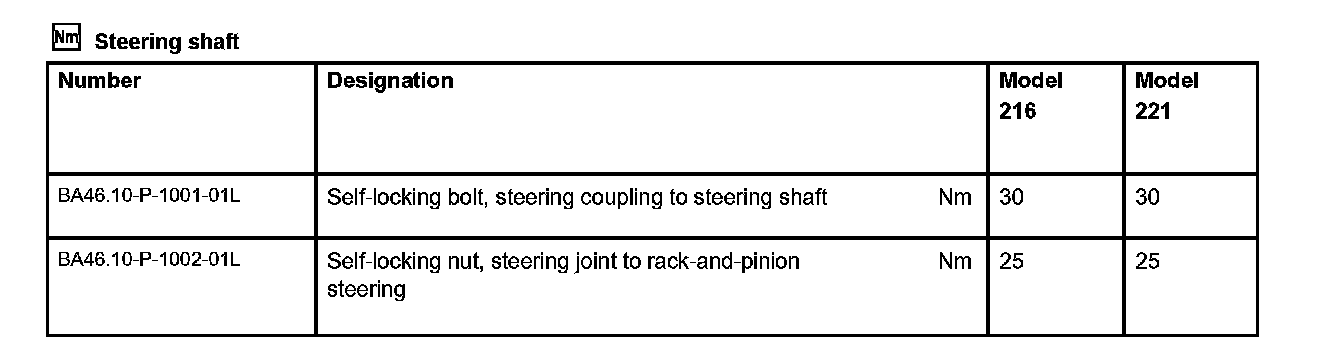

Steering shaft:

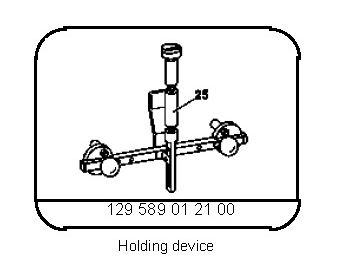

Special Tools:
