AR46.50-P-6000SX Remove/Install SPS Solenoid Valve
AR46.50-P-6000SX Remove/Install SPS Solenoid Valve
AR46.50-P-6000SX Remove/install SPS solenoid valve

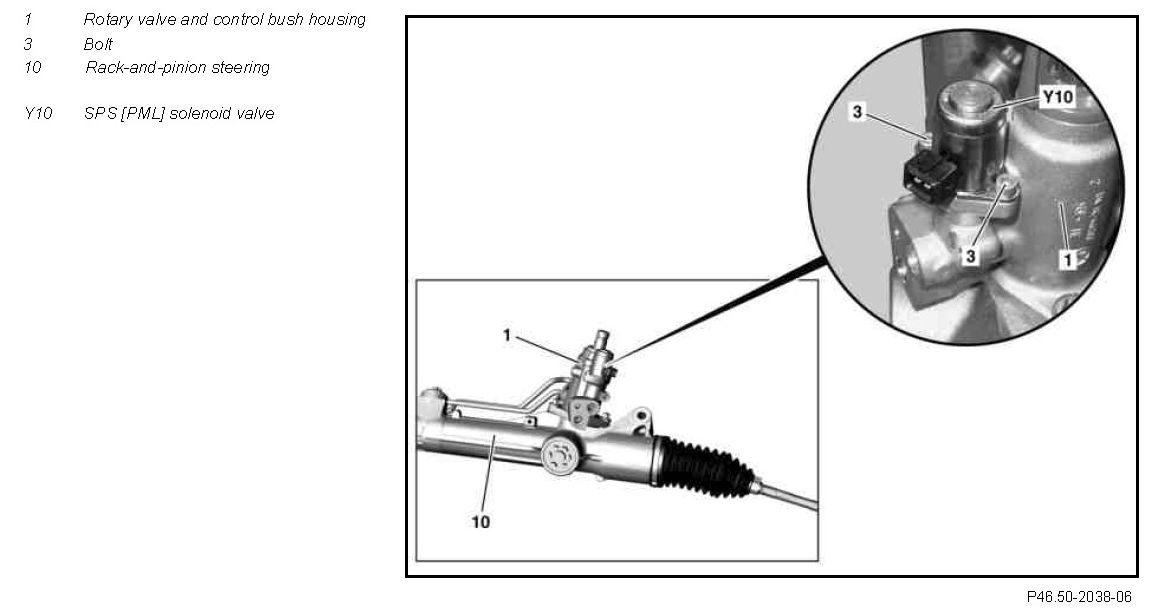

Component Identification:

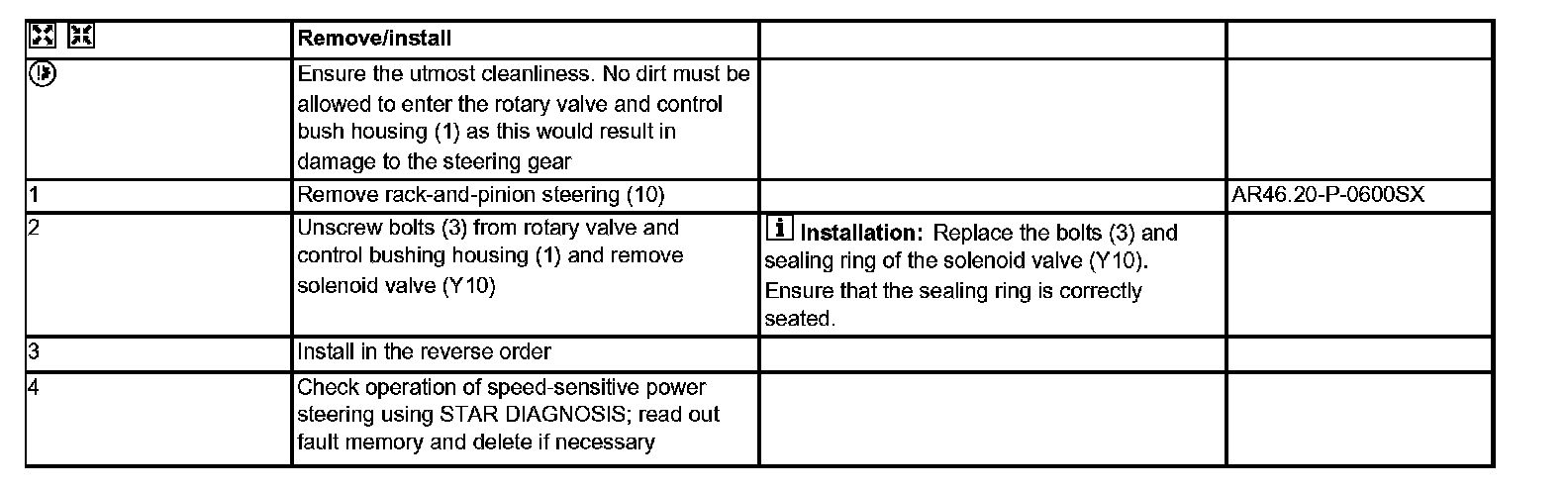

Remove/install Steps 1-4:
