AR46.40-P-0201SX Remove/Install Inner Tie Rod With Axial Joint



AR46.40-P-0201SX Remove/install inner tie rod with axial joint

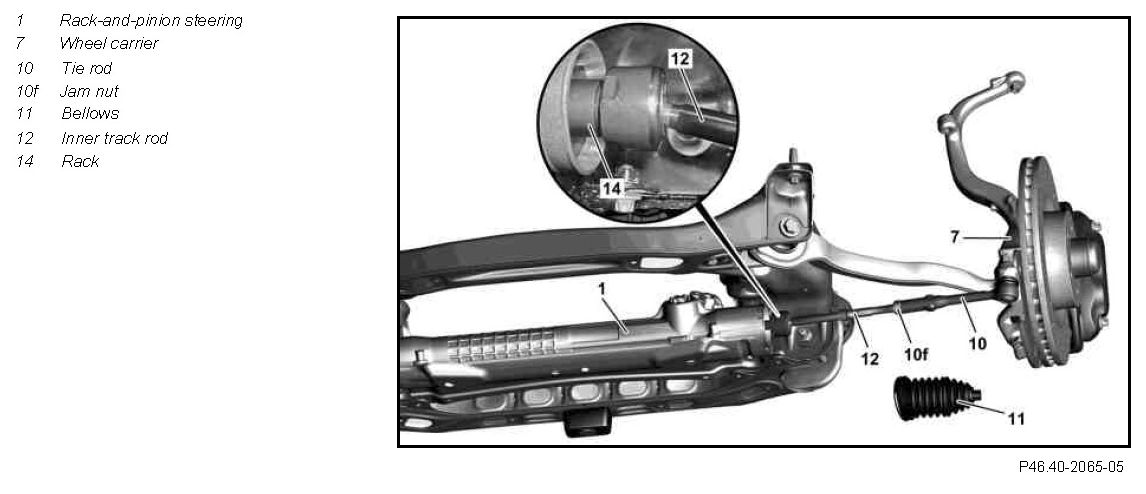

Component Identification:

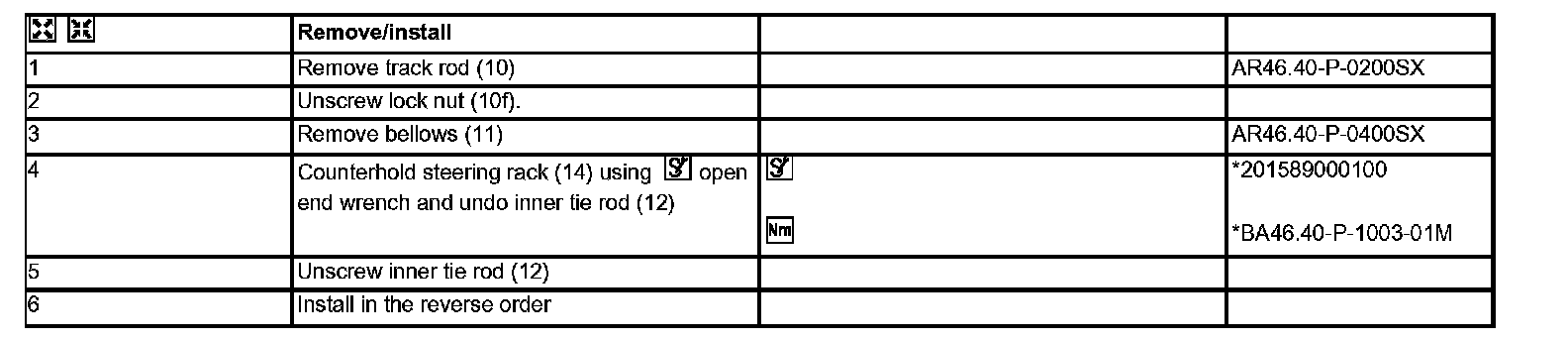

Remove/install Steps 1-6:

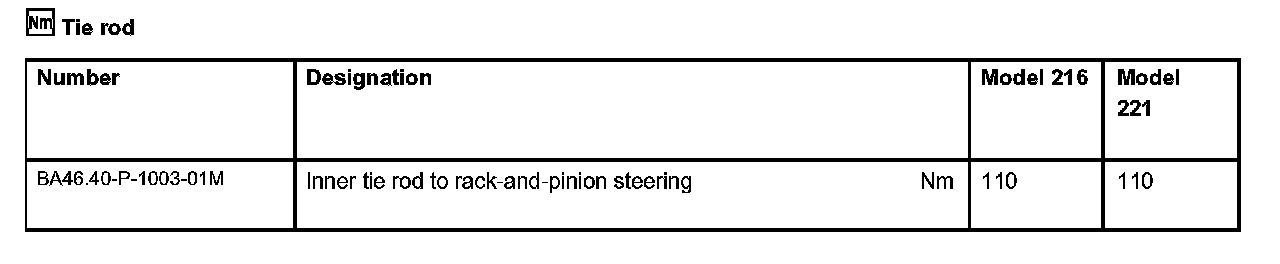

Tie rod:

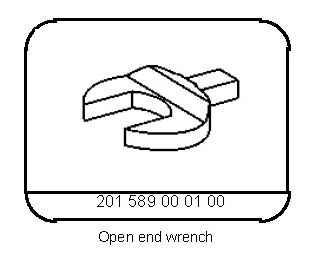

Special Tools:
