AR46.20-P-0600SX Remove/Install Rack-and-Pinion Steering

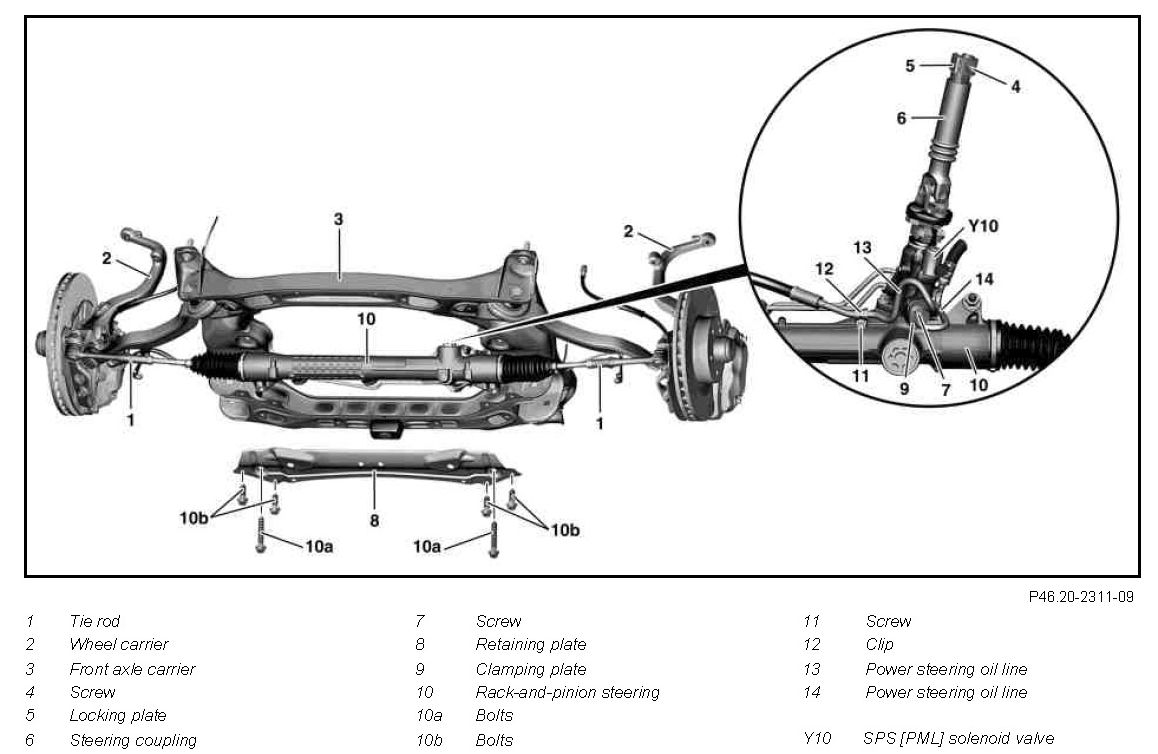

Component Identification:

Modification notes:

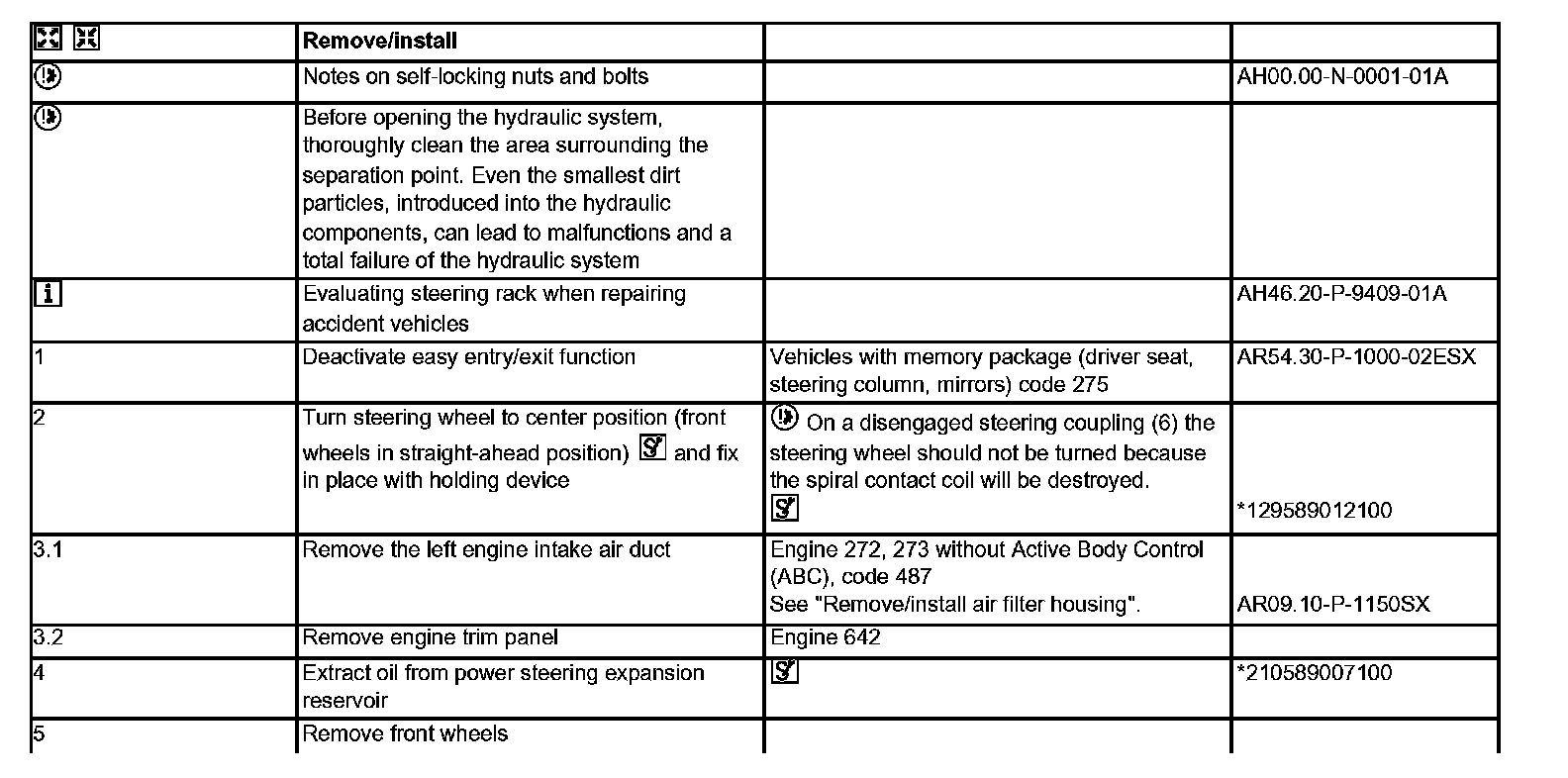

Remove/install Steps 1-5:

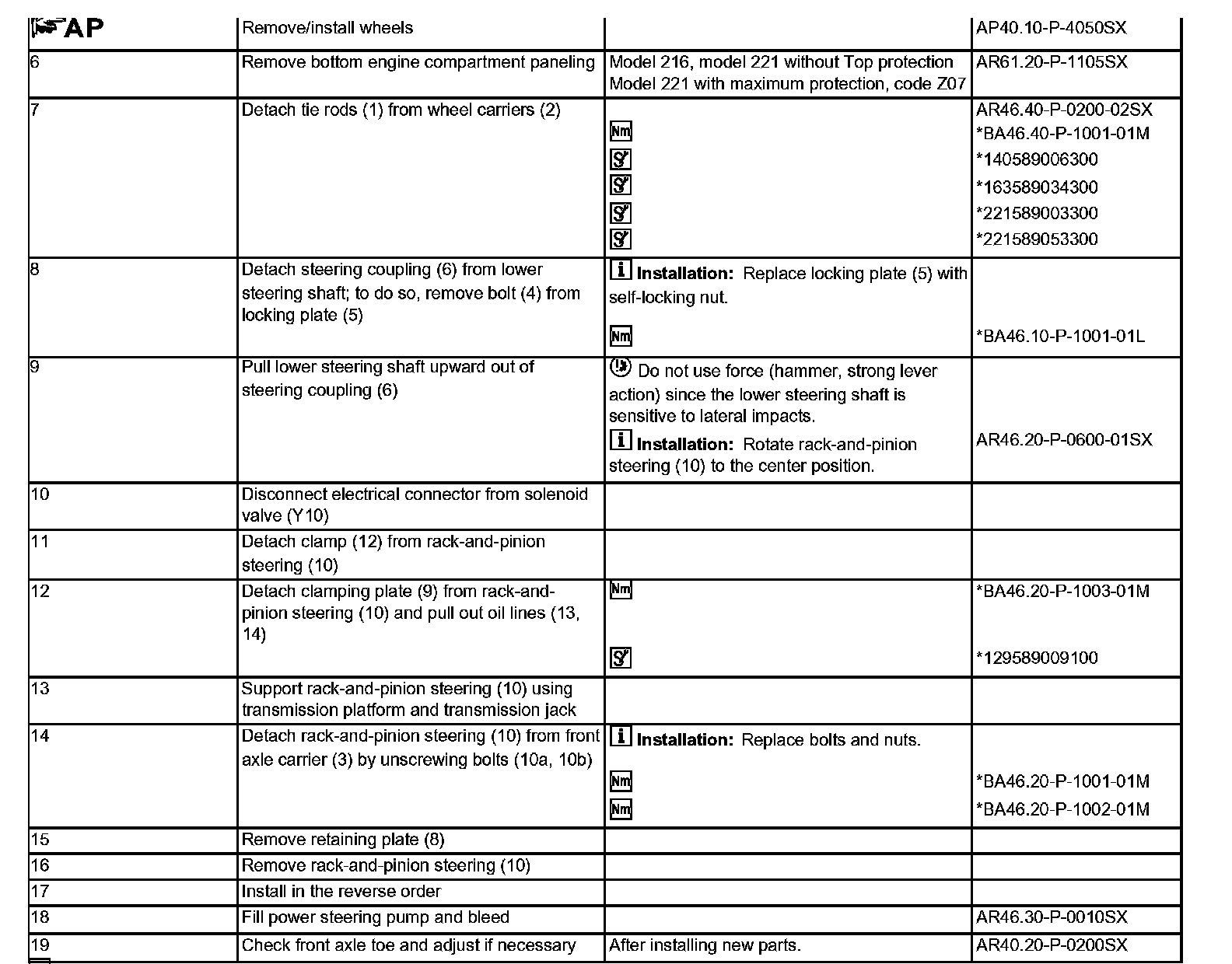

Remove/install Steps 5 (Continued)-19:

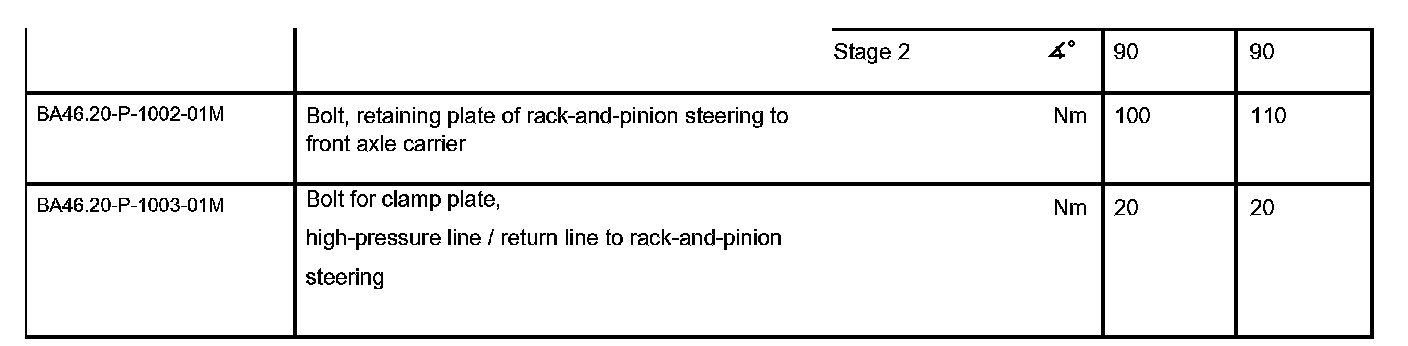

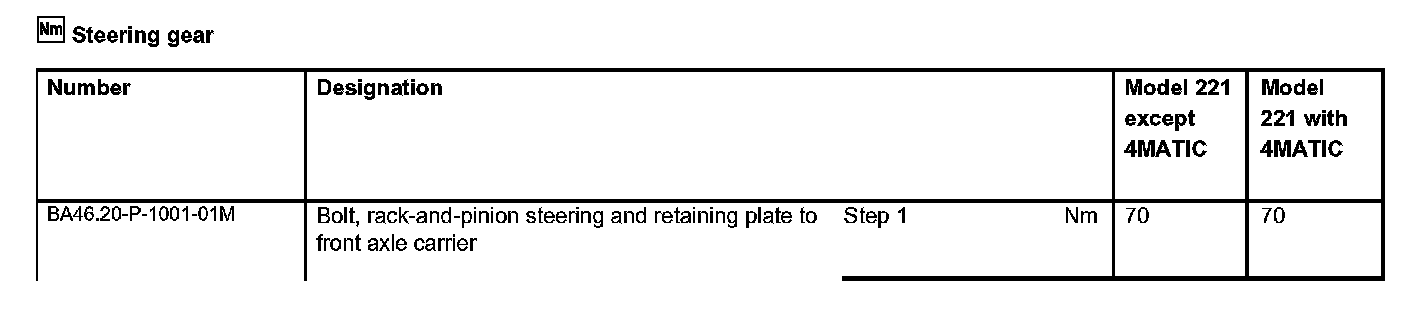

Steering gear:

Steering gear:

Steering gear:

Steering shaft:

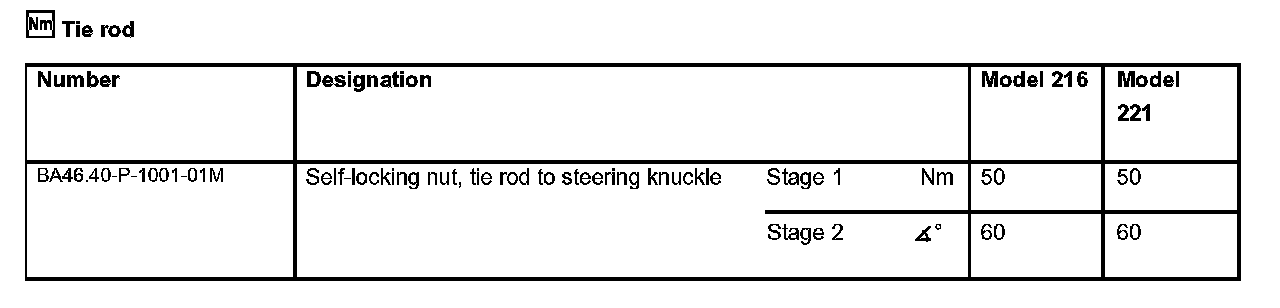

Tie rod:

Special Tools:
