Tilt Wheel Motor: Service and Repair



AR46.10-P-0625SX Remove/install motor for steering column adjustment

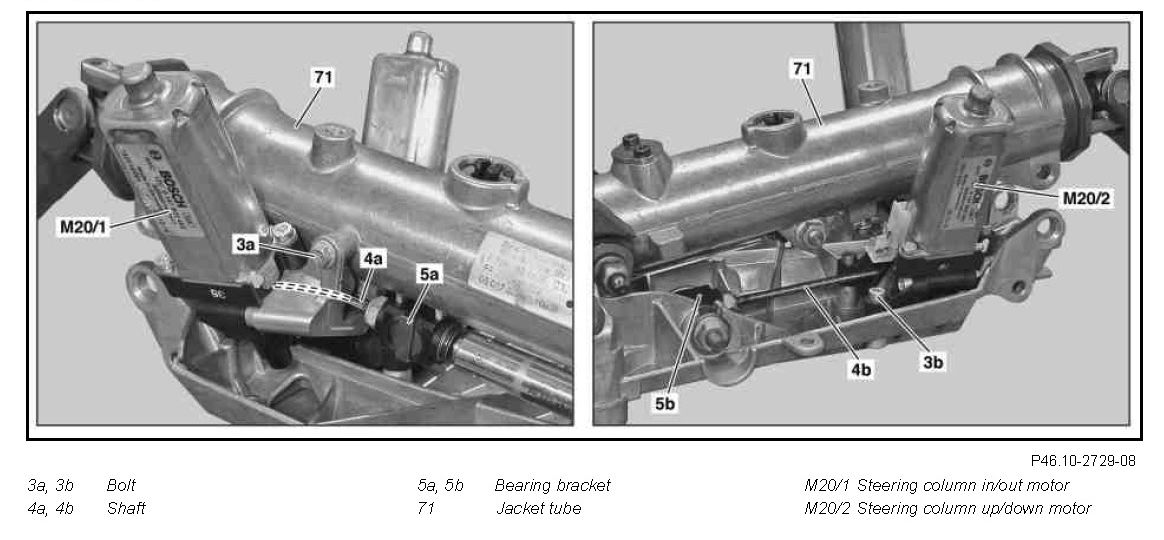

Component Identification:

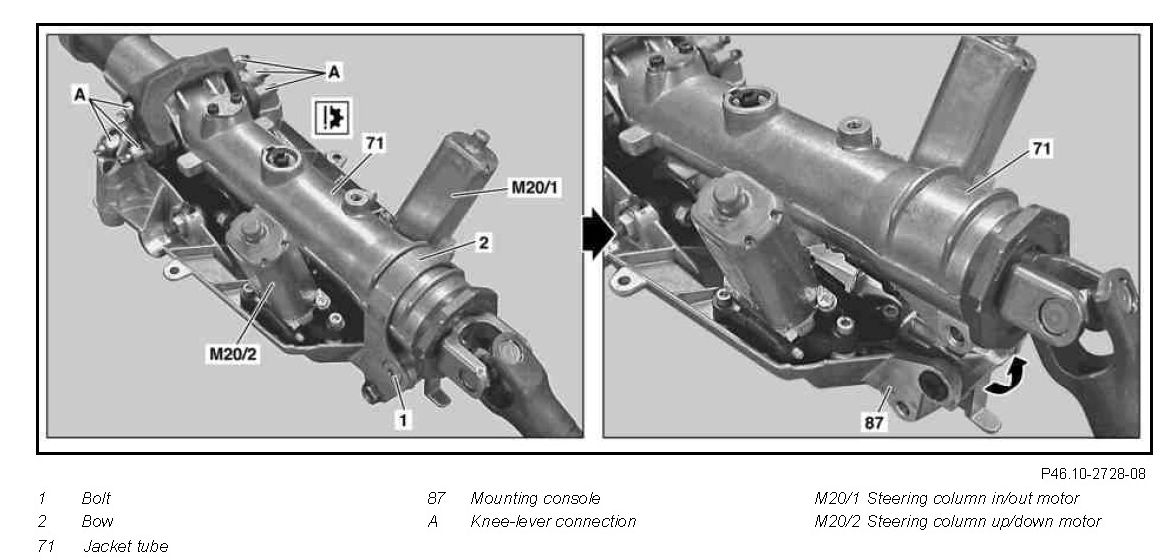

Component Identification:




Remove/install Steps 1-3:

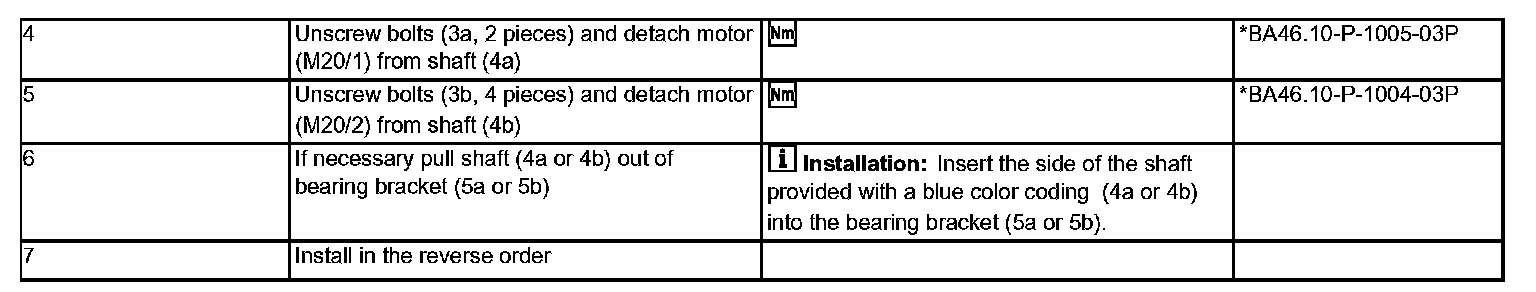

Remove/install Steps 4-7:

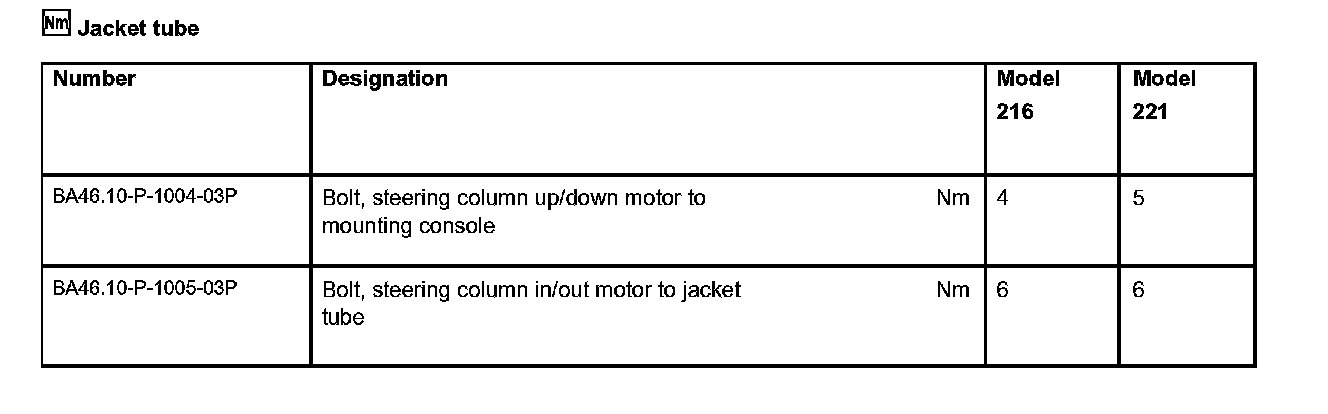

Jacket tube:
