AR46.10-P-0621SX Replacing Steering Shaft Boot
AR46.10-P-0621SX Replacing Steering Shaft Boot
AR46.10-P-0621SX Replacing steering shaft boot

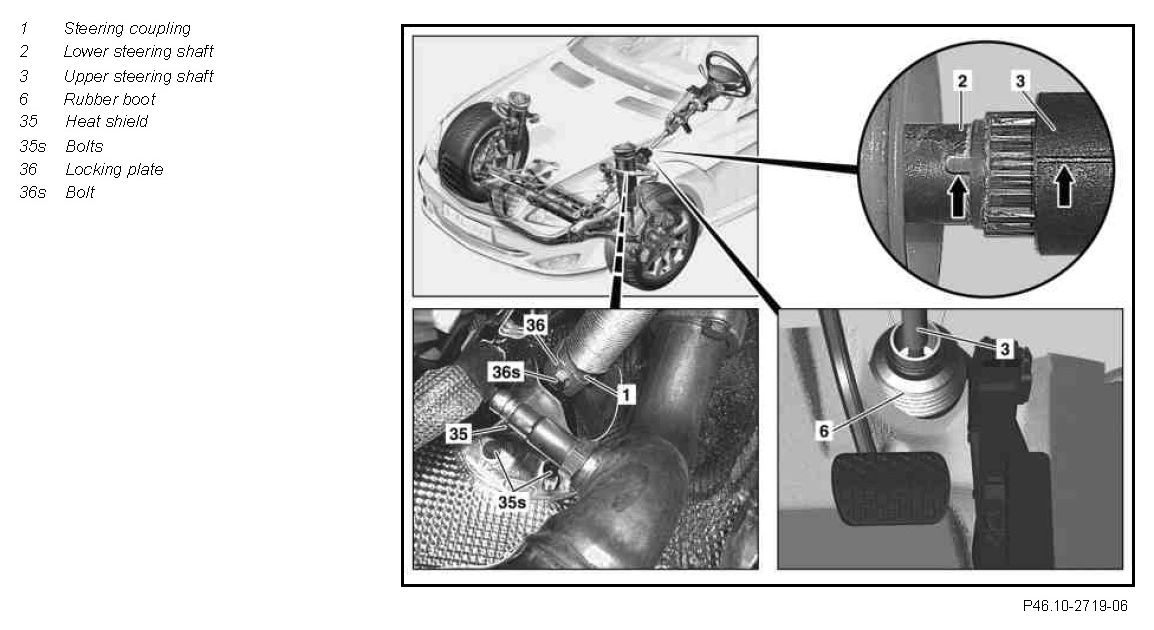

Component Identification:

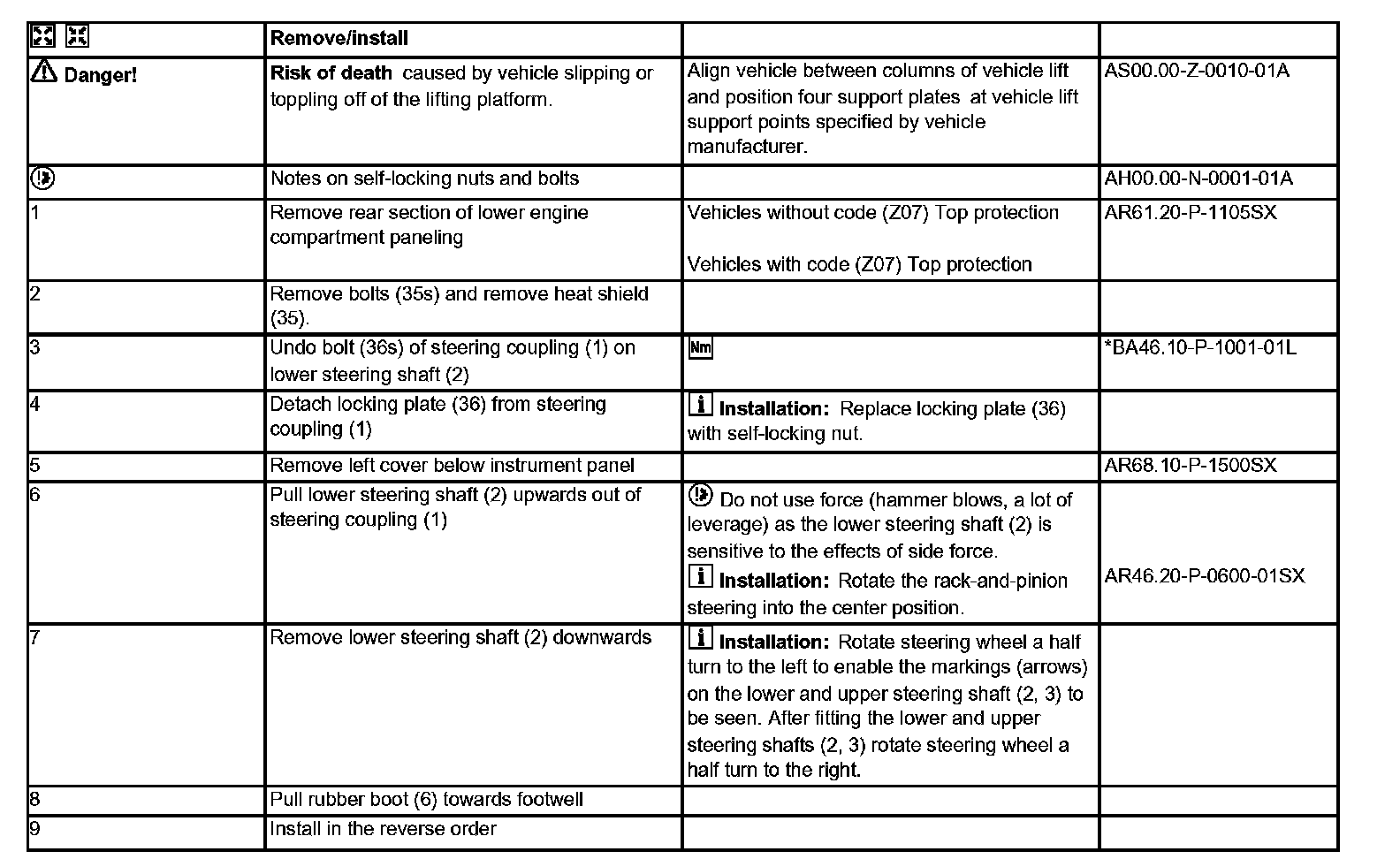

Remove/install Steps 1-9:

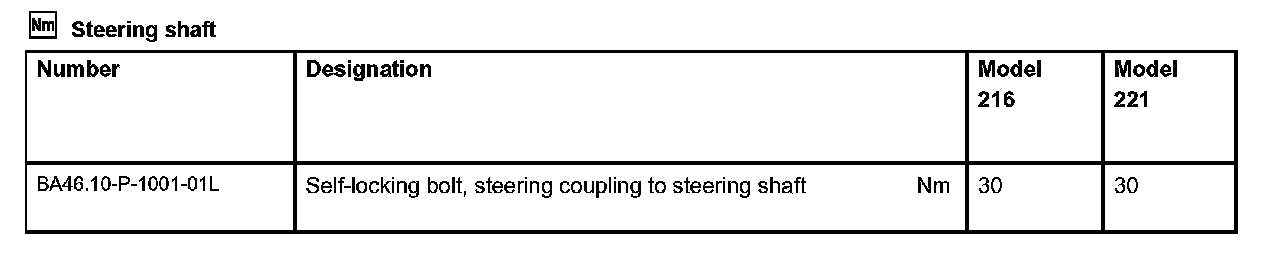

Steering shaft:
