AR46.10-P-0400SX Remove/Install Jacket Tube
AR46.10-P-0400SX Remove/Install Jacket Tube
AR46.10-P-0400SX Remove/install jacket tube
Component Identification:
Component Identification:

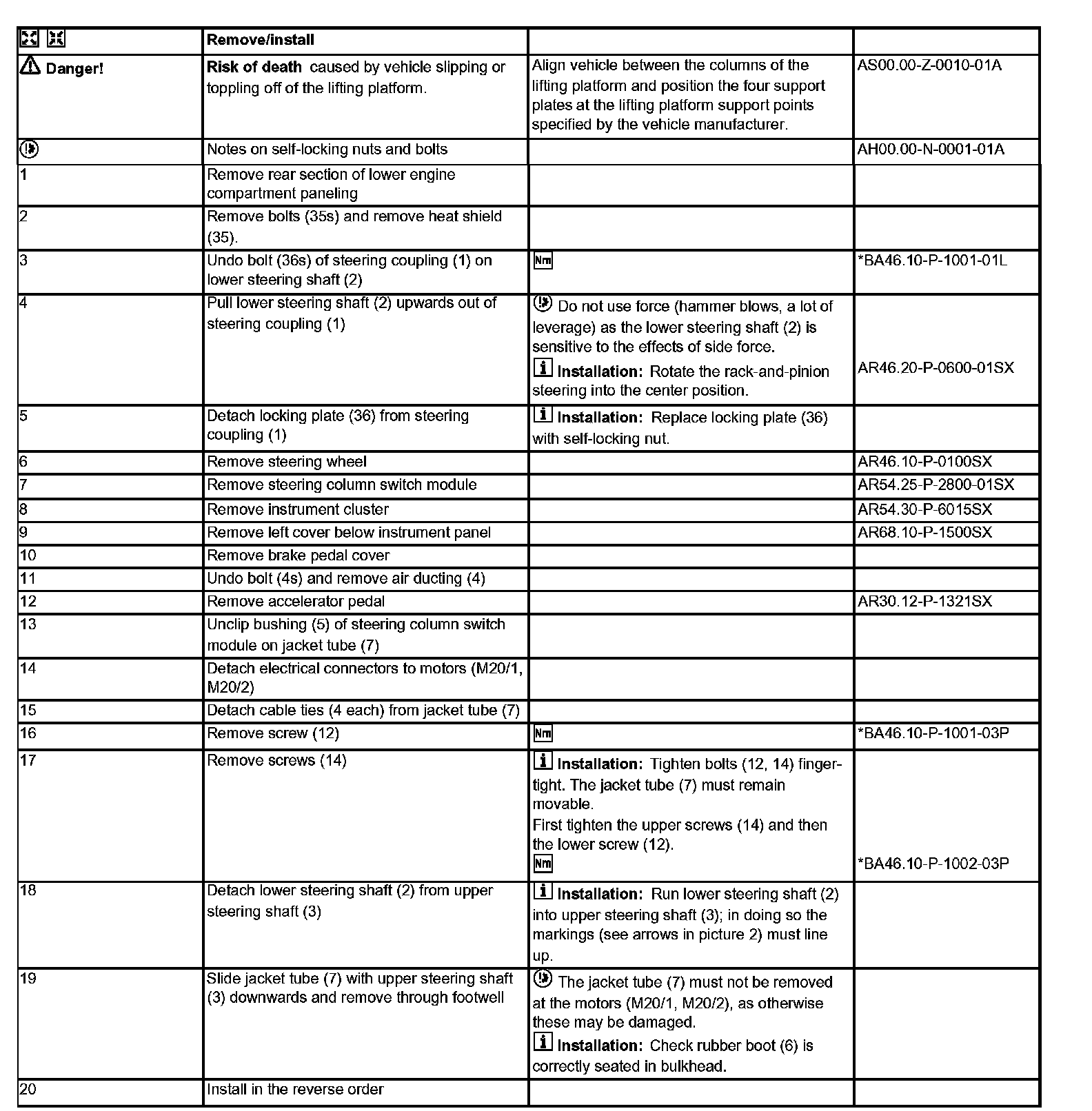

Remove/install Steps 1-20:

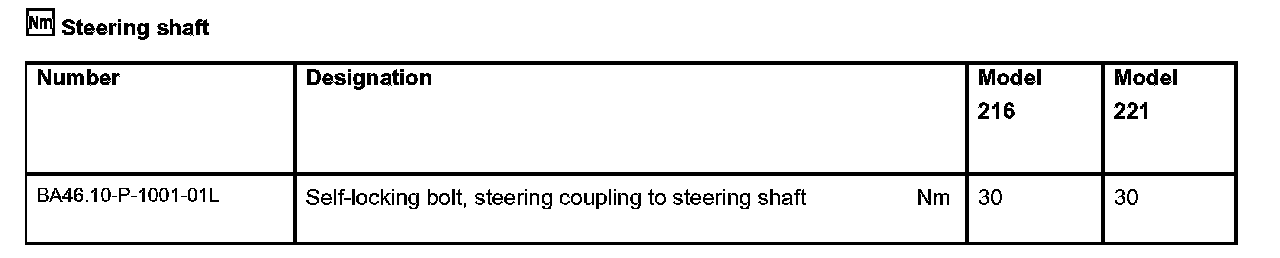

Steering shaft:

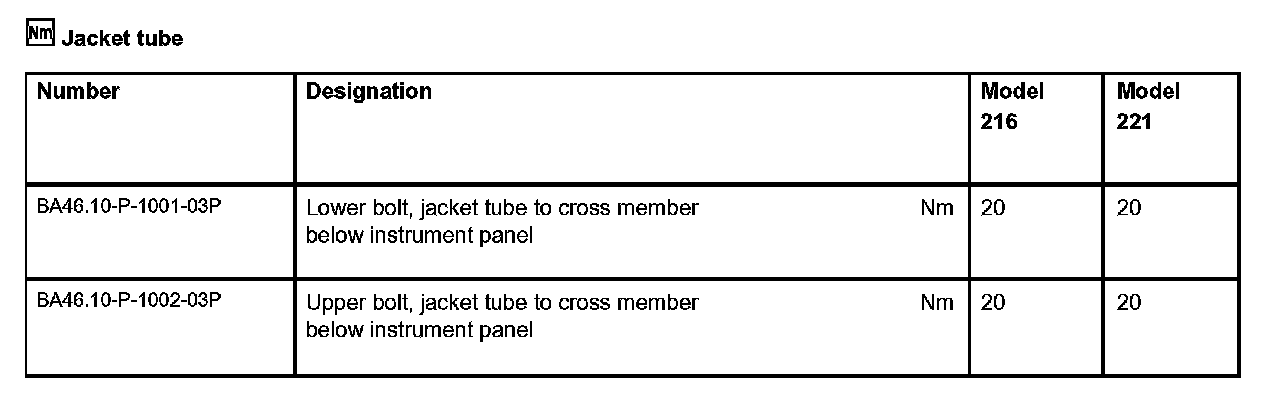

Jacket tube:
