AR46.30-P-0100SXH Checking Oil Pressure of Power Steering Pump
AR46.30-P-0100SXH Checking oil pressure of power steering pump
- with electrohydraulic power steering (EHPS)

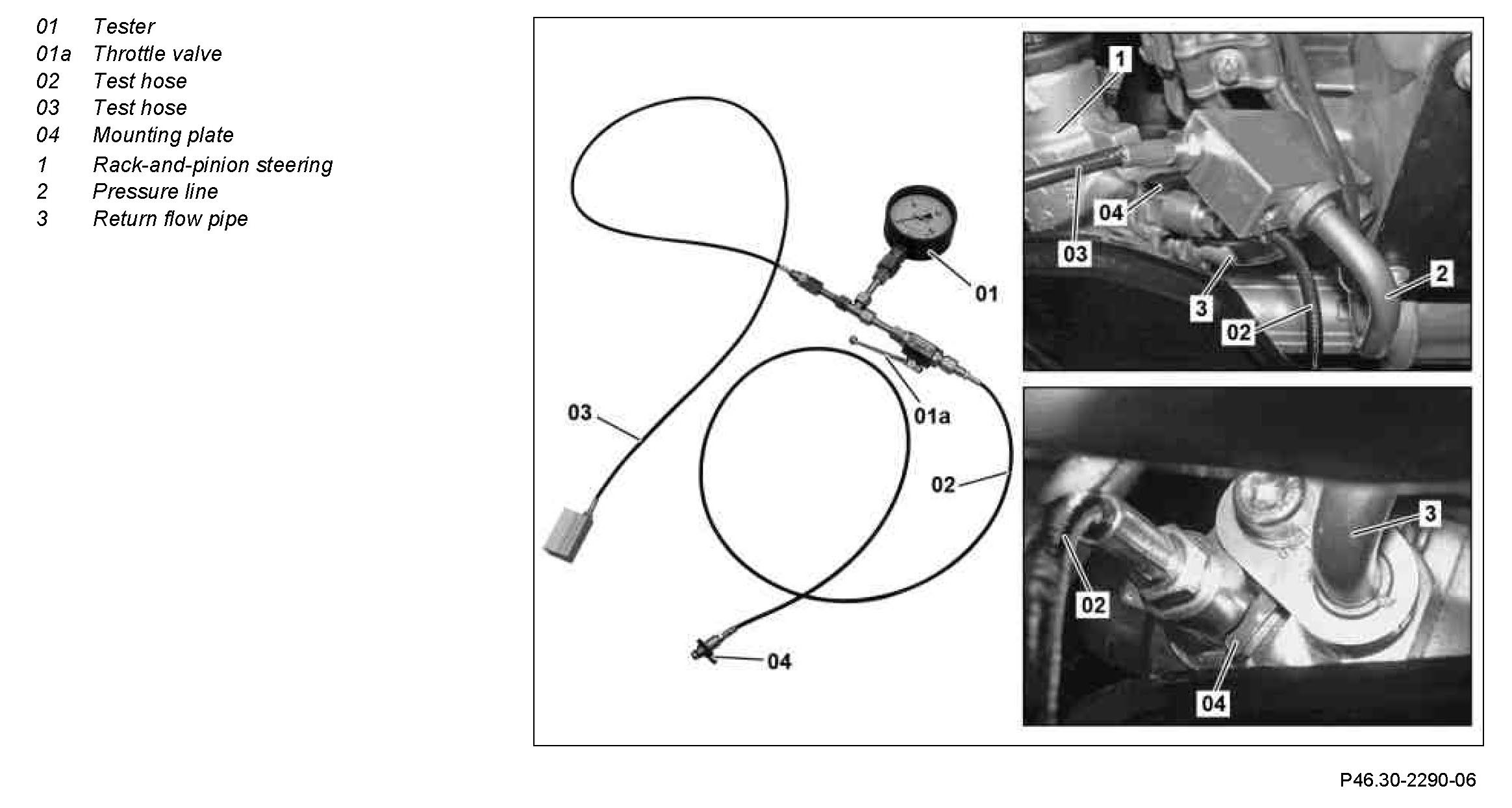

Component Identification:

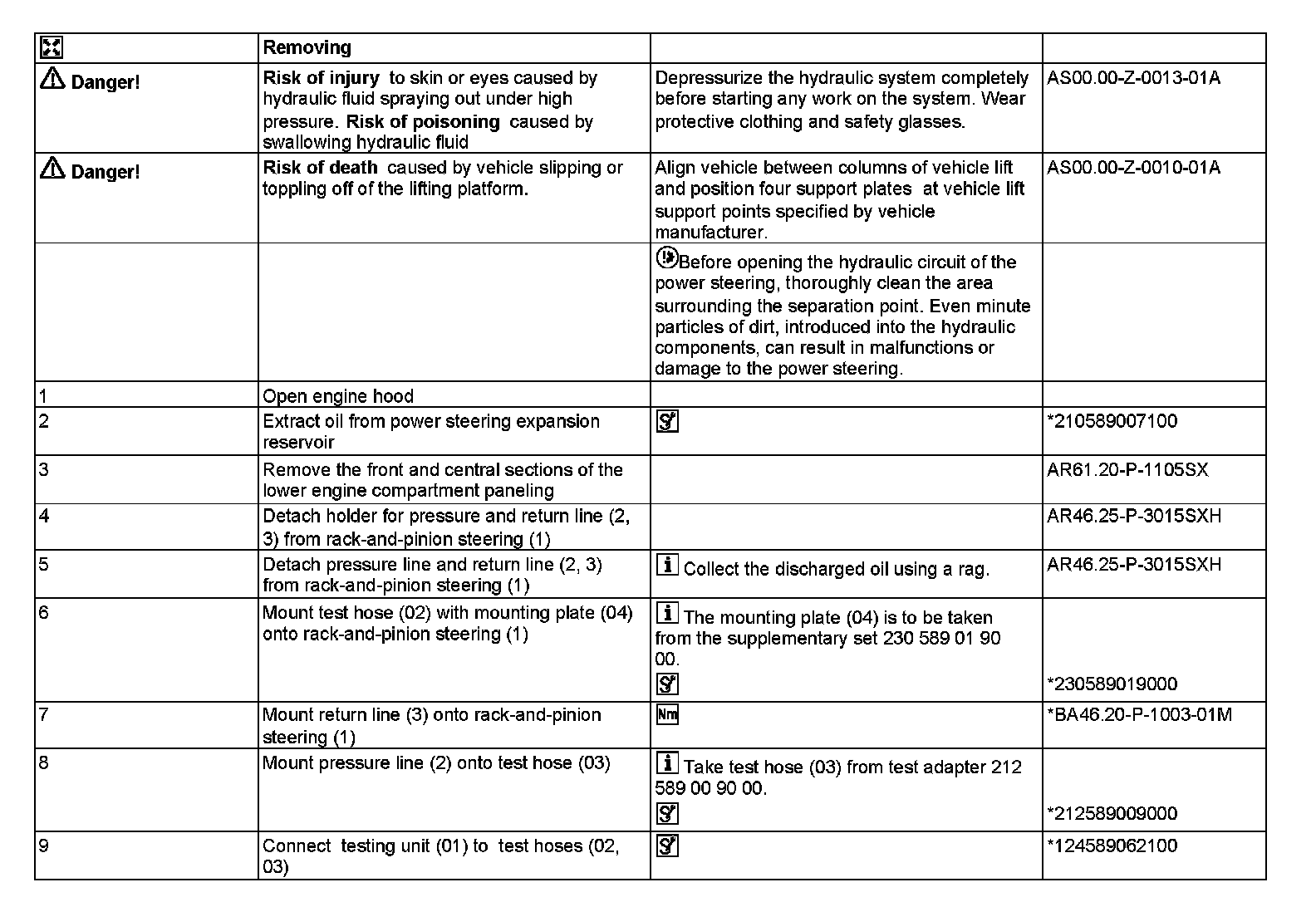

Steps 1-9:

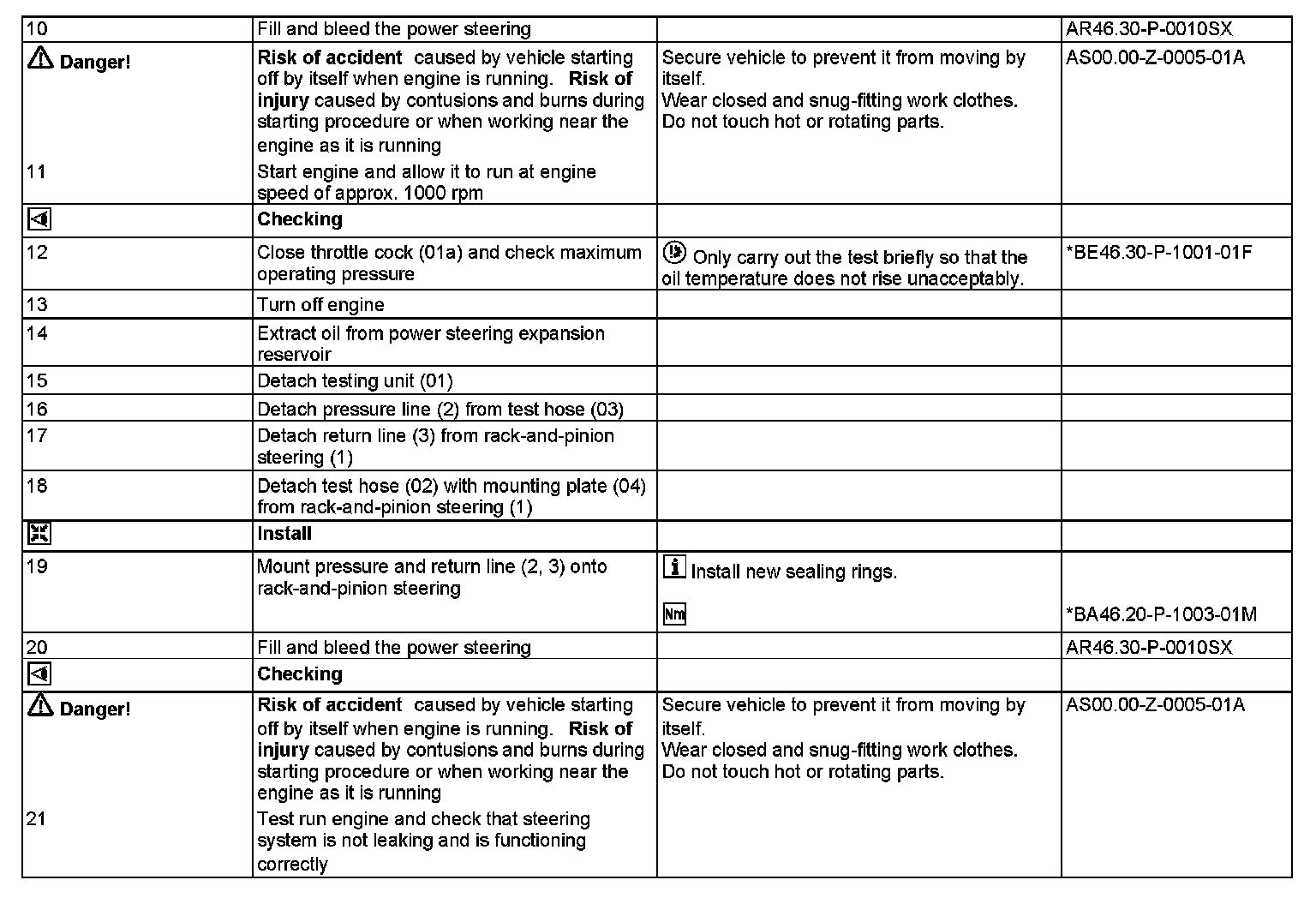

Steps 10-21:

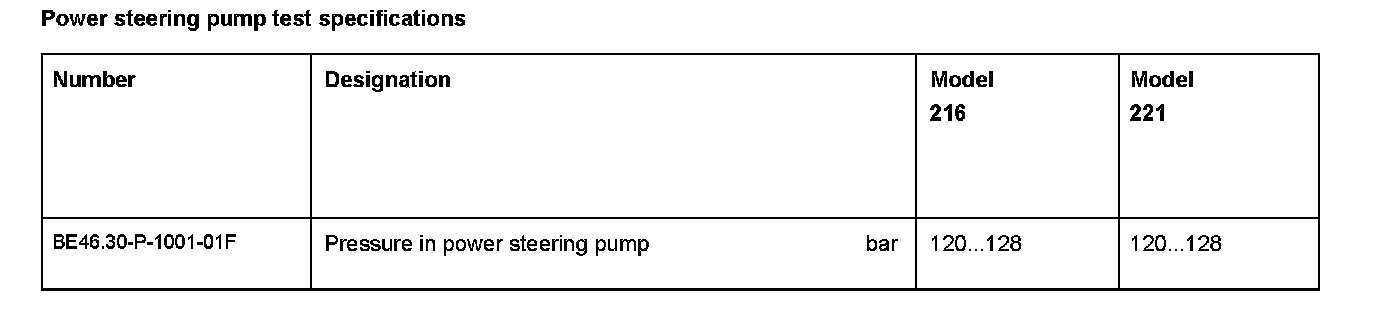

Power Steering Pump Test Specifications:

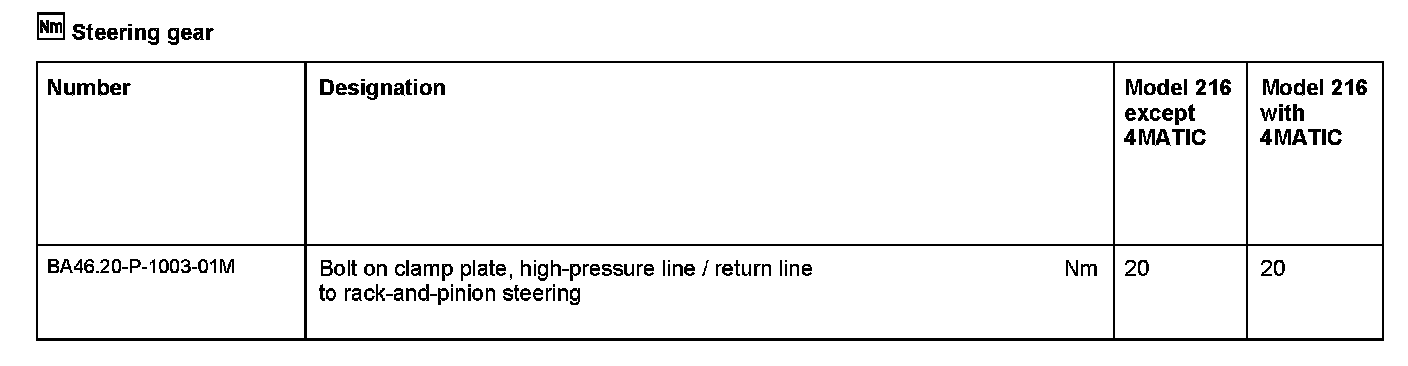

Steering Gear:

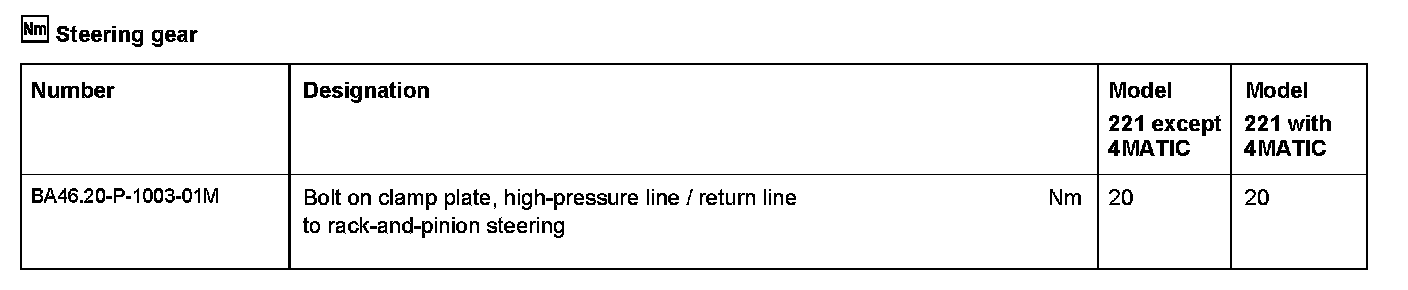

Steering Gear:

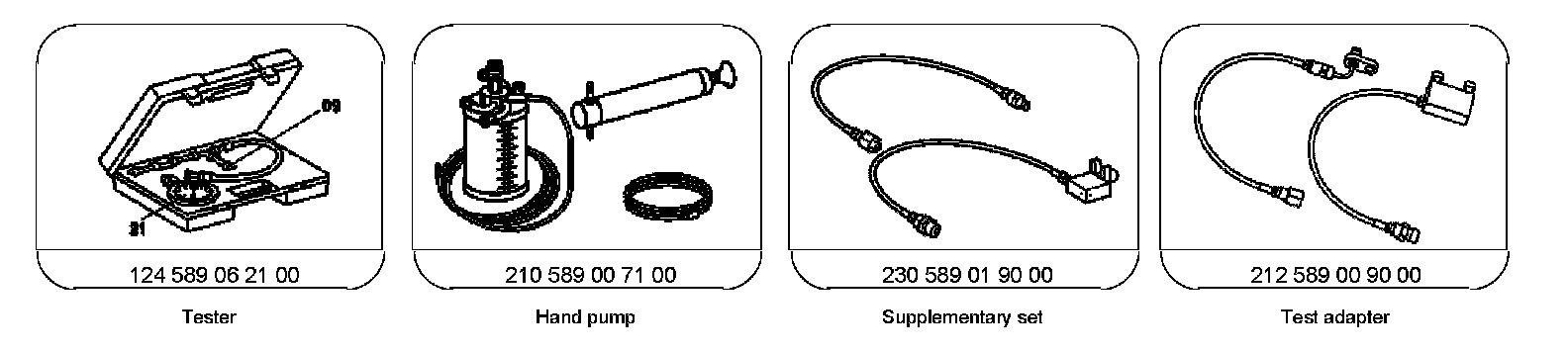

Special Tools:
