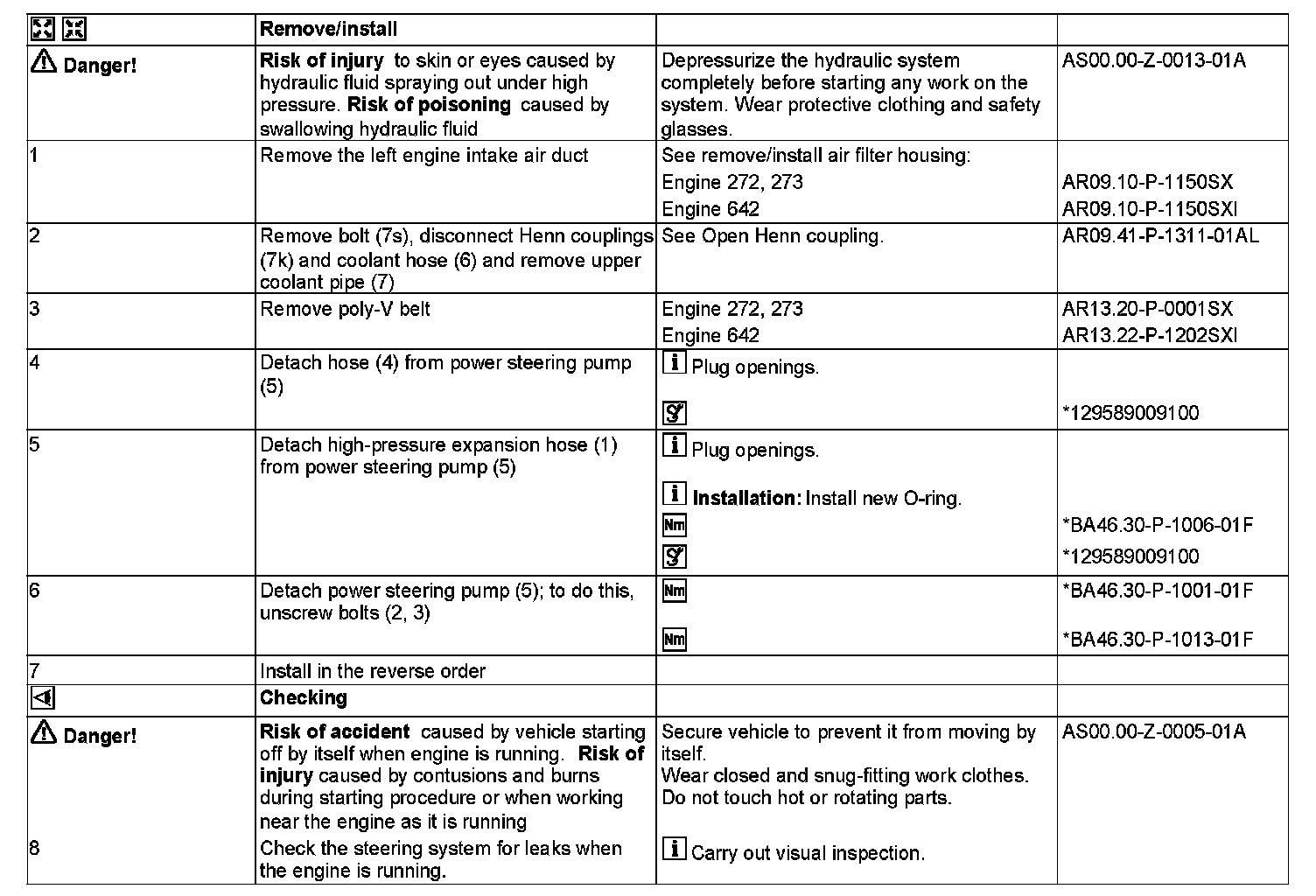

AR46.30-P-0500SYZ Remove/Install Power Steering Pump

AR46.30-P-0500SYZ Remove/Install Power Steering Pump
MODEL 221, 216 without electrohydraulic power steering (EHPS), with 4MATIC

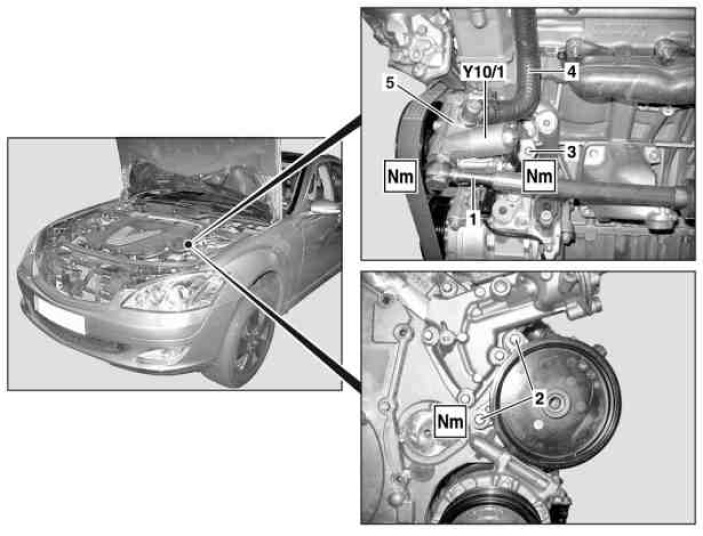

1 High-pressure expansion hose
2 Bolts
3 Screw
4 Hose
5 Power steering pump

Y10/1 Power steering pump pressure regulator valve

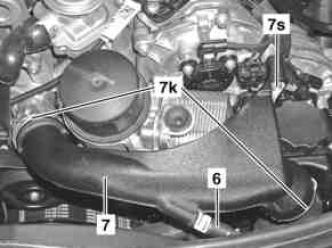

6 Coolant hose
7 Coolant pipe
7k Henn coupling
7s Screw














129 589 00 91 00
Set of stop plugs
