AR46.30-P-0500SXH Remove/Install Power Steering Pump



AR46.30-P-0500SXH Remove/install power steering pump
- with electrohydraulic power steering (EHPS)

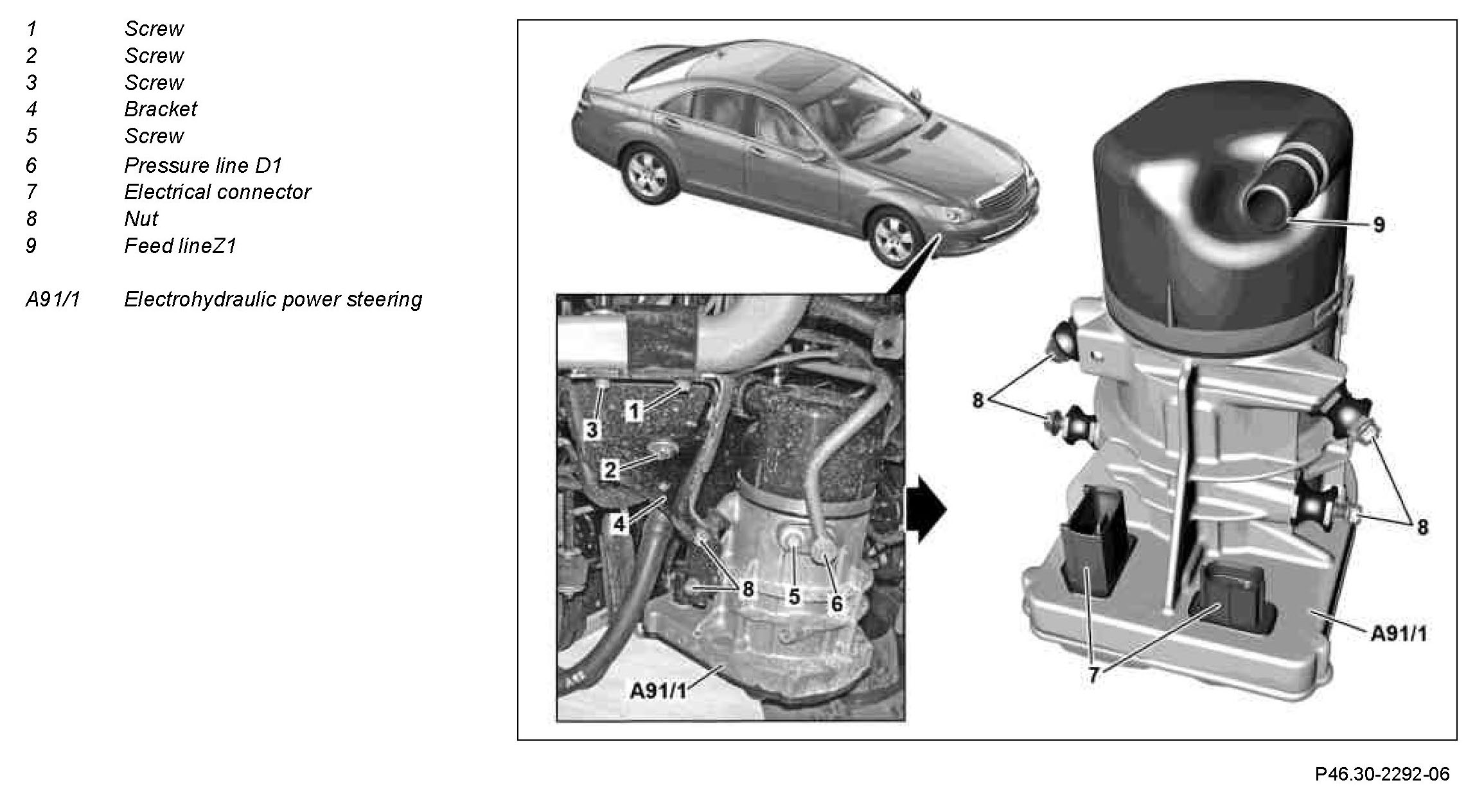

Component Identification:

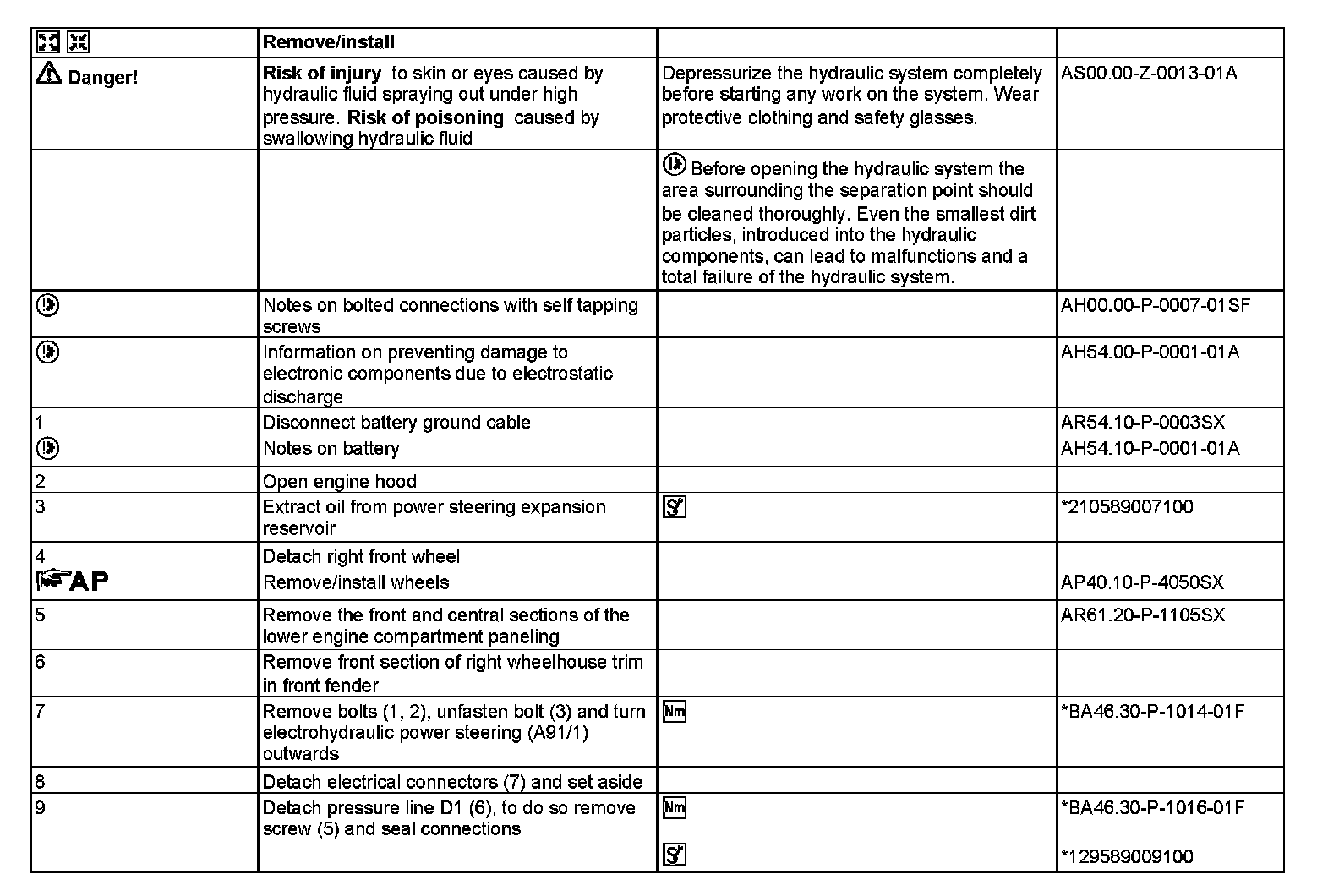

Steps 1-9:

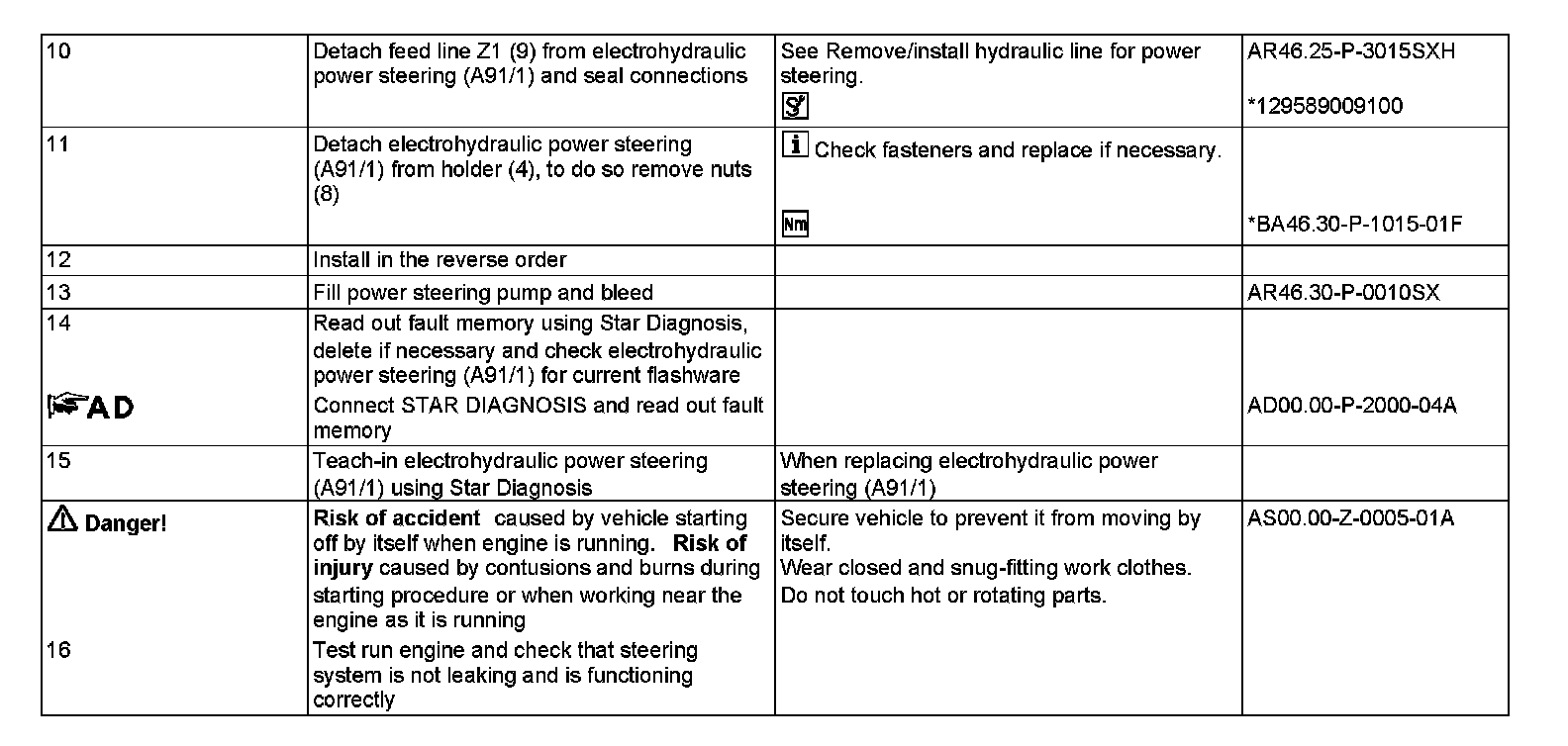

Steps 10-16:

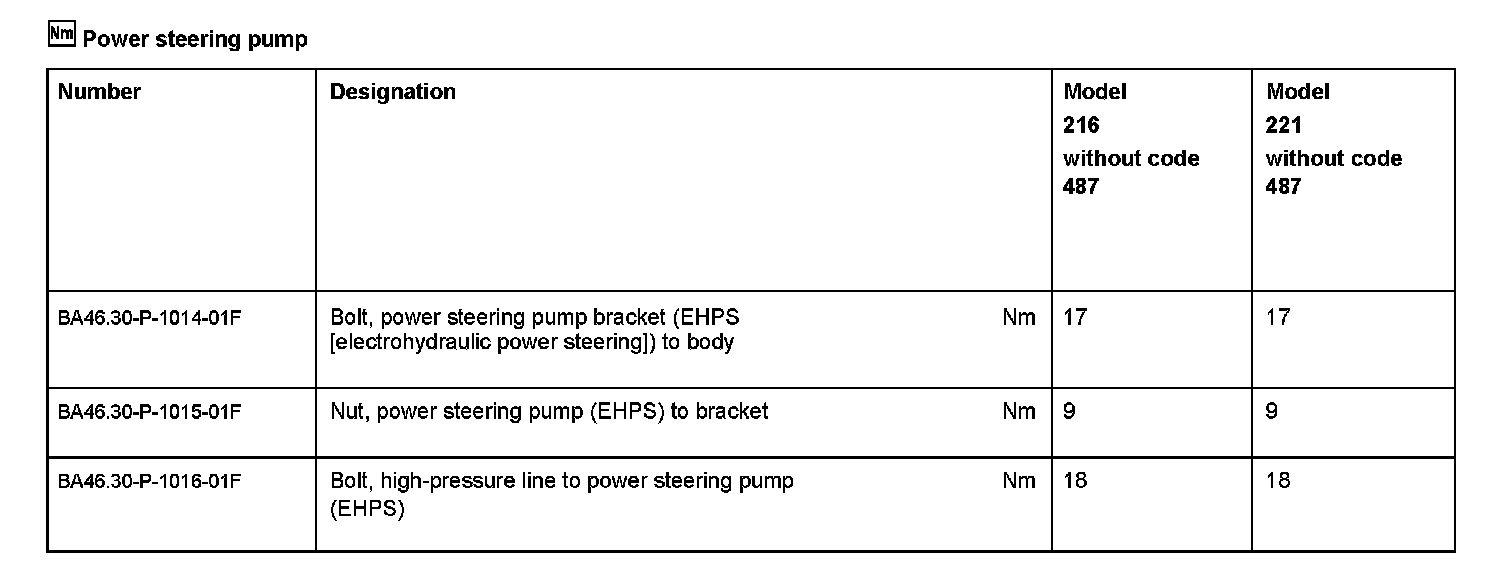

Power Steering Pump:

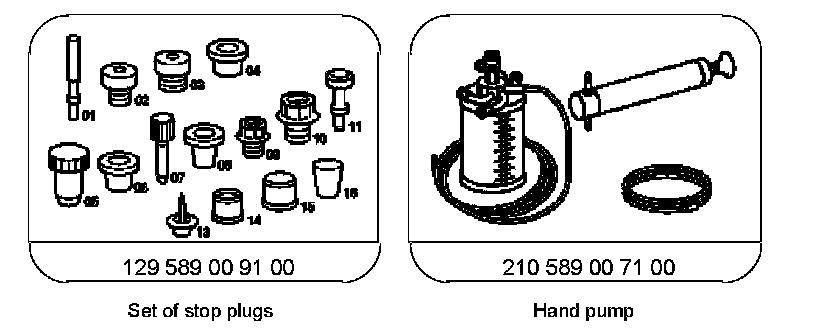

Special Tools:
