FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Power Steering
>>
Power Steering Pump
>>
Service and Repair
>>
Procedures
Procedures
AR46.30-P-0010SX Fill
power steering pump
and bleed

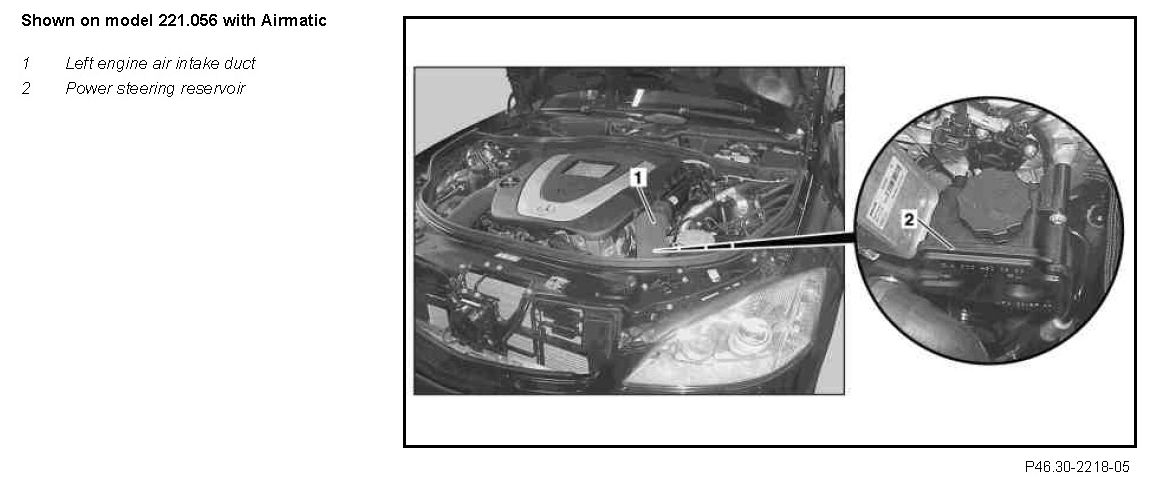

Component Identification:

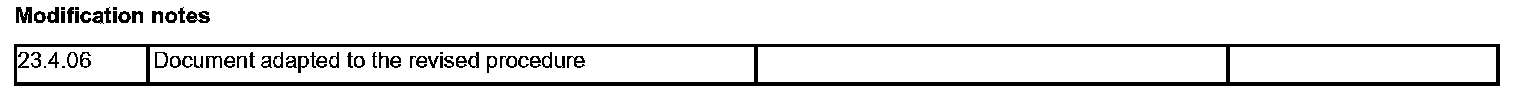

Modification notes:

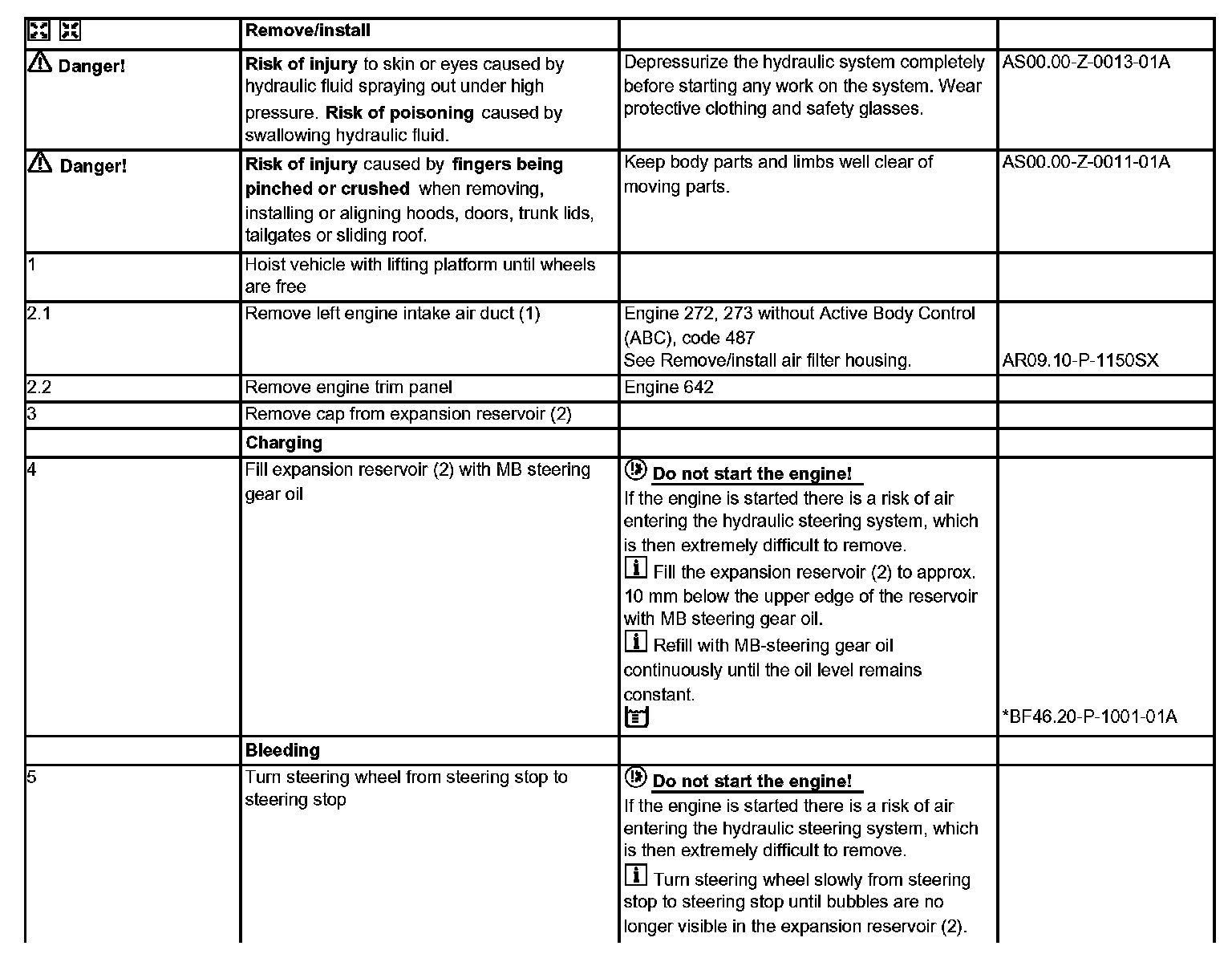

Remove/install Steps 1-5:

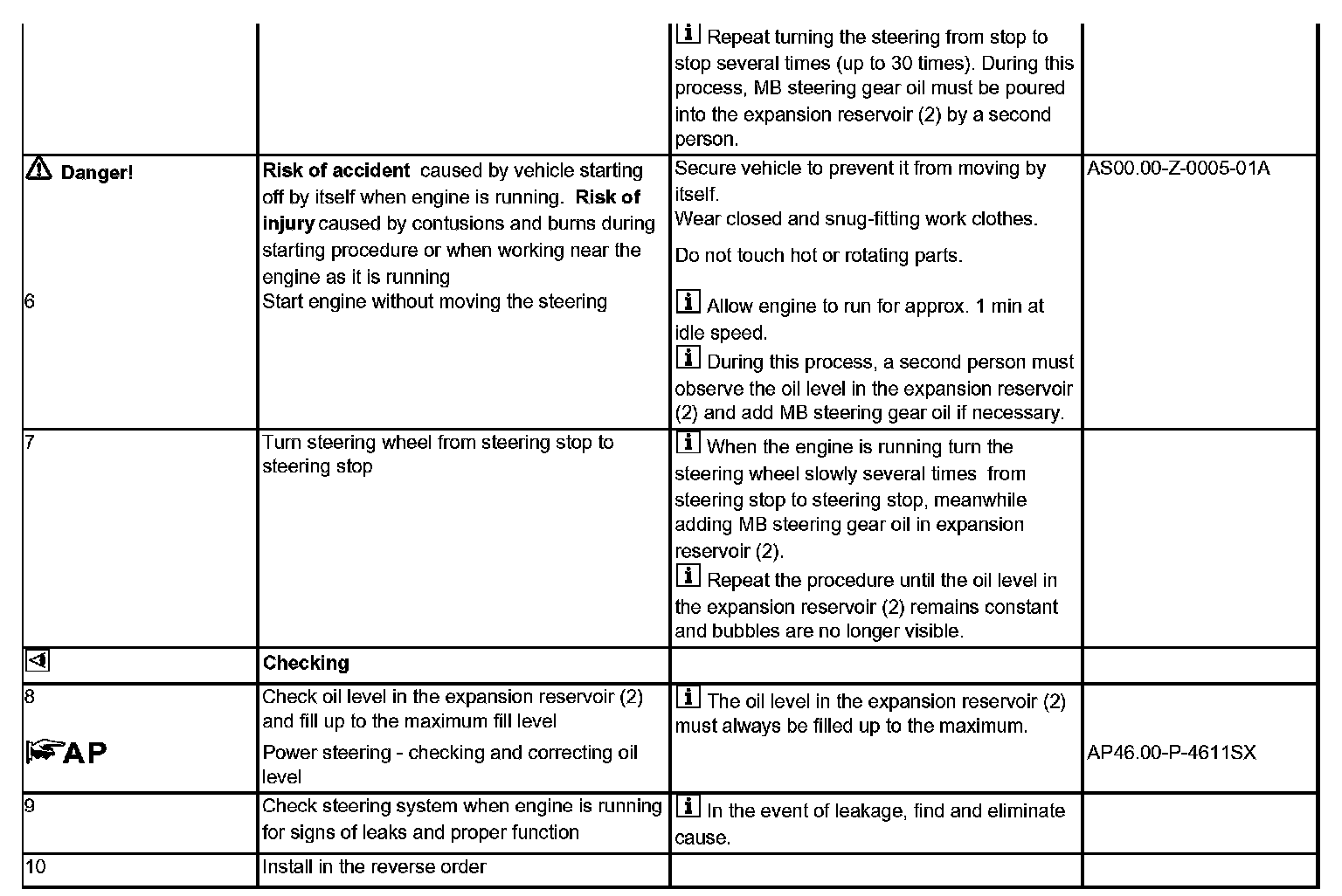

Remove/install Steps 5 (Continued)-10:

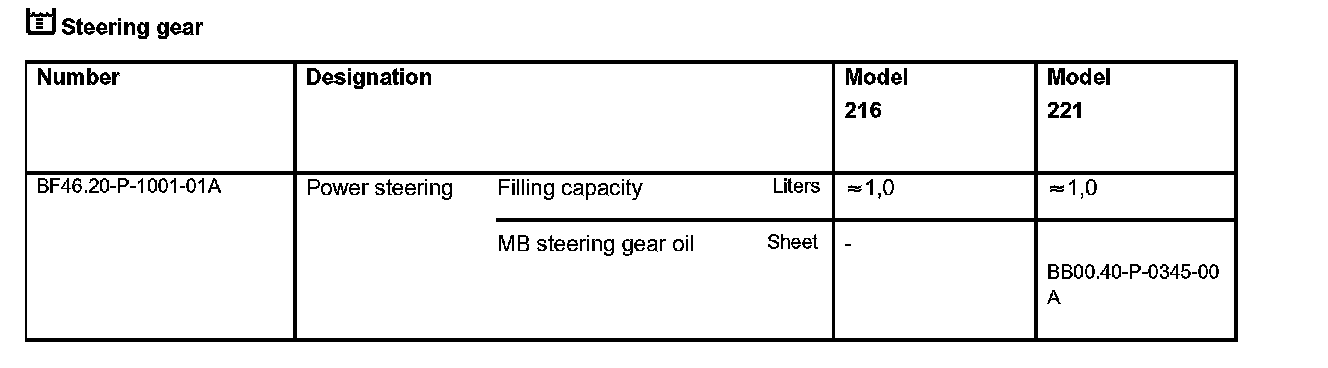

Steering gear:
