S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Power Steering
>>
Power Steering Fluid Cooler
>>
Service and Repair
Power Steering Fluid Cooler: Service and Repair
AR46.25-P-3020SX Remove/install
power steering
radiator

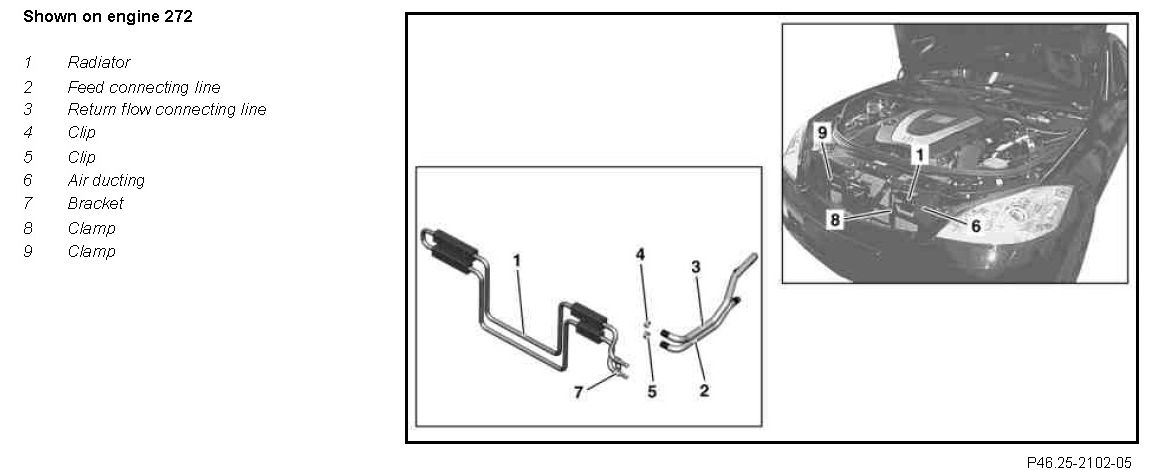

Component Identification:

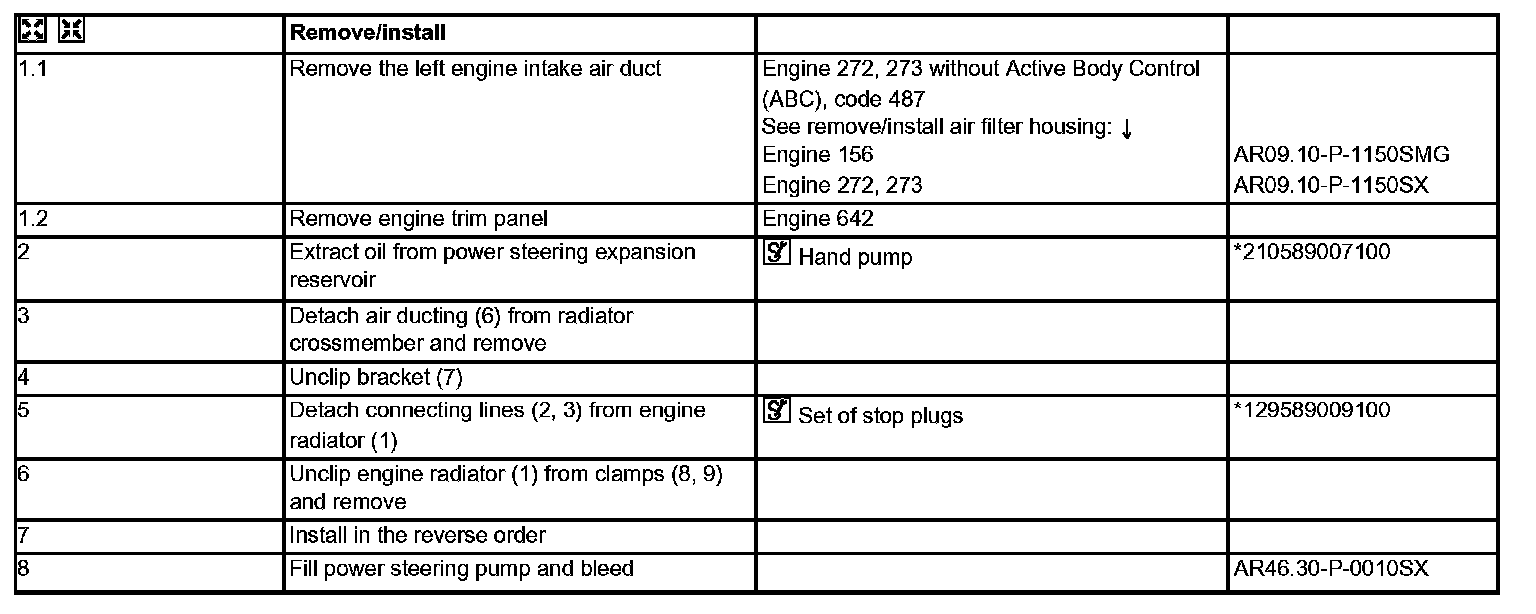

Remove/install Steps 1.1-8:

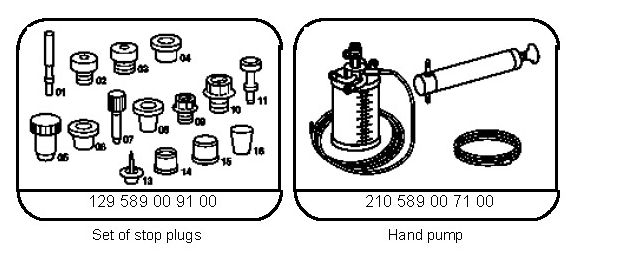

Special Tools:
