AR33.25-P-0400SYZ Remove/Install Steering Knuckle

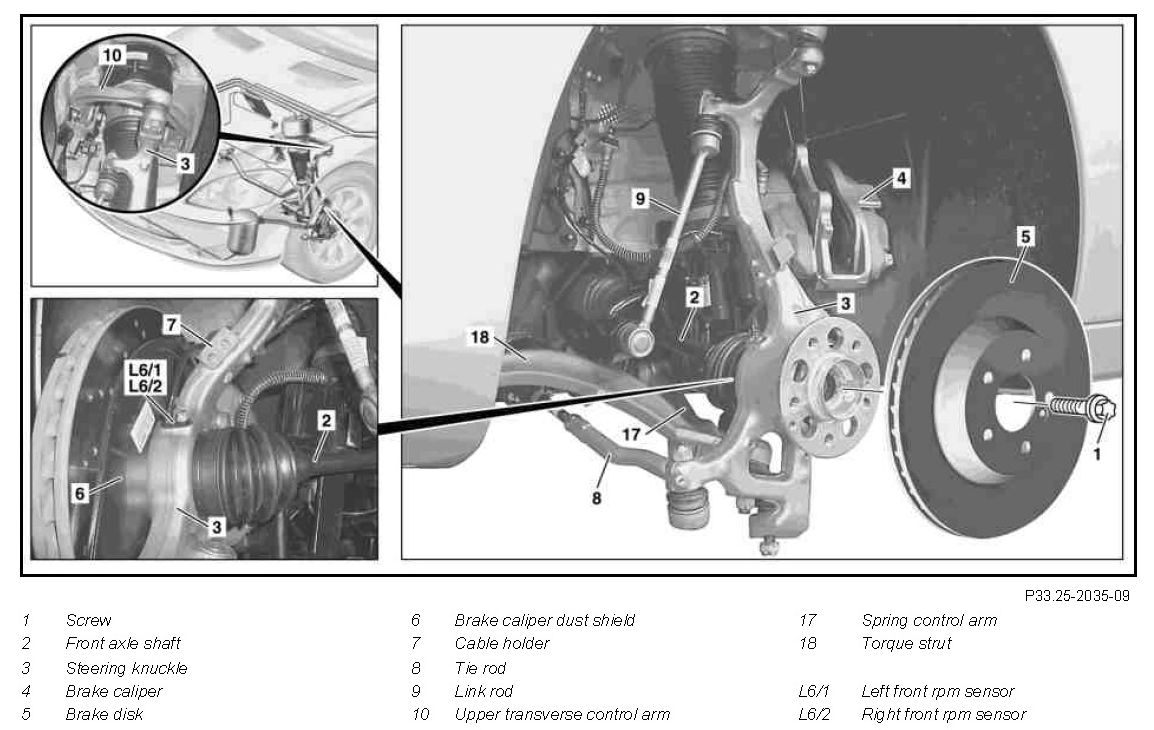

Component Identification:

Modification notes:

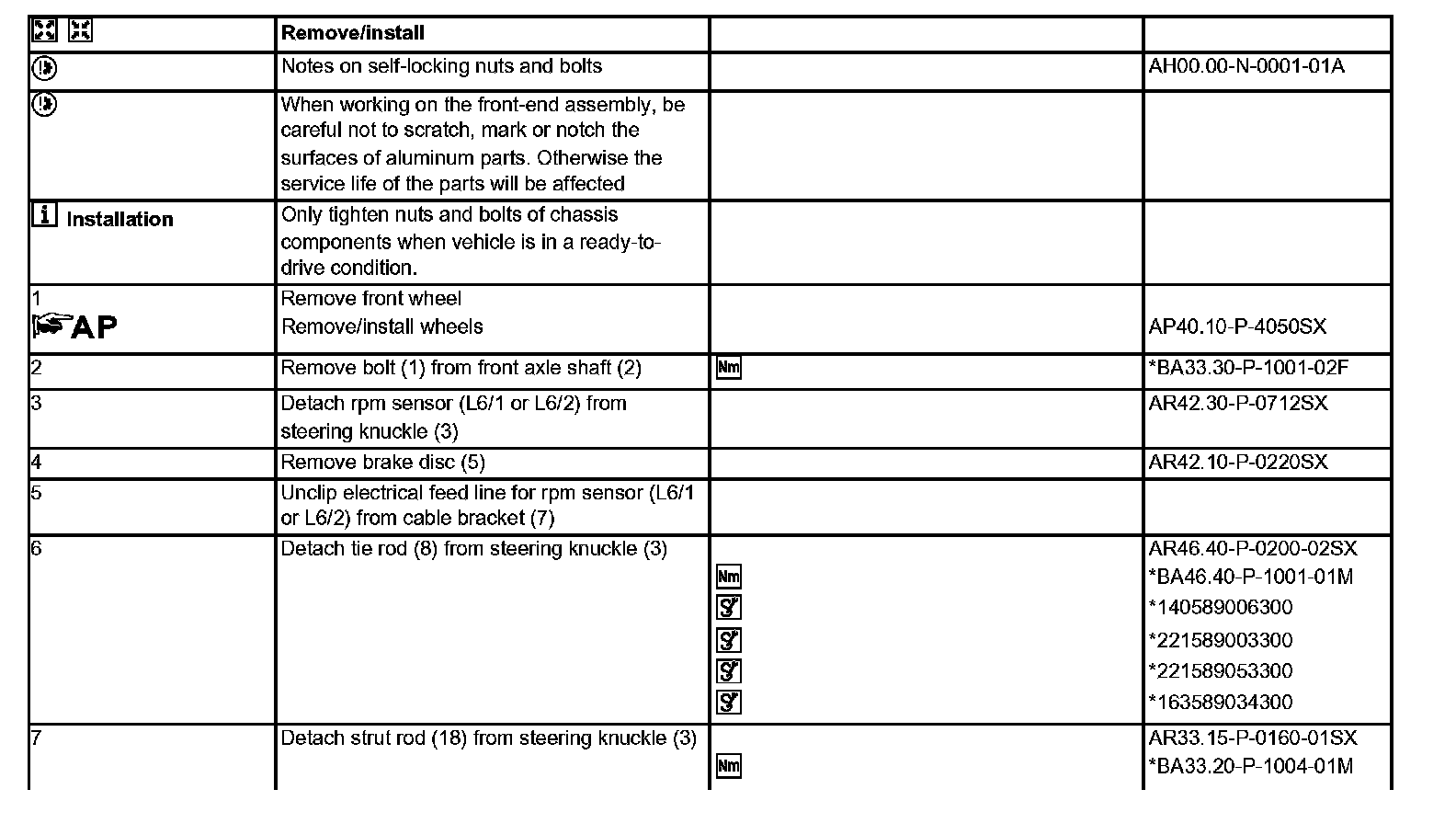

Remove/install Steps 1-7:

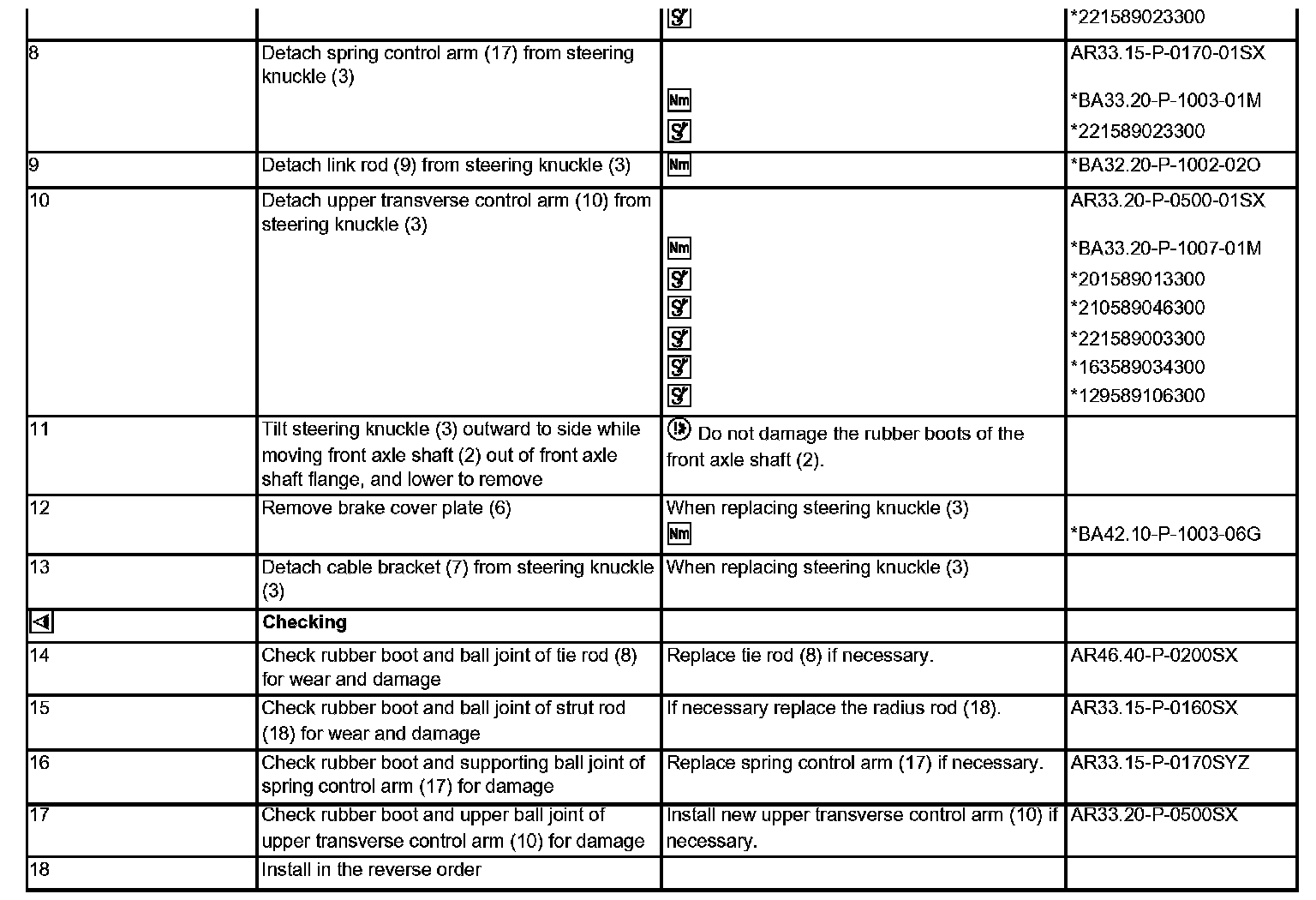

Remove/install Steps 7 (Continued)-18:

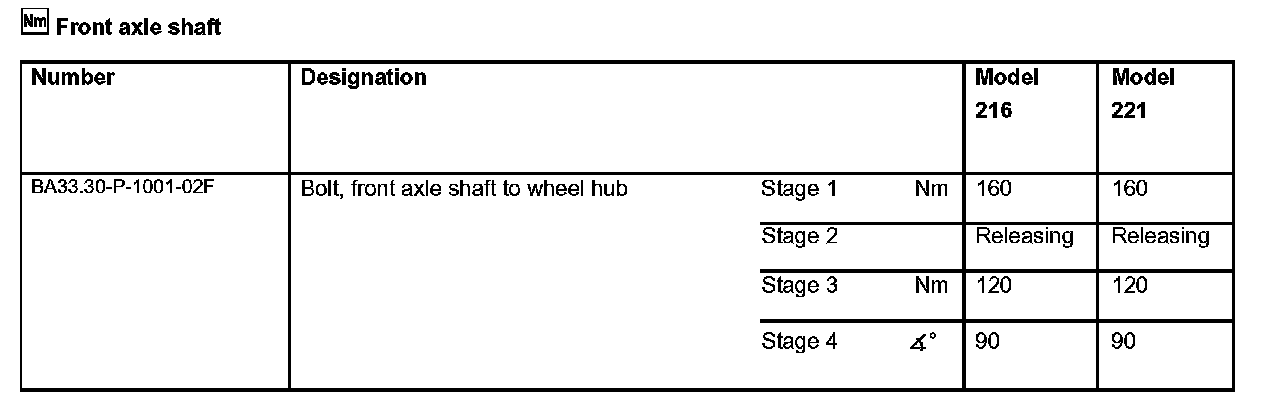

Front axle shaft:

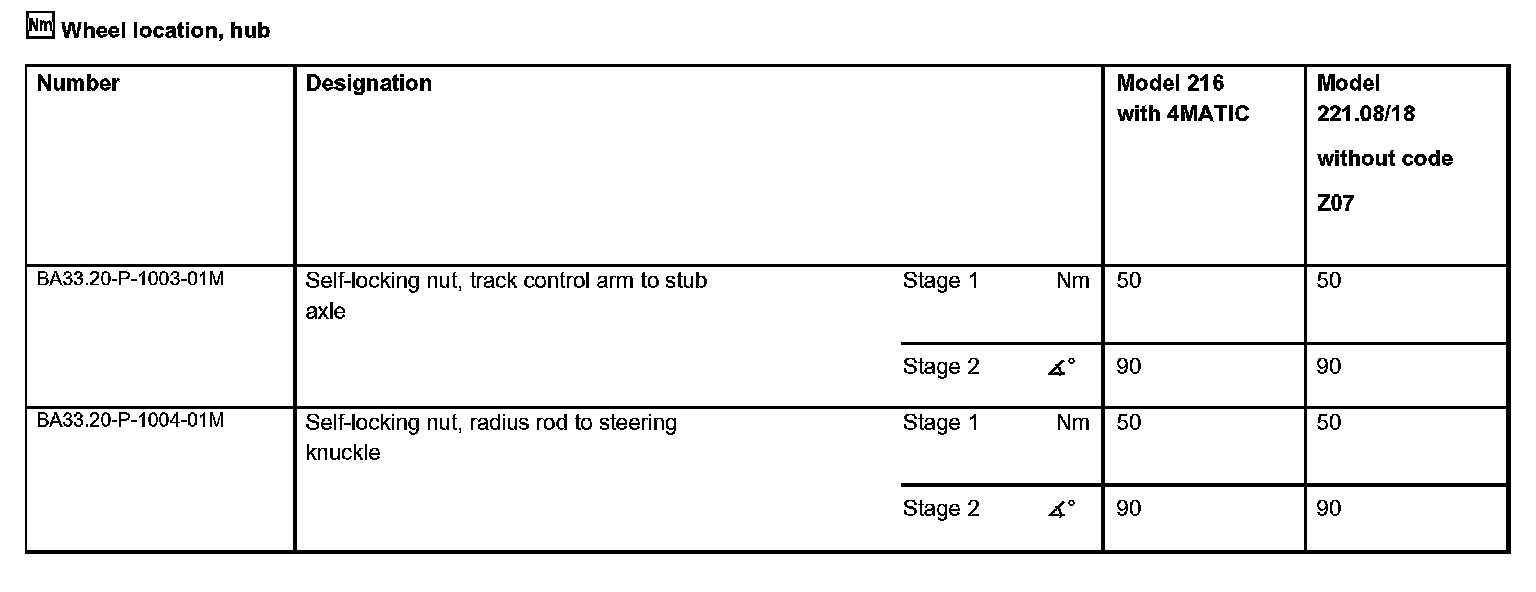

Wheel location, hub:

Wheel location, hub:

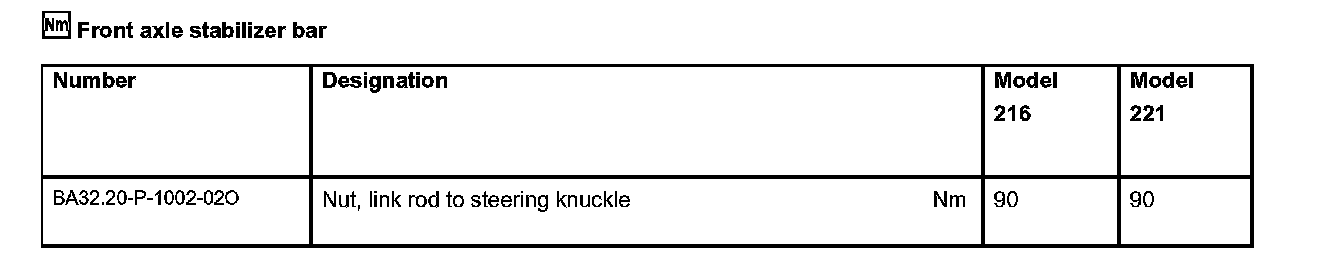

Front axle stabilizer bar:

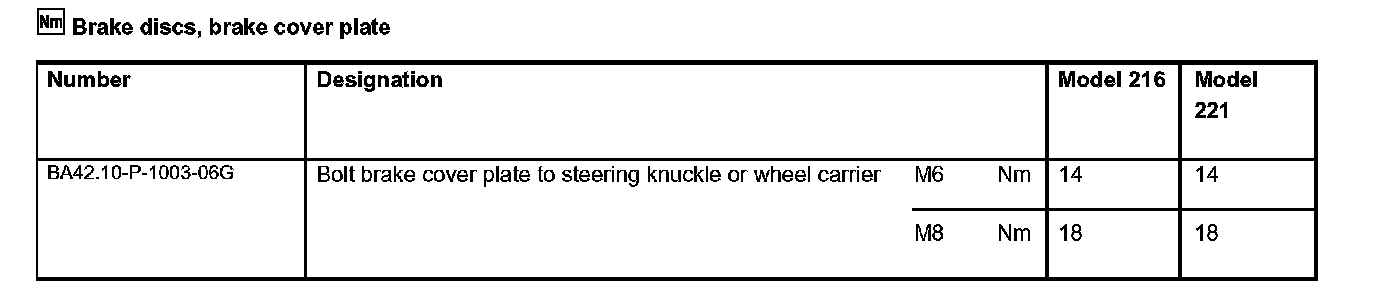

Brake discs, brake cover plate:

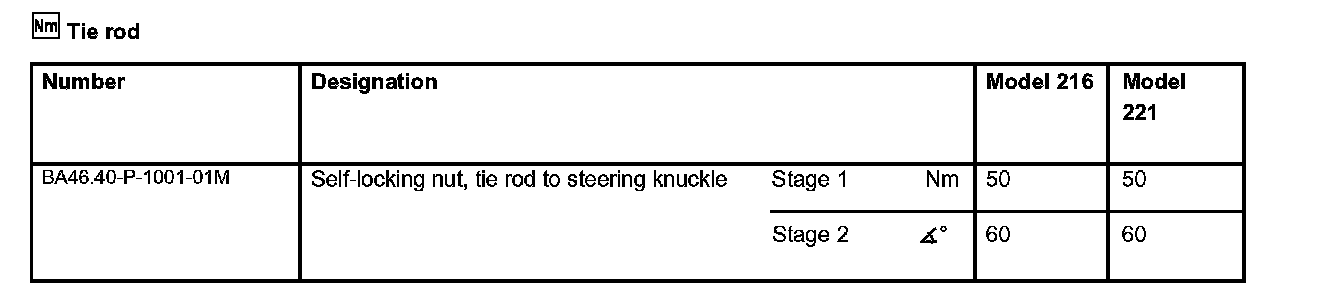

Tie rod:

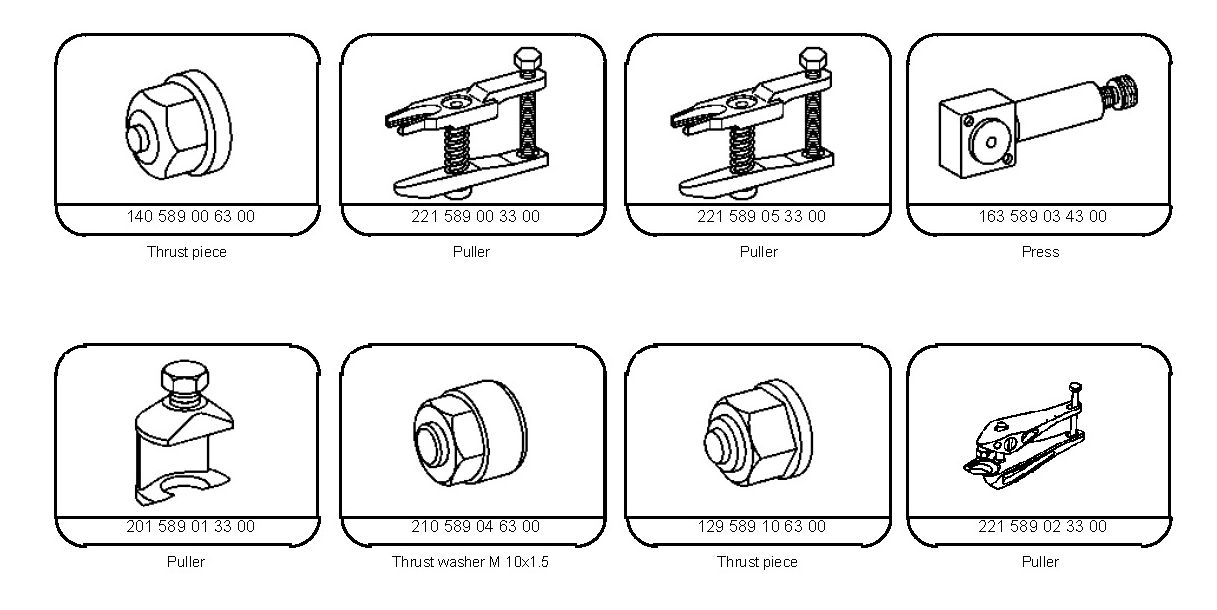

Special Tools:
