GF46.25-P-0002-02LEA Electrohydraulic Power Steering, Block Diagram

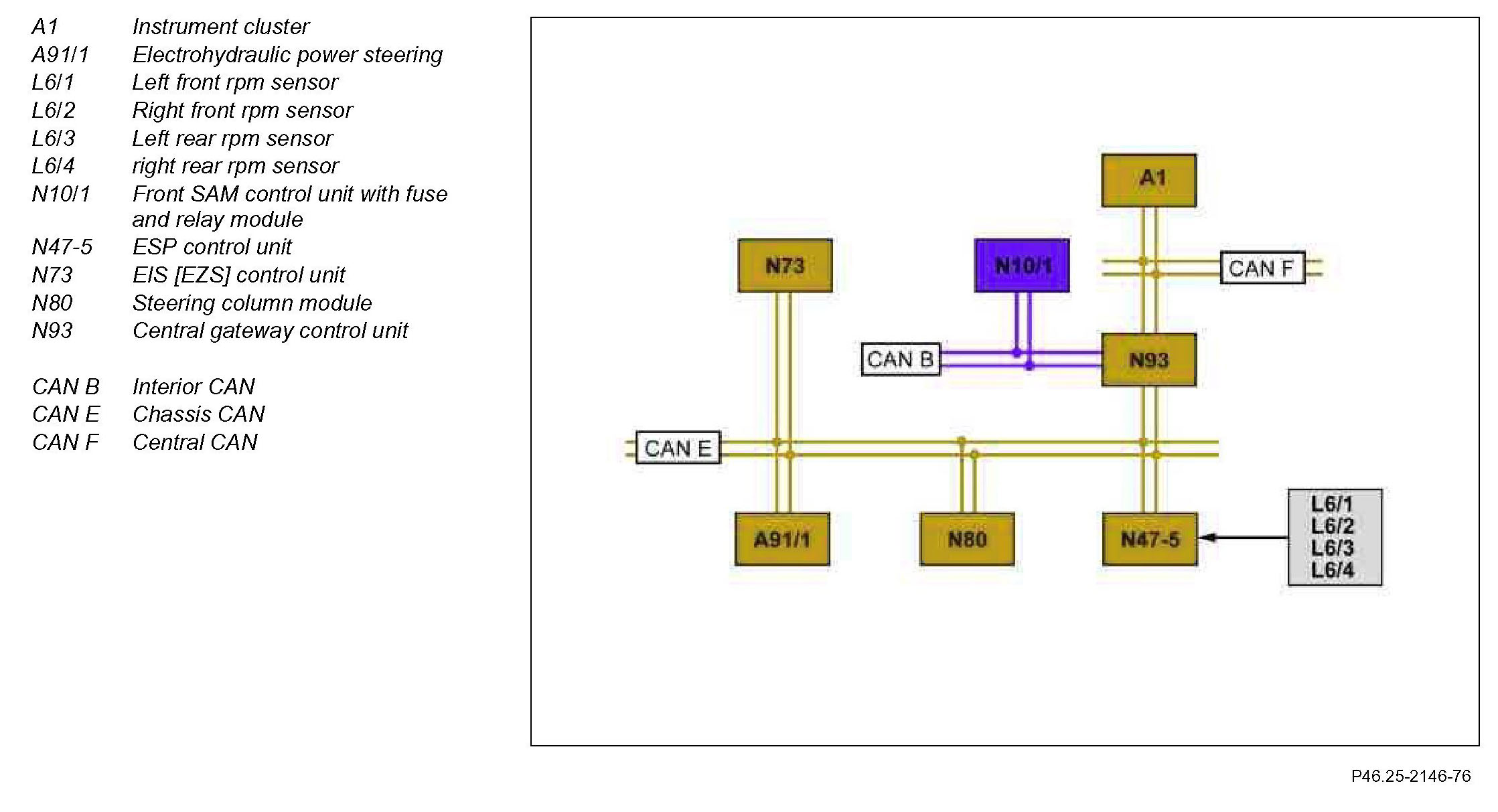

GF46.25-P-0002-02LEA Electrohydraulic power steering, block diagram
- as of model year 2010
