AR15.40-P-5012SXI Test Alternator Fuse

AR15.40-P-5012SXI Test Alternator Fuse
-ENGINES 642 in MODELS 212, 221, 218

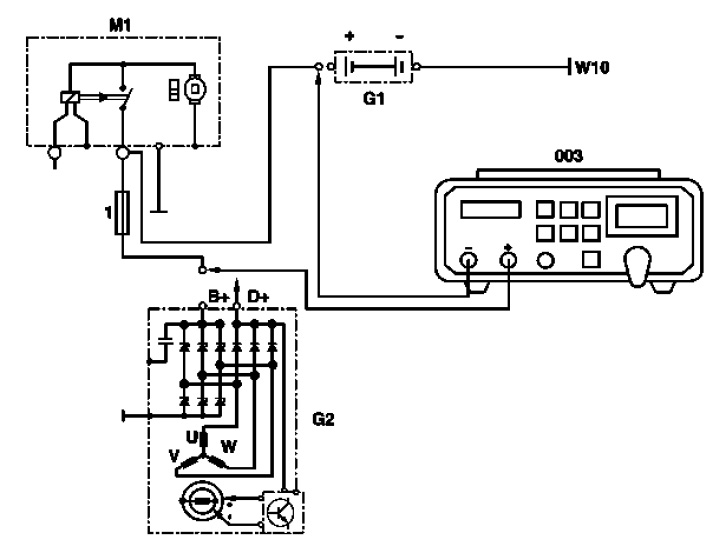

003 Multimeter
1 Prefuse (250 A)

G1 On-board electrical system battery
G2 ALT
M1 Starter
W10 Right front battery ground point
