S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Service and Repair
>>
Removal and Replacement
>>
AR54.10-P-0007SX Remove/Install Additional Battery
AR54.10-P-0007SX Remove/Install Additional Battery
AR54.10-P-0007SX Remove/install Additional Battery

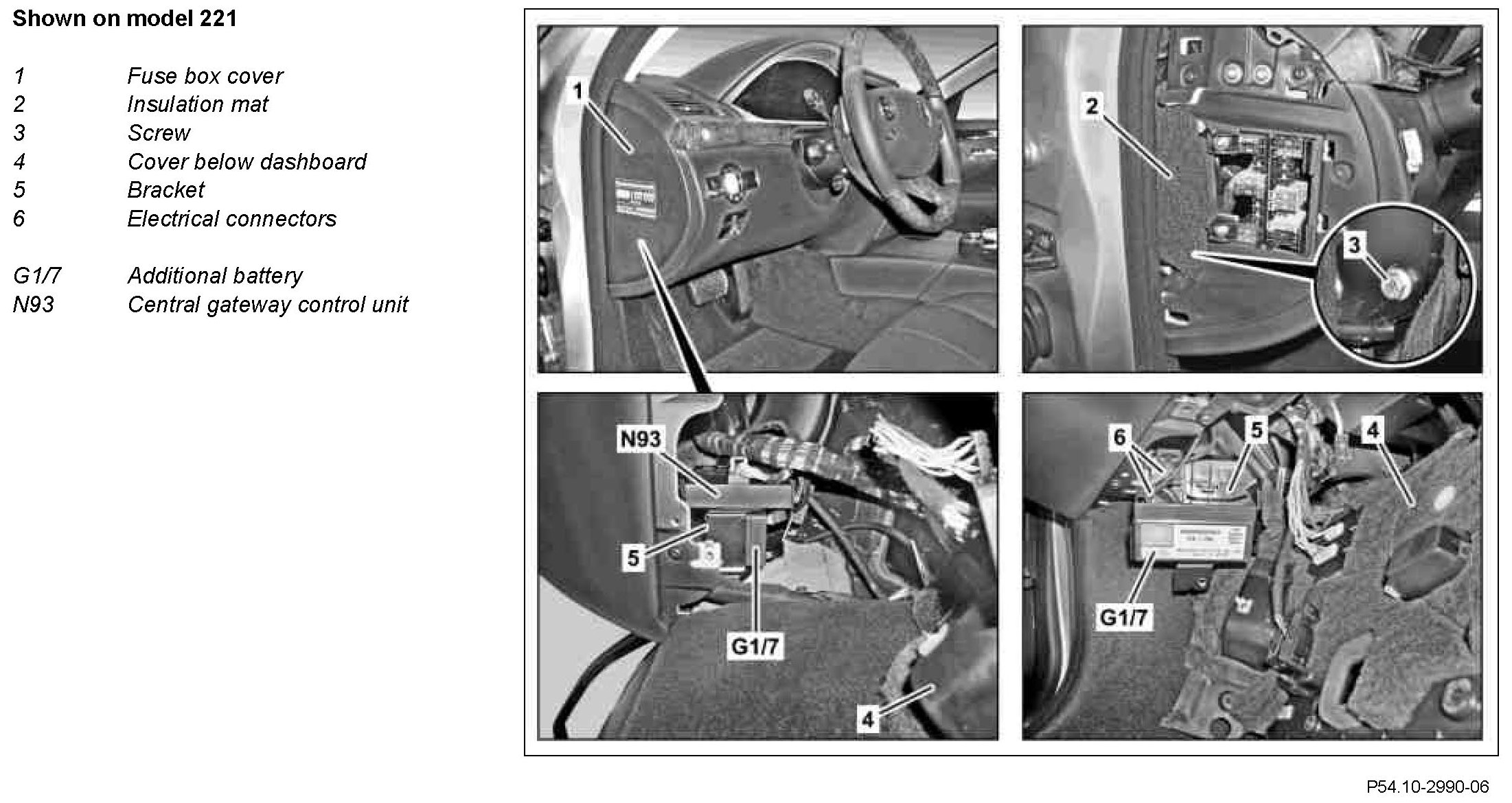

Component Identification:

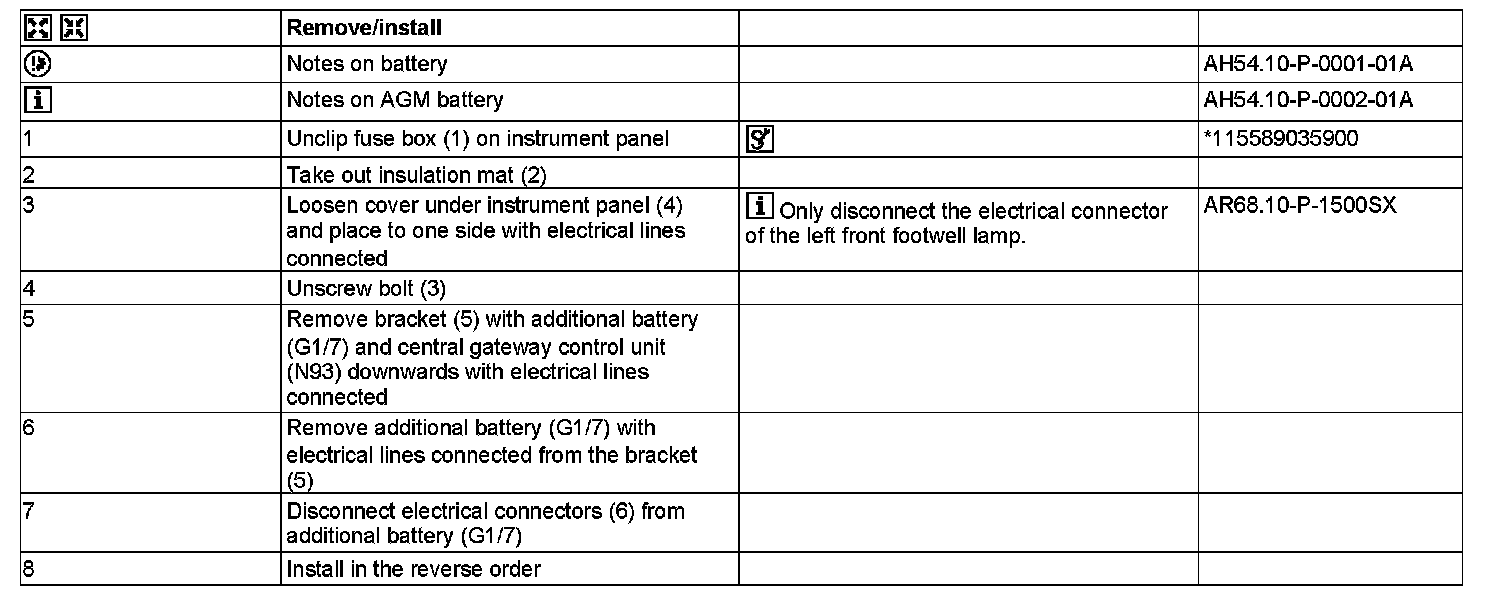

Steps 1-8:

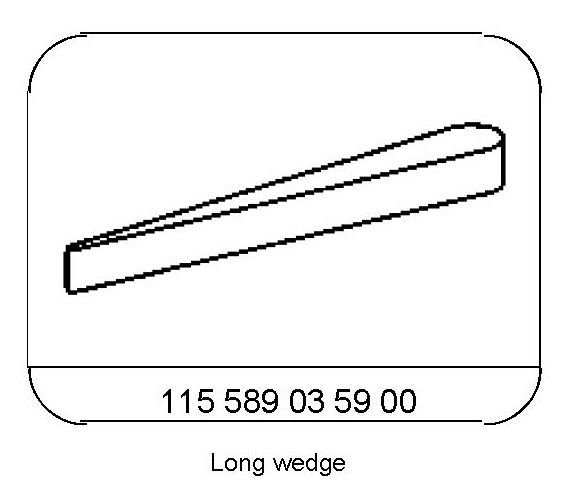

Special Tools:
