Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications >> BA33.30-P-1000-03G Front Axle Transmission

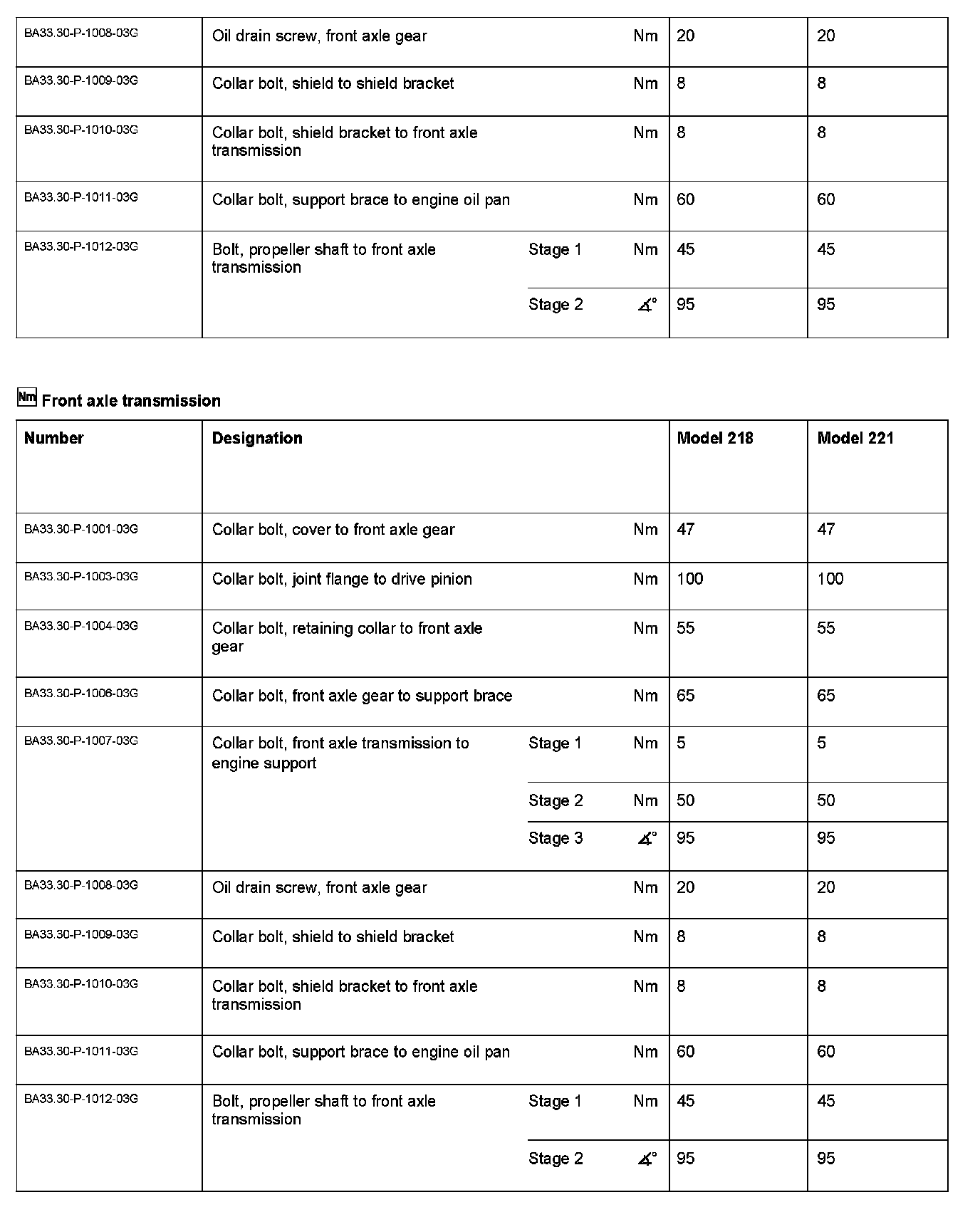

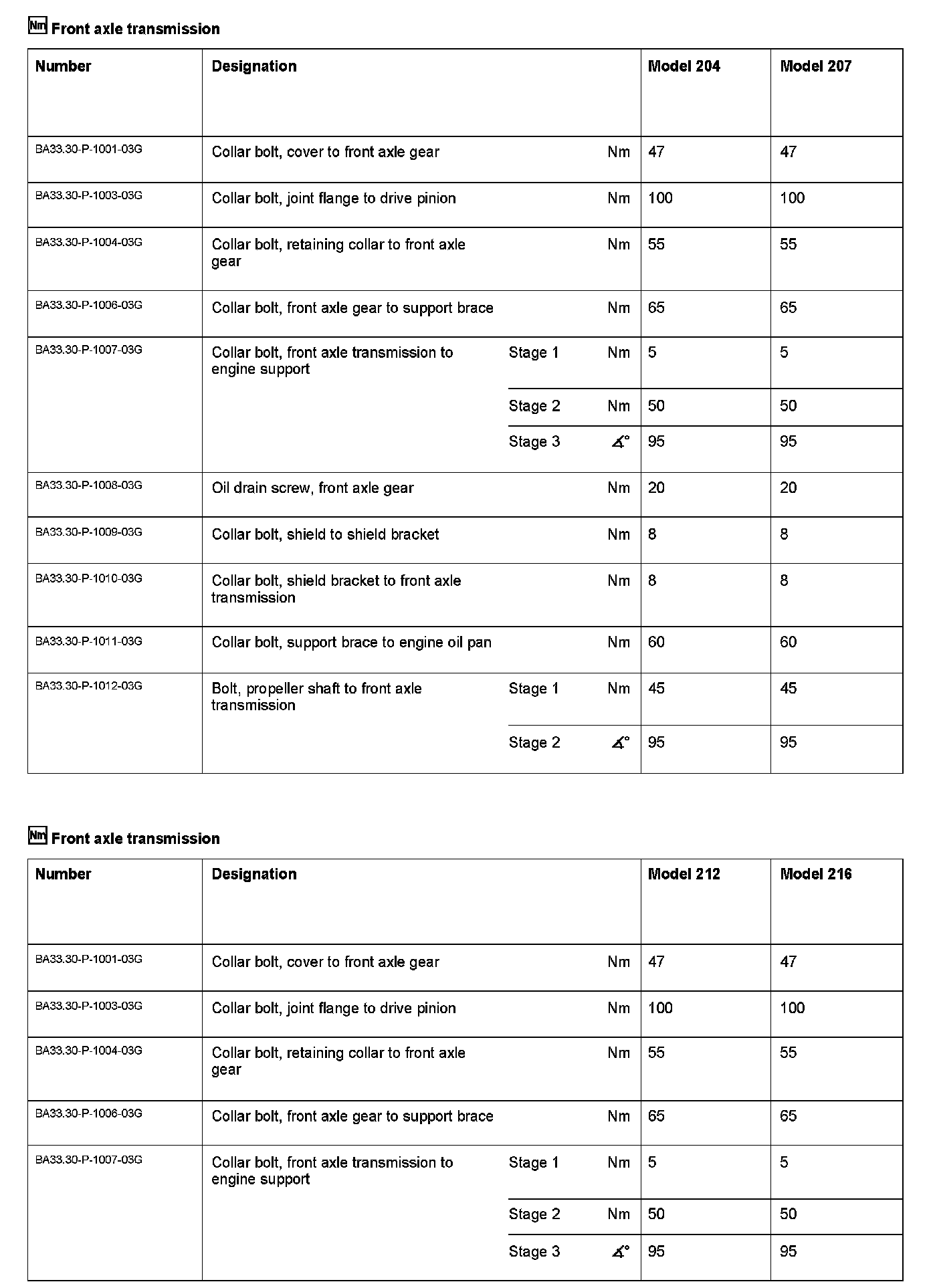

BA33.30-P-1000-03G Front Axle Transmission



BA33.30-P-1000-03G Front Axle Transmission
Models 204, 207, 212, 216, 218, 221
